Dynamic Comparison of Two Images

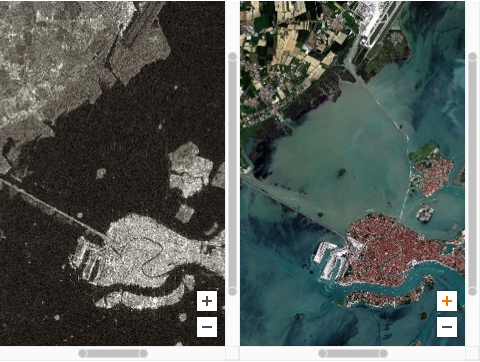

Compare two satellite images of Venice, Italy, using an interactive graphical user interface based on two coupled DynamicImage objects. The left display shows a radar image taken by the ESA satellite Sentinel-1 on May 10, 2016; the right is an optical photograph taken by Sentinel-2 on April 29, 2016.

In[1]:=
Click for copyable input

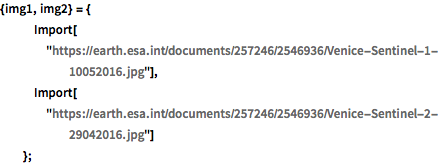

{img1, img2} = { Import[ "https://earth.esa.int/documents/257246/2546936/Venice-Sentinel-1-\ 10052016.jpg"], Import[ "https://earth.esa.int/documents/257246/2546936/Venice-Sentinel-2-\ 29042016.jpg"] };

Use click+drag on one of the images to pan, and Shift+click+drag vertically to zoom in or out. Move the scrollbar ends to change the cropping.

show complete Wolfram Language input
In[2]:=
Click for copyable input

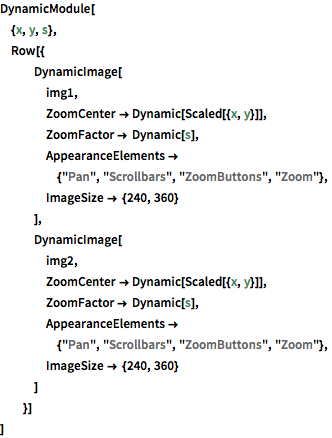

DynamicModule[ {x, y, s}, Row[{ DynamicImage[ img1, ZoomCenter -> Dynamic[Scaled[{x, y}]], ZoomFactor -> Dynamic[s], AppearanceElements -> {"Pan", "Scrollbars", "ZoomButtons", "Zoom"}, ImageSize -> {240, 360} ], DynamicImage[ img2, ZoomCenter -> Dynamic[Scaled[{x, y}]], ZoomFactor -> Dynamic[s], AppearanceElements -> {"Pan", "Scrollbars", "ZoomButtons", "Zoom"}, ImageSize -> {240, 360} ] }] ]
Play Animation
Stop Animation
