Wolfram Language

Visualization: Labels, Scales, Exclusions

Plot over Regions

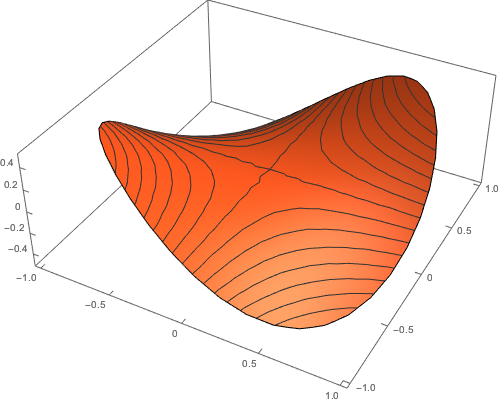

Plot a function over the unit disk.

In[1]:=
Click for copyable input
Plot3D[x y, {x, y} \[Element] Disk[{0, 0}, 1], ImageSize -> 500, PlotTheme -> "Web"]
Out[1]=

Construct a non-convex, disconnected region.

In[2]:=
Click for copyable input
region = RegionUnion[ RegionDifference[ RegionUnion[Disk[{0, 3}, 3], Disk[{3, 0}, 3], Disk[{0, -3}, 3], Disk[{-3, 0}, 3]], Disk[{0, 0}, 3]], Disk[{0, 0}, 2]];
In[3]:=
Click for copyable input
RegionPlot[region]
Out[3]=

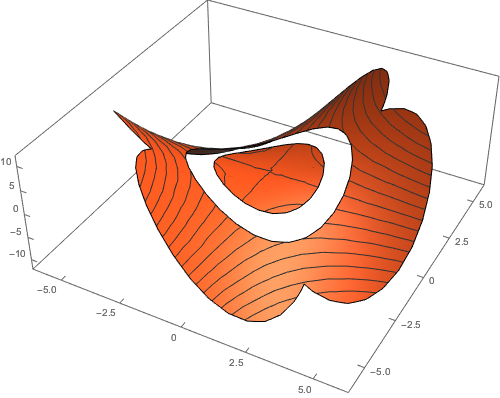

Plot over the region.

In[4]:=
Click for copyable input
Plot3D[x y, {x, y} \[Element] region, ImageSize -> 500, PlotTheme -> "Web"]
Out[4]=
