Using Higher-Order Functions and Closures to Structure Code: Flexible Plotting Routines

In[1]:=

X Needs["RLink`"] InstallR[]

The following creates a generic R wrapper that creates the plot and saves it to a file, and defines certain parameters for the resulting image.

In[2]:=

X mathematicaRPlotWrapper = RFunction["function(filename, plotfun){ pdf(filename) plotfun() dev.off() }"]

Out[2]=

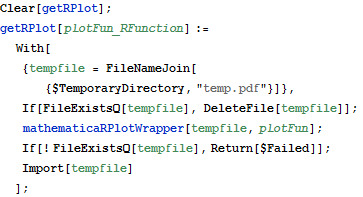

Create a Mathematica counterpart wrapper that automates file import and adds error-checking.

In[3]:=

X Clear[getRPlot]; getRPlot[plotFun_RFunction] := With[{tempfile = FileNameJoin[{$TemporaryDirectory, "temp.pdf"}]}, If[FileExistsQ[tempfile], DeleteFile[tempfile]]; mathematicaRPlotWrapper[tempfile, plotFun]; If[! FileExistsQ[tempfile], Return[$Failed]]; Import[tempfile] ];

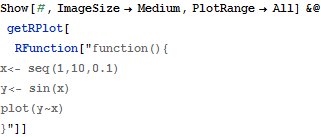

Display the result.

In[4]:=

X Show[#, ImageSize -> Medium, PlotRange -> All] &@ getRPlot[ RFunction["function(){ x<- seq(1,10,0.1) y<- sin(x) plot(y~x) }"]]

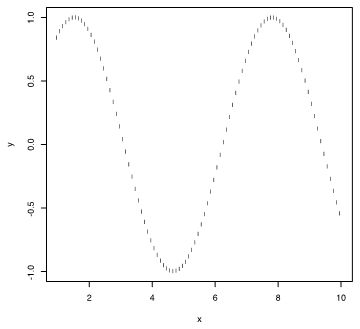

Out[4]=
