Demonstrate the Avalanche Effect of a Hash Function

Hash functions play a fundamental role in modern cryptography. An important and desirable feature of a good hash function is the non-correlation of input and output, or so-called "avalanche effect", which means that a small change in the input results in a significant change in the output, making it statistically indistinguishable from random. The Hash function can produce a variety of hashes and return them in multiple formats, making it easy to study hash properties.

A hash function demonstrates the avalanche effect if a single flipped bit in the input causes a change of, on average, half the bits of the output. This example examines if the "Keccak256" Hash function has this property.

Generate a list of 10,000 random 256-bit integers.

In[1]:=1

Define a function that flips a random bit in an integer.

In[2]:=2

Create a pair of integers that differ by one bit.

In[3]:=3
Out[3]=3

Flip a random bit for each integer.

In[4]:=4

Check that the HammingDistance is exactly 1 for each pair of integers.

In[5]:=5
Out[5]=5

To do hashing on the actual bits of the integers, you need to turn each integer into a ByteArray.

In[6]:=6

Hash the byte arrays with the "Keccak256" hash.

In[7]:=7

Compute the Hamming distance for each pair of integers.

In[8]:=8

Compute the mean of the hashed Hamming distances.

In[9]:=9
Out[9]=9

Note that the mean value of 128 here is the same as if you were comparing random integer pairs, showing that the "Keccak256" scrambles its inputs very effectively.

In[10]:=10
Out[10]=10

Compute the standard deviation.

In[11]:=11
Out[11]=11

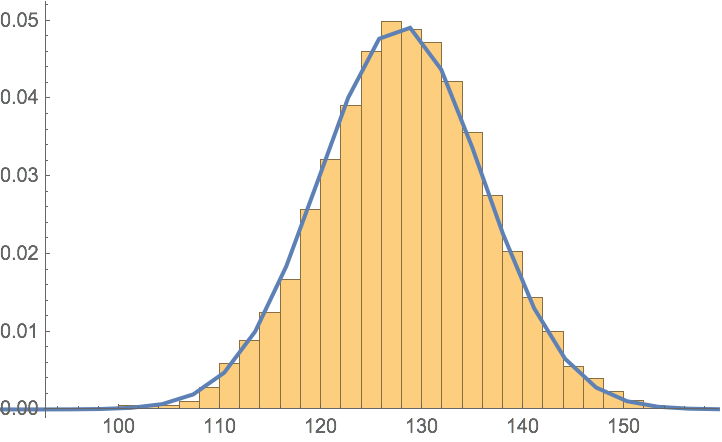

Make a histogram of the distances and the corresponding PDF of the normal distribution with the computed mean and standard deviation.

In[12]:=12
Out[12]=12
