Analise o ciclo Stirling com materiais do mundo real
Examine o ciclo Stirling para 10 mols de ar.
Out[1]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_13.png) |

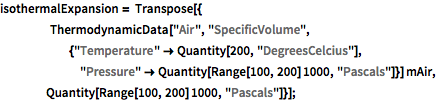

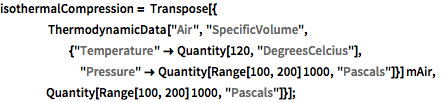

Calcule a expansão isotérmica e as curvas de compressão a 200 °C e a 100 °C, respectivamente.

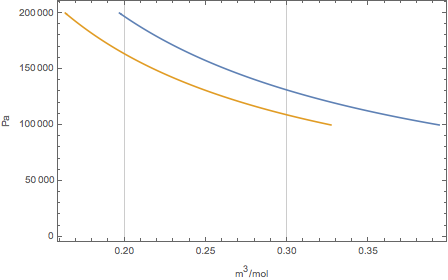

Crie o diagrama
.
Out[4]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_14.png) |

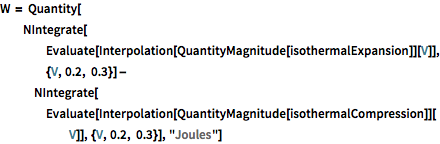

Calcule o trabalho mecânico através de
.
Out[5]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_15.png) |
Encontre as pressões máximas e mínimas para a expansão e compressão.
Out[6]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_16.png) |
Out[7]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_17.png) |

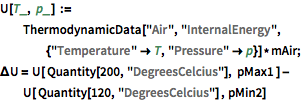

Calcule a variação da energia interna.
Out[8]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_18.png) |
Out[8]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_19.png) |
Usando o trabalho e a mudança na energia interna, calcule a eficiência.
Out[9]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_20.png) |
Compare com a máxima eficiência Carnot possível.
Out[10]= | ![](HTMLImages.pt-br/analyze-the-stirling-cycle-with-real-world-materia/O_21.png) |
