Use Wrappers to Annotate Events

Use data wrappers to add labels directly to the data corresponding to an event.

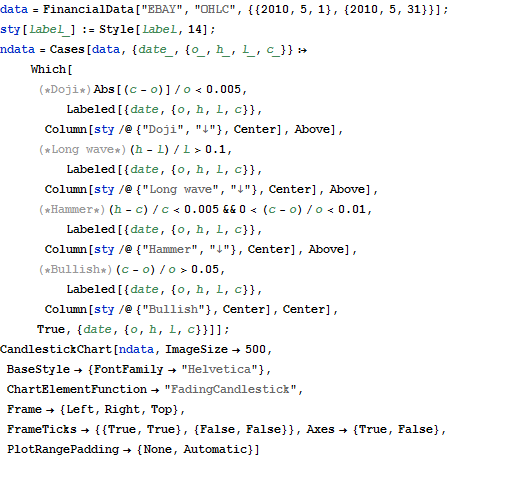

In[1]:=

data = FinancialData["EBAY", "OHLC", {{2010, 5, 1}, {2010, 5, 31}}];

sty[label_] := Style[label, 14];

ndata = Cases[data, {date_, {o_, h_, l_, c_}} :>

Which[

(*Doji*)Abs[(c - o)]/o < 0.005,

Labeled[{date, {o, h, l, c}},

Column[sty /@ {"Doji", "\[DownArrow]"}, Center], Above],

(*Long wave*)(h - l)/l > 0.1,

Labeled[{date, {o, h, l, c}},

Column[sty /@ {"Long wave", "\[DownArrow]"}, Center], Above],

(*Hammer*)(h - c)/c < 0.005 && 0 < (c - o)/o < 0.01,

Labeled[{date, {o, h, l, c}},

Column[sty /@ {"Hammer", "\[DownArrow]"}, Center], Above],

(*Bullish*)(c - o)/o > 0.05,

Labeled[{date, {o, h, l, c}},

Column[sty /@ {"Bullish"}, Center], Center],

True, {date, {o, h, l, c}}]];

CandlestickChart[ndata, ImageSize -> 500,

BaseStyle -> {FontFamily -> "Helvetica"},

ChartElementFunction -> "FadingCandlestick",

Frame -> {Left, Right, Top},

FrameTicks -> {{True, True}, {False, False}}, Axes -> {True, False},

PlotRangePadding -> {None, Automatic}]

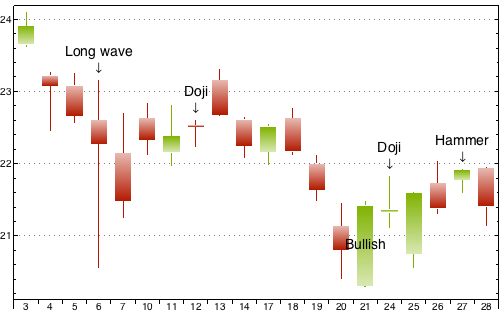

Out[1]=
