Study Properties of an Undirected Graph

Mathematica 8 provides a broad range of functions for computing properties of undirected graphs.

In[1]:=

Click for copyable input

X

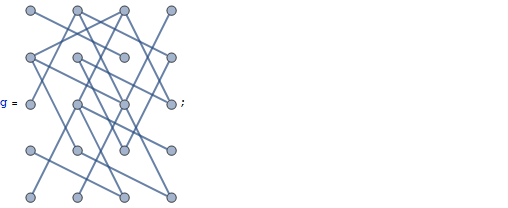

g = \!\(\*

GraphicsBox[

NamespaceBox["NetworkGraphics",

DynamicModuleBox[{Typeset`graph = HoldComplete[

Graph[{1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18,

19, 20}, {

Null, {{13, 16}, {4, 13}, {1, 8}, {4, 7}, {12, 19}, {4,

15}, {8, 15}, {7, 16}, {13, 20}, {10, 13}, {3, 10}, {10,

19}, {8, 17}, {9, 18}, {15, 18}, {6, 13}, {8, 11}, {9,

12}, {5, 14}, {2, 11}}}, {EdgeStyle -> {

Thickness[Large]}, VertexSize -> {Medium},

VertexCoordinates -> CompressedData["

1:eJxTTMoPSmViYGAQAWIQjR98sEcTcEDlcqDxBRyw64Px0WkGNPUcaHyYeej2

outjQFfngOY+B1Tz0N2Nbi+6Pg4ctIADALZTEnE=

"]}]], Typeset`boxes = GraphicsGroupBox[{{

Directive[

Hue[0.6, 0.2, 0.8],

EdgeForm[

Directive[

GrayLevel[0],

Opacity[0.7]]]],

TagBox[

DiskBox[{0., 0.}, 0.1], "DynamicName", BoxID -> "VertexID$1"],

TagBox[

DiskBox[{0., 1.}, 0.1], "DynamicName", BoxID -> "VertexID$2"],

TagBox[

DiskBox[{0., 2.}, 0.1], "DynamicName", BoxID -> "VertexID$3"],

TagBox[

DiskBox[{0., 3.}, 0.1], "DynamicName", BoxID -> "VertexID$4"],

TagBox[

DiskBox[{0., 4.}, 0.1], "DynamicName", BoxID -> "VertexID$5"],

TagBox[

DiskBox[{1., 0.}, 0.1], "DynamicName", BoxID -> "VertexID$6"],

TagBox[

DiskBox[{1., 1.}, 0.1], "DynamicName", BoxID -> "VertexID$7"],

TagBox[

DiskBox[{1., 2.}, 0.1], "DynamicName", BoxID -> "VertexID$8"],

TagBox[

DiskBox[{1., 3.}, 0.1], "DynamicName", BoxID -> "VertexID$9"],

TagBox[

DiskBox[{1., 4.}, 0.1], "DynamicName", BoxID -> "VertexID$10"],

TagBox[

DiskBox[{2., 0.}, 0.1], "DynamicName", BoxID -> "VertexID$11"],

TagBox[

DiskBox[{2., 1.}, 0.1], "DynamicName", BoxID -> "VertexID$12"],

TagBox[

DiskBox[{2., 2.}, 0.1], "DynamicName", BoxID -> "VertexID$13"],

TagBox[

DiskBox[{2., 3.}, 0.1], "DynamicName", BoxID -> "VertexID$14"],

TagBox[

DiskBox[{2., 4.}, 0.1], "DynamicName", BoxID -> "VertexID$15"],

TagBox[

DiskBox[{3., 0.}, 0.1], "DynamicName", BoxID -> "VertexID$16"],

TagBox[

DiskBox[{3., 1.}, 0.1], "DynamicName", BoxID -> "VertexID$17"],

TagBox[

DiskBox[{3., 2.}, 0.1], "DynamicName", BoxID -> "VertexID$18"],

TagBox[

DiskBox[{3., 3.}, 0.1], "DynamicName", BoxID -> "VertexID$19"],

TagBox[

DiskBox[{3., 4.}, 0.1], "DynamicName", BoxID -> "VertexID$20"]}, {

Directive[

Opacity[0.7],

Hue[0.6, 0.7, 0.5]],

Thickness[Large],

StyleBox[

LineBox[{

DynamicLocation["VertexID$1", Automatic, Center],

DynamicLocation["VertexID$8", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$2", Automatic, Center],

DynamicLocation["VertexID$11", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$3", Automatic, Center],

DynamicLocation["VertexID$10", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$4", Automatic, Center],

DynamicLocation["VertexID$13", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$4", Automatic, Center],

DynamicLocation["VertexID$7", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$4", Automatic, Center],

DynamicLocation["VertexID$15", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$5", Automatic, Center],

DynamicLocation["VertexID$14", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$6", Automatic, Center],

DynamicLocation["VertexID$13", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$7", Automatic, Center],

DynamicLocation["VertexID$16", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$8", Automatic, Center],

DynamicLocation["VertexID$15", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$8", Automatic, Center],

DynamicLocation["VertexID$17", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$8", Automatic, Center],

DynamicLocation["VertexID$11", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$9", Automatic, Center],

DynamicLocation["VertexID$18", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$9", Automatic, Center],

DynamicLocation["VertexID$12", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$10", Automatic, Center],

DynamicLocation["VertexID$13", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$10", Automatic, Center],

DynamicLocation["VertexID$19", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$12", Automatic, Center],

DynamicLocation["VertexID$19", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$13", Automatic, Center],

DynamicLocation["VertexID$16", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$13", Automatic, Center],

DynamicLocation["VertexID$20", Automatic, Center]}],

Thickness[Large], StripOnInput -> False],

StyleBox[

LineBox[{

DynamicLocation["VertexID$15", Automatic, Center],

DynamicLocation["VertexID$18", Automatic, Center]}],

Thickness[Large], StripOnInput -> False]}}]},

DynamicBox[GraphComputation`NetworkGraphicsBox[

1, Typeset`graph, Typeset`boxes], {

CachedValue :> Typeset`boxes, SingleEvaluation -> True,

SynchronousUpdating -> False, TrackedSymbols :> {}},

ImageSizeCache->{{2.1281823783117684`,

154.2809365372767}, {-101.99694491682071`,

97.07854491682069}}]]],

DefaultBaseStyle->{

"NetworkGraphics",

FrontEnd`GraphicsHighlightColor -> Hue[0.8, 1., 0.6]},

FrameTicks->None,

ImageSize->{157.40911891558844`, Automatic}]\);

In[2]:=

X

In[3]:=

Click for copyable input

X

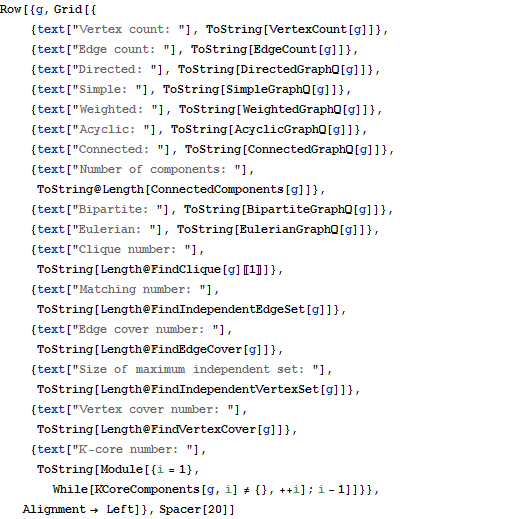

Row[{g, Grid[{

{text["Vertex count: "],

ToString[VertexCount[g]]}, {text["Edge count: "],

ToString[EdgeCount[g]]},

{text["Directed: "],

ToString[DirectedGraphQ[g]]}, {text["Simple: "],

ToString[SimpleGraphQ[g]]}, {text["Weighted: "],

ToString[WeightedGraphQ[g]]}, {text["Acyclic: "],

ToString[AcyclicGraphQ[g]]},

{text["Connected: "], ToString[ConnectedGraphQ[g]]},

{text["Number of components: "],

ToString@Length[ConnectedComponents[g]]},

{text["Bipartite: "],

ToString[BipartiteGraphQ[g]]}, {text["Eulerian: "],

ToString[EulerianGraphQ[g]]}, {text["Clique number: "],

ToString[Length@FindClique[g][[1]]]},

{text["Matching number: "],

ToString[Length@FindIndependentEdgeSet[g]]},

{text["Edge cover number: "], ToString[Length@FindEdgeCover[g]]},

{text["Size of maximum independent set: "],

ToString[Length@FindIndependentVertexSet[g]]},

{text["Vertex cover number: "],

ToString[Length@FindVertexCover[g]]},

{text["K-core number: "],

ToString[

Module[{i = 1}, While[KCoreComponents[g, i] != {}, ++i];

i - 1]]}}, Alignment -> Left]}, Spacer[20]]

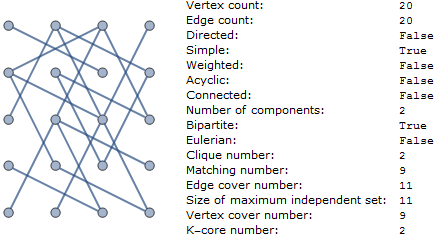

Out[3]=
