Seven-Link Mechanical System

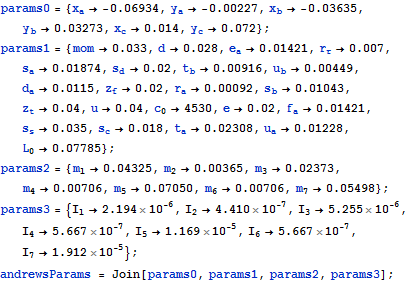

In[1]:=

params0 = {Subscript[x, a] -> -0.06934, Subscript[y, a] -> -0.00227,
   Subscript[x, b] -> -0.03635, Subscript[y, b] -> 0.03273,
   Subscript[x, c] -> 0.014, Subscript[y, c] -> 0.072};
params1 = {mom -> 0.033, d -> 0.028, Subscript[e, a] -> 0.01421,
   Subscript[r, r] -> 0.007, Subscript[s, a] -> 0.01874,
   Subscript[s, d] -> 0.02, Subscript[t, b] -> 0.00916,
   Subscript[u, b] -> 0.00449, Subscript[d, a] -> 0.0115,
   Subscript[z, f] -> 0.02, Subscript[r, a] -> 0.00092,
   Subscript[s, b] -> 0.01043, Subscript[z, t] -> 0.04, u -> 0.04,
   Subscript[c, 0] -> 4530, e -> 0.02, Subscript[f, a] -> 0.01421,
   Subscript[s, s] -> 0.035, Subscript[s, c] -> 0.018,
   Subscript[t, a] -> 0.02308, Subscript[u, a] -> 0.01228,
   Subscript[L, 0] -> 0.07785};
params2 = {Subscript[m, 1] -> 0.04325, Subscript[m, 2] -> 0.00365,
   Subscript[m, 3] -> 0.02373, Subscript[m, 4] -> 0.00706,
   Subscript[m, 5] -> 0.07050, Subscript[m, 6] -> 0.00706,
   Subscript[m, 7] -> 0.05498};
params3 = {Subscript[I, 1] -> 2.194 10^-6,
   Subscript[I, 2] -> 4.410 10^-7, Subscript[I, 3] -> 5.255 10^-6,
   Subscript[I, 4] -> 5.667 10^-7, Subscript[I, 5] -> 1.169 10^-5,
   Subscript[I, 6] -> 5.667 10^-7, Subscript[I, 7] -> 1.912 10^-5};
andrewsParams = Join[params0, params1, params2, params3];

In[10]:=

In[11]:=

In[12]:=

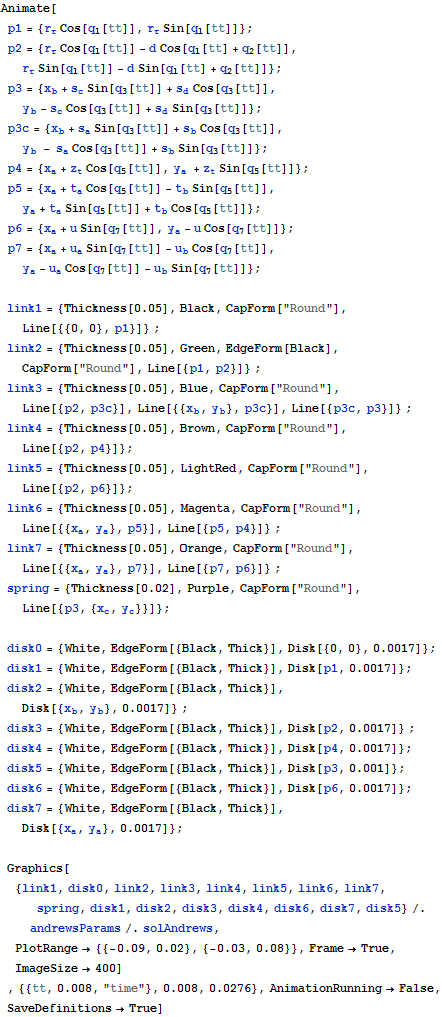

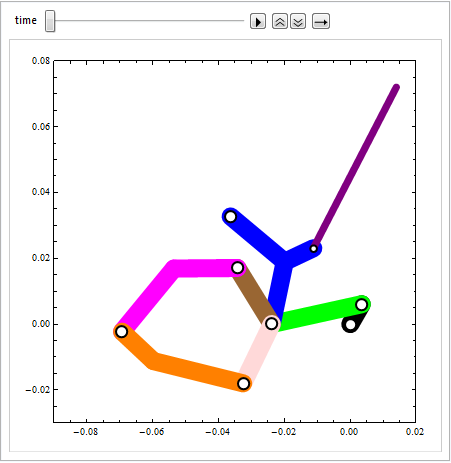

Animate[
 p1 = {Subscript[r, r] Cos[Subscript[q, 1][tt]],
   Subscript[r, r] Sin[Subscript[q, 1][tt]]};
 p2 = {Subscript[r, r] Cos[Subscript[q, 1][tt]] -
    d Cos[Subscript[q, 1][tt] + Subscript[q, 2][tt]],
   Subscript[r, r] Sin[Subscript[q, 1][tt]] -
    d Sin[Subscript[q, 1][tt] + Subscript[q, 2][tt]]};
 p3 = {Subscript[x, b] + Subscript[s, c] Sin[Subscript[q, 3][tt]] +
    Subscript[s, d] Cos[Subscript[q, 3][tt]],
   Subscript[y, b] - Subscript[s, c] Cos[Subscript[q, 3][tt]] +
    Subscript[s, d] Sin[Subscript[q, 3][tt]]};
 p3c = {Subscript[x, b] + Subscript[s, a] Sin[Subscript[q, 3][tt]] +
    Subscript[s, b] Cos[Subscript[q, 3][tt]],
   Subscript[y, b] - Subscript[s, a] Cos[Subscript[q, 3][tt]] +
    Subscript[s, b] Sin[Subscript[q, 3][tt]]};
 p4 = {Subscript[x, a] + Subscript[z, t] Cos[Subscript[q, 5][tt]],
   Subscript[y, a] + Subscript[z, t] Sin[Subscript[q, 5][tt]]};
 p5 = {Subscript[x, a] + Subscript[t, a] Cos[Subscript[q, 5][tt]] -
    Subscript[t, b] Sin[Subscript[q, 5][tt]],
   Subscript[y, a] + Subscript[t, a] Sin[Subscript[q, 5][tt]] +
    Subscript[t, b] Cos[Subscript[q, 5][tt]]};
 p6 = {Subscript[x, a] + u Sin[Subscript[q, 7][tt]],
   Subscript[y, a] - u Cos[Subscript[q, 7][tt]]};
 p7 = {Subscript[x, a] + Subscript[u, a] Sin[Subscript[q, 7][tt]] -
    Subscript[u, b] Cos[Subscript[q, 7][tt]],
   Subscript[y, a] - Subscript[u, a] Cos[Subscript[q, 7][tt]] -
    Subscript[u, b] Sin[Subscript[q, 7][tt]]};

 link1 = {Thickness[0.05], Black, CapForm["Round"],
   Line[{{0, 0}, p1}]} ;
 link2 = {Thickness[0.05], Green, EdgeForm[Black], CapForm["Round"],
   Line[{p1, p2}]} ;
 link3 = {Thickness[0.05], Blue, CapForm["Round"], Line[{p2, p3c}],
   Line[{{Subscript[x, b], Subscript[y, b]}, p3c}], Line[{p3c, p3}]} ;
 link4 = {Thickness[0.05], Brown, CapForm["Round"], Line[{p2, p4}]};
 link5 = {Thickness[0.05], LightRed, CapForm["Round"], Line[{p2, p6}]};
 link6 = {Thickness[0.05], Magenta, CapForm["Round"],
   Line[{{Subscript[x, a], Subscript[y, a]}, p5}], Line[{p5, p4}]} ;
 link7 = {Thickness[0.05], Orange, CapForm["Round"],
   Line[{{Subscript[x, a], Subscript[y, a]}, p7}], Line[{p7, p6}]} ;
 spring = {Thickness[0.02], Purple, CapForm["Round"],
   Line[{p3, {Subscript[x, c], Subscript[y, c]}}]};

 disk0 = {White, EdgeForm[{Black, Thick}], Disk[{0, 0}, 0.0017]};
 disk1 = {White, EdgeForm[{Black, Thick}], Disk[p1, 0.0017]};
 disk2 = {White, EdgeForm[{Black, Thick}],
   Disk[{Subscript[x, b], Subscript[y, b]}, 0.0017]} ;
 disk3 = {White, EdgeForm[{Black, Thick}], Disk[p2, 0.0017]} ;
 disk4 = {White, EdgeForm[{Black, Thick}], Disk[p4, 0.0017]};
 disk5 = {White, EdgeForm[{Black, Thick}], Disk[p3, 0.001]};
 disk6 = {White, EdgeForm[{Black, Thick}], Disk[p6, 0.0017]};
 disk7 = {White, EdgeForm[{Black, Thick}],
   Disk[{Subscript[x, a], Subscript[y, a]}, 0.0017]};

 Graphics[{link1, disk0, link2, link3, link4, link5, link6, link7,
     spring, disk1, disk2, disk3, disk4, disk6, disk7, disk5} /.
    andrewsParams /. solAndrews,
  PlotRange -> {{-0.09, 0.02}, {-0.03, 0.08}}, Frame -> True,
  ImageSize -> 400]
 , {{tt, 0.008, "time"}, 0.008, 0.0276}, AnimationRunning -> False,
 SaveDefinitions -> True]

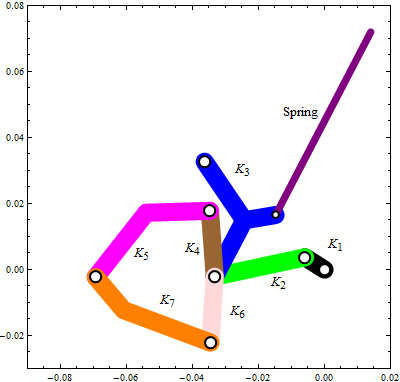

Model Andrew's squeezer mechanism.

X
\!\(\* GraphicsBox[{ {GrayLevel[0], Thickness[0.05], CapForm["Round"], LineBox[{{0, 0}, {-0.005914617198716847, 0.0037439689358544207`}}]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{0, 0}, 0.0017]}, {RGBColor[0, 1, 0], Thickness[0.05], CapForm["Round"], EdgeForm[ GrayLevel[0]], LineBox[{{-0.005914617198716847, 0.0037439689358544207`}, {-0.0332902633210181, \ -0.002135996998275848}}]}, {RGBColor[0, 0, 1], Thickness[0.05], CapForm["Round"], LineBox[{{-0.0332902633210181, -0.002135996998275848}, \ {-0.024321660411086465`, 0.014973549151540014`}}], LineBox[{{-0.03635, 0.03273}, {-0.024321660411086465`, 0.014973549151540014`}}], LineBox[{{-0.024321660411086465`, 0.014973549151540014`}, {-0.014852991278625131`, 0.016547335941411476`}}]}, {RGBColor[0.6, 0.4, 0.2], Thickness[0.05], CapForm["Round"], LineBox[{{-0.0332902633210181, -0.002135996998275848}, \ {-0.034745852270100214`, 0.01781095970918396}}]}, {RGBColor[1, 0.85, 0.85], Thickness[0.05], CapForm["Round"], LineBox[{{-0.0332902633210181, -0.002135996998275848}, \ {-0.034597524767024844`, -0.022093229168985255`}}]}, {RGBColor[1, 0, 1], Thickness[0.05], CapForm["Round"], LineBox[{{-0.06934, -0.00227}, {-0.053977716533250945`, 0.017238773582346194`}}], LineBox[{{-0.053977716533250945`, 0.017238773582346194`}, {-0.034745852270100214`, 0.01781095970918396}}]}, {RGBColor[1, 0.5, 0], Thickness[0.05], CapForm["Round"], LineBox[{{-0.06934, -0.00227}, {-0.06089921757769523, \ -0.012255574199779934`}}], LineBox[{{-0.06089921757769523, -0.012255574199779934`}, \ {-0.034597524767024844`, -0.022093229168985255`}}]}, {RGBColor[0.5, 0, 0.5], Thickness[0.02], CapForm["Round"], LineBox[{{-0.014852991278625131`, 0.016547335941411476`}, {0.014, 0.072}}]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.005914617198716847, 0.0037439689358544207`}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.03635, 0.03273}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.0332902633210181, -0.002135996998275848}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.034745852270100214`, 0.01781095970918396}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.034597524767024844`, -0.022093229168985255`}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.06934, -0.00227}, 0.0017]}, {GrayLevel[1], EdgeForm[{GrayLevel[0], Thickness[Large]}], DiskBox[{-0.014852991278625131`, 0.016547335941411476`}, 0.001]}, InsetBox[ StyleBox[Subscript[K, 5], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.0576858428030303, 0.003536931818181821}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 6], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.02863636363636364, -0.014090909090909085`}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 7], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.049741950757575745`, -0.010696022727272728`}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Spring, Magnification->1.25, Background->GrayLevel[ 1.]], {-0.012227746212121207`, 0.046103219696969705`}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 1], Magnification->1.25, Background->GrayLevel[ 1.]], {0.0010404829545454658`, 0.00624053030303031}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 3], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.02723484848484846, 0.028982007575757578`}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 4], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.042205255681818155`, 0.005130208333333337}, { Left, Baseline}, Alignment->{Left, Top}], InsetBox[ StyleBox[Subscript[K, 2], Magnification->1.25, Background->GrayLevel[ 1.]], {-0.01634351325757573, -0.0053645833333333184`}, { Left, Baseline}, Alignment->{Left, Top}]}, Frame->True, ImagePadding->{{27., 10.}, {14., 5.}}, ImageSize->400, PlotRange->{{-0.09, 0.02}, {-0.03, 0.08}}, PlotRangePadding->Automatic]\)

The system consists of seven links of various shapes, with one of the links attached to a spring. The shortest link is driven by a motor, which in turn moves all the other links.

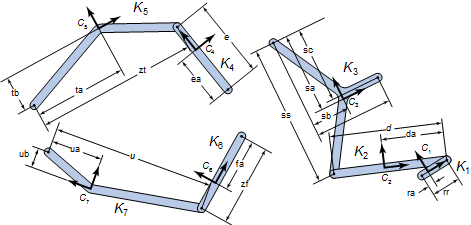

The dimensions associated with the various links are shown below. The seven links are labeled -. The notation for the parameters used in the model and their description can be found in the following reference.

E. Hairer and G. Wanner, Solving Ordinary Differential Equations II, Stiff and Differential-Algebraic Problems, 2nd ed., Springer Series in Computational Mathematics, Vol. 14, New York: Springer, 1996.

X
\!\(\* GraphicsBox[ {Thickness[0.002012072434607646], {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, { 0, 1, 0}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGIpIGYCYpkD0QqOlc4OJ57aL7mvFu/wRf5Sfjy7s8OG 7tsZDI/jHIzKdRXlU5wcGEDgQJzDnmzOnwv2O8L5ba8Dd8jZIvhJIUHqC3Y6 OHT0Pfkkfy3OYdLpeo/9vg4Qc5njHSRkTz6132LnEANSlxnvcCeDIb+xxA6i jz/B4QnQGfvYHBykeB/oTvBJcFg2+4jChkkRDnKtQIu0shzubG2pucAc6dAF Mj8vy+HHoZRVCR8iHZYo7/zTvizLge2DmEfAgiiHT5d8kwRWZEHcFZLusM2h 6dHxK1kOaofalocvQvAXgfQ9SnfoELt57vvULIf3UU52Lx6nOzyqElnn7p7l EJVifd//abpDyplY7xPfMx3aQeqWpjvUJBqFGmzLdJhY99uqICzdQU9rpfCF LZkOCn+/lT74EOWgAHJvR6ZDU6Dn3IZVUQ5CS/ceFAfyZUAGekc5BKyfktpR mOmw5UTZvvlyUQ4yIP+GAeXR4gMA4ke2FQ== "]]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, { 0, 1, 0}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGIpIGYCYpkD0QqOlc4OJ57aL7mvFu/wRf5Sfjy7s8OG 7tsZDI/jHIzKdRXlU5wcGEDgQJzDnmzOnwv2O8L5ba8Dd8jZIvhJIUHqC3Y6 OHT0Pfkkfy3OYdLpeo/9vg4Qc5njHSRkTz6132LnEANSlxnvcCeDIb+xxA6i jz/B4QnQGfvYHBykeB/oTvBJcFg2+4jChkkRDnKtQIu0shzubG2pucAc6dAF Mj8vy+HHoZRVCR8iHZYo7/zTvizLge2DmEfAgiiHT5d8kwRWZEHcFZLusM2h 6dHxK1kOaofalocvQvAXgfQ9SnfoELt57vvULIf3UU52Lx6nOzyqElnn7p7l EJVifd//abpDyplY7xPfMx3aQeqWpjvUJBqFGmzLdJhY99uqICzdQU9rpfCF LZkOCn+/lT74EOWgAHJvR6ZDU6Dn3IZVUQ5CS/ceFAfyZUAGekc5BKyfktpR mOmw5UTZvvlyUQ4yIP+GAeXR4gMA4ke2FQ== "], CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{0, 2, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, { 0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGJVIGYC4tePzKQOeJQ5nPA273Q08HZoE7t57vv9Moe+ Q181YrITHEDc4KdlDikCEZZbDiU4MO1hFRLhKnfQy1vMuEcz0SExJEh9gWG5 A8cHMY+AgEQHA62VwhdYKx2EXm5fzyyZ7BA3w0e0R7PSoaxQmveBdbJDjILj x2SLSocIkMJJyRD71CodChpZjvbfTHZ4vk71SbNopcOZWO8T7IopDlc5M5Ry XlU4/Dn97uRhuxSHpbOPKGw4VuGw40/7l9vSKQ6isief2n8rc3g3z0bnSliS w9aWmgubz5U5iIHEDZIcPPbXylpMLHMIKVGZ/t8qCeLe3DKHpkfHZ+zOS3KI u+PGXKFV5HBlYsw/5wUZDv1sQI9wFTkIgNx/PsNBBGTO3UKHHSAdBzIcnM6n XX1+tNBBauoVzoyGDIdFyjv/tK8rdPhyyTdJwCHDQXfT3PfLtxY67CmZLMHy LN3hLchdVwsd6mQt0l22pzu8UjPkWCMJtb8l0eEiyF5bqPuA4ccAAmFlEHff T3AotOW6vjigDBJ+7QmQ8N1Z6pCwcf+beXu8HdpB4bel1KHiXMelew1eDpUv gRZcLHXoWLctqT7R0+Hq0VyThh+lDjPyhJoPWHk6SAXekq75XepgseVE2T5z T4cnn+Qv5f8rdViweu2NeDNPh/kgmrEMzge7QxXBB7vXpcxBAhQuPF4O6OkH AIbVCtI= "]]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, { 0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGJVIGYC4tePzKQOeJQ5nPA273Q08HZoE7t57vv9Moe+ Q181YrITHEDc4KdlDikCEZZbDiU4MO1hFRLhKnfQy1vMuEcz0SExJEh9gWG5 A8cHMY+AgEQHA62VwhdYKx2EXm5fzyyZ7BA3w0e0R7PSoaxQmveBdbJDjILj x2SLSocIkMJJyRD71CodChpZjvbfTHZ4vk71SbNopcOZWO8T7IopDlc5M5Ry XlU4/Dn97uRhuxSHpbOPKGw4VuGw40/7l9vSKQ6isief2n8rc3g3z0bnSliS w9aWmgubz5U5iIHEDZIcPPbXylpMLHMIKVGZ/t8qCeLe3DKHpkfHZ+zOS3KI u+PGXKFV5HBlYsw/5wUZDv1sQI9wFTkIgNx/PsNBBGTO3UKHHSAdBzIcnM6n XX1+tNBBauoVzoyGDIdFyjv/tK8rdPhyyTdJwCHDQXfT3PfLtxY67CmZLMHy LN3hLchdVwsd6mQt0l22pzu8UjPkWCMJtb8l0eEiyF5bqPuA4ccAAmFlEHff T3AotOW6vjigDBJ+7QmQ8N1Z6pCwcf+beXu8HdpB4bel1KHiXMelew1eDpUv gRZcLHXoWLctqT7R0+Hq0VyThh+lDjPyhJoPWHk6SAXekq75XepgseVE2T5z T4cnn+Qv5f8rdViweu2NeDNPh/kgmrEMzge7QxXBB7vXpcxBAhQuPF4O6OkH AIbVCtI= "], CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{352.0742, 50.424800000000005`}, {349.834, 50.424800000000005`}, {347.8936, 52.09570000000002}, {347.6133, 54.37700000000001}, {347.3105, 56.84370000000001}, {349.0645, 59.08890000000008}, { 351.53129999999993`, 59.39159999999998}, {470.6367, 74.0156}, { 473.1104, 74.32419999999996}, {475.3495999999999, 72.56450000000007}, {475.65229999999997`, 70.09770000000003}, { 475.9550999999999, 67.6309}, {474.2012, 65.38670000000002}, { 471.73440000000005`, 65.08400000000006}, {352.6289, 50.459}, { 352.4424, 50.43549999999999}, {352.25780000000003`, 50.424800000000005`}, {352.0742, 50.424800000000005`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{352.0742, 50.424800000000005`}, {349.834, 50.424800000000005`}, {347.8936, 52.09570000000002}, {347.6133, 54.37700000000001}, {347.3105, 56.84370000000001}, {349.0645, 59.08890000000008}, { 351.53129999999993`, 59.39159999999998}, {470.6367, 74.0156}, { 473.1104, 74.32419999999996}, {475.3495999999999, 72.56450000000007}, {475.65229999999997`, 70.09770000000003}, { 475.9550999999999, 67.6309}, {474.2012, 65.38670000000002}, { 471.73440000000005`, 65.08400000000006}, {352.6289, 50.459}, { 352.4424, 50.43549999999999}, {352.25780000000003`, 50.424800000000005`}, {352.0742, 50.424800000000005`}}}, CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{444.9004, 48.62110000000001}, {443.4004, 48.62110000000001}, { 441.93359999999996`, 49.37110000000001}, {441.08009999999996`, 50.737300000000005`}, {439.7637, 52.845699999999965`}, { 440.4043, 55.62110000000001}, {442.51169999999996`, 56.93850000000003}, {468.8008, 73.36619999999999}, { 470.9071999999999, 74.6816}, {473.68550000000005`, 74.043}, { 475.00199999999995`, 71.93459999999999}, {476.3184, 69.82619999999997}, {475.6777000000001, 67.05079999999998}, { 473.5703000000001, 65.73340000000002}, {447.28129999999993`, 49.3057}, {446.54, 48.842799999999954`}, {445.7148, 48.62110000000001}, {444.9004, 48.62110000000001}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{444.9004, 48.62110000000001}, {443.4004, 48.62110000000001}, { 441.93359999999996`, 49.37110000000001}, {441.08009999999996`, 50.737300000000005`}, {439.7637, 52.845699999999965`}, { 440.4043, 55.62110000000001}, {442.51169999999996`, 56.93850000000003}, {468.8008, 73.36619999999999}, { 470.9071999999999, 74.6816}, {473.68550000000005`, 74.043}, { 475.00199999999995`, 71.93459999999999}, {476.3184, 69.82619999999997}, {475.6777000000001, 67.05079999999998}, { 473.5703000000001, 65.73340000000002}, {447.28129999999993`, 49.3057}, {446.54, 48.842799999999954`}, {445.7148, 48.62110000000001}, {444.9004, 48.62110000000001}}}, CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGJxIGYC4lXdtzMYOrMcHkybwF8VpuOwZPYRhQ0NCD7H BzGPgIoshwUvPPT+J+o4NM07u+p8fpaDgptqKVOVjsMX+Uv58ZPDHTSm/59Q V+zoIBeVYn0/Ptxhh+qT5nmtjg4yIL4+VH6zo8OPQymrEjjCHRhA4IejQ8bE tzX2Z90dIoDK/FcGObS9Dtwhd9fNISEkSH2BYLDDq0dmUgcOuzmcmLF72oTj wQ53MhjyG6e4O3DYzg6dbx/iwLZ4khVjqofDD/6X29dvD3EoONdx6d4FT4c/ IHuOhDiElKhM/3/AC2JfTIhDhPj2iwxuEQ4HWIVE7I+5OrSA/LMwy0EA5B8p c4euvief5D9kORiA3LvazGFC3W+rApVshw87b3X9DTVx2HKibN98sWyHCV9u X298bOjABgofrmyHAxcZ7jFl6jvkNbIc7T+LCD/08AUAdHWiOA== "]]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {0, 1, 0}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}}}, CompressedData[" 1:eJxTTMoPSmVmYGBgBGJxIGYC4lXdtzMYOrMcHkybwF8VpuOwZPYRhQ0NCD7H BzGPgIoshwUvPPT+J+o4NM07u+p8fpaDgptqKVOVjsMX+Uv58ZPDHTSm/59Q V+zoIBeVYn0/Ptxhh+qT5nmtjg4yIL4+VH6zo8OPQymrEjjCHRhA4IejQ8bE tzX2Z90dIoDK/FcGObS9Dtwhd9fNISEkSH2BYLDDq0dmUgcOuzmcmLF72oTj wQ53MhjyG6e4O3DYzg6dbx/iwLZ4khVjqofDD/6X29dvD3EoONdx6d4FT4c/ IHuOhDiElKhM/3/AC2JfTIhDhPj2iwxuEQ4HWIVE7I+5OrSA/LMwy0EA5B8p c4euvief5D9kORiA3LvazGFC3W+rApVshw87b3X9DTVx2HKibN98sWyHCV9u X298bOjABgofrmyHAxcZ7jFl6jvkNbIc7T+LCD/08AUAdHWiOA== "], CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{212.27149999999995`, 14.168900000000065`}, {211.53319999999997`, 14.168900000000065`}, {210.78519999999997`, 14.350599999999929`}, {210.0938, 14.734399999999994`}, { 207.91989999999998`, 15.93950000000001}, {207.13480000000004`, 18.677700000000016`}, {208.33980000000003`, 20.851599999999962`}, {250.5195, 96.9434}, {251.72269999999997`, 99.11719999999997}, {254.4629, 99.90330000000006}, { 256.63669999999996`, 98.69729999999998}, {258.8105, 97.49219999999997}, {259.59569999999997`, 94.75390000000004}, { 258.3906, 92.58010000000002}, {216.21089999999998`, 16.488300000000038`}, {215.3906, 15.005900000000054`}, { 213.8555, 14.168900000000065`}, {212.27149999999995`, 14.168900000000065`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}}}, {{{212.27149999999995`, 14.168900000000065`}, {211.53319999999997`, 14.168900000000065`}, {210.78519999999997`, 14.350599999999929`}, {210.0938, 14.734399999999994`}, { 207.91989999999998`, 15.93950000000001}, {207.13480000000004`, 18.677700000000016`}, {208.33980000000003`, 20.851599999999962`}, {250.5195, 96.9434}, {251.72269999999997`, 99.11719999999997}, {254.4629, 99.90330000000006}, { 256.63669999999996`, 98.69729999999998}, {258.8105, 97.49219999999997}, {259.59569999999997`, 94.75390000000004}, { 258.3906, 92.58010000000002}, {216.21089999999998`, 16.488300000000038`}, {215.3906, 15.005900000000054`}, { 213.8555, 14.168900000000065`}, {212.27149999999995`, 14.168900000000065`}}}, CurveClosed->{1}]}, {FaceForm[{Hue[0.6, 0.2, 0.9], Opacity[1.]}], FilledCurveBox[{{{1, 4, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}}}, {{{240.1182, 139.59180000000003`}, {238.8066, 139.59180000000003`}, { 237.50780000000003`, 140.1621}, {236.6182, 141.25979999999998`}, {183.126, 207.31739999999996`}, {181.5615, 209.24900000000002`}, {181.85940000000002`, 212.08300000000003`}, {183.791, 213.6465}, {185.72359999999998`, 215.21090000000004`}, {188.5566, 214.91110000000003`}, { 190.1201, 212.9814}, {243.6123, 146.92380000000003`}, { 245.17680000000001`, 144.99219999999997`}, {244.8789, 142.15819999999997`}, {242.94729999999998`, 140.59470000000005`}, {242.11430000000001`, 139.91990000000004`}, {241.1123, 139.59180000000003`}, { 240.1182, 139.59180000000003`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{1, 4, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}}}, {{{240.1182, 139.59180000000003`}, {238.8066, 139.59180000000003`}, { 237.50780000000003`, 140.1621}, {236.6182, 141.25979999999998`}, {183.126, 207.31739999999996`}, {181.5615, 209.24900000000002`}, {181.85940000000002`, 212.08300000000003`}, {183.791, 213.6465}, {185.72359999999998`, 215.21090000000004`}, {188.5566, 214.91110000000003`}, { 190.1201, 212.9814}, {243.6123, 146.92380000000003`}, { 245.17680000000001`, 144.99219999999997`}, {244.8789, 142.15819999999997`}, {242.94729999999998`, 140.59470000000005`}, {242.11430000000001`, 139.91990000000004`}, {241.1123, 139.59180000000003`}, { 240.1182, 139.59180000000003`}}}, CurveClosed->{1}], JoinedCurveBox[{{{0, 2, 0}}}, {{{413.54200000000003`, 125.76070000000004`}, {398.3906, 156.82619999999997`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{351.2744, 94.7305}, { 462.2881000000001, 108.36130000000003`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{352.165, 94.83979999999997}, {353.03319999999997`, 96.76170000000008}, { 352.9668, 96.79490000000004}, {350.1934, 95.27830000000006}, { 349.20509999999996`, 94.9307}, {348.2168, 94.58200000000005}, { 347.22849999999994`, 94.2344}, {348.27149999999995`, 94.13479999999998}, {349.3145, 94.03710000000001}, {350.3584, 93.9375}, {353.41599999999994`, 93.1377}, {353.4736, 93.17579999999998}, {352.165, 94.83979999999997}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{461.3974999999999, 108.25200000000001`}, {460.0898000000001, 109.90620000000001`}, {460.14649999999995`, 109.95509999999996`}, {463.20410000000004`, 109.15429999999998`}, {464.24800000000005`, 109.0566}, { 465.29100000000005`, 108.957}, {466.33399999999995`, 108.85839999999996`}, {465.34569999999997`, 108.50980000000004`}, {464.35739999999987`, 108.16210000000001`}, {463.3690999999999, 107.81350000000003`}, {460.5957000000001, 106.29790000000003`}, {460.5313, 106.32029999999997`}, { 461.3974999999999, 108.25200000000001`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{352.08009999999996`, 54.92579999999998}, {346.7148, 98.62110000000001}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{471.18550000000005`, 69.5498}, { 465.8203, 113.24509999999998`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{444.89649999999995`, 53.12209999999999}, {471.18550000000005`, 69.5498}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{289.50980000000004`, 193.3677}, {289.50980000000004`, 192.53910000000002`}, {288.8379, 191.8677}, { 288.00980000000004`, 191.8677}, {287.1807, 191.8677}, { 286.50980000000004`, 192.53910000000002`}, {286.50980000000004`, 193.3677}, {286.50980000000004`, 194.1963}, {287.1807, 194.8677}, {288.00980000000004`, 194.8677}, {288.8379, 194.8677}, {289.50980000000004`, 194.1963}, { 289.50980000000004`, 193.3677}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{399.8906, 156.82619999999997`}, {399.8906, 155.99759999999998`}, {399.2188, 155.32619999999997`}, { 398.3906, 155.32619999999997`}, {397.5625, 155.32619999999997`}, {396.8906, 155.99759999999998`}, { 396.8906, 156.82619999999997`}, {396.8906, 157.65479999999997`}, {397.5625, 158.32619999999997`}, { 398.3906, 158.32619999999997`}, {399.2188, 158.32619999999997`}, {399.8906, 157.65479999999997`}, { 399.8906, 156.82619999999997`}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{353.58009999999996`, 54.92579999999998}, { 353.58009999999996`, 54.096700000000055`}, {352.90819999999997`, 53.42579999999998}, {352.08009999999996`, 53.42579999999998}, { 351.252, 53.42579999999998}, {350.58009999999996`, 54.096700000000055`}, {350.58009999999996`, 54.92579999999998}, {350.58009999999996`, 55.753900000000044`}, {351.252, 56.42579999999998}, { 352.08009999999996`, 56.42579999999998}, {352.90819999999997`, 56.42579999999998}, {353.58009999999996`, 55.753900000000044`}, {353.58009999999996`, 54.92579999999998}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{52.05569999999999, 78.041}, {52.05569999999999, 77.21290000000005}, {51.3848, 76.541}, {50.55569999999999, 76.541}, {49.726600000000005`, 76.541}, {49.05569999999999, 77.21290000000005}, {49.05569999999999, 78.041}, { 49.05569999999999, 78.87009999999998}, {49.726600000000005`, 79.541}, {50.55569999999999, 79.541}, {51.3848, 79.541}, { 52.05569999999999, 78.87009999999998}, {52.05569999999999, 78.041}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{213.7754, 18.66990000000004}, {213.7754, 17.841799999999978`}, {213.1055, 17.16990000000004}, {212.2754, 17.16990000000004}, {211.44729999999998`, 17.16990000000004}, { 210.7754, 17.841799999999978`}, {210.7754, 18.66990000000004}, { 210.7754, 19.49799999999999}, {211.44729999999998`, 20.16990000000004}, {212.2754, 20.16990000000004}, {213.1055, 20.16990000000004}, {213.7754, 19.49799999999999}, {213.7754, 18.66990000000004}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{255.95509999999996`, 94.76170000000008}, { 255.95509999999996`, 93.93360000000001}, {255.28319999999997`, 93.26170000000008}, {254.45509999999996`, 93.26170000000008}, { 253.625, 93.26170000000008}, {252.95509999999996`, 93.93360000000001}, {252.95509999999996`, 94.76170000000008}, { 252.95509999999996`, 95.58980000000003}, {253.625, 96.26170000000008}, {254.45509999999996`, 96.26170000000008}, { 255.28319999999997`, 96.26170000000008}, {255.95509999999996`, 95.58980000000003}, {255.95509999999996`, 94.76170000000008}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{472.68550000000005`, 69.5498}, {472.68550000000005`, 68.72070000000002}, {472.0146, 68.0498}, {471.18550000000005`, 68.0498}, {470.3563999999999, 68.0498}, {469.68550000000005`, 68.72070000000002}, {469.68550000000005`, 69.5498}, { 469.68550000000005`, 70.37890000000004}, {470.3563999999999, 71.0498}, {471.18550000000005`, 71.0498}, {472.0146, 71.0498}, { 472.68550000000005`, 70.37890000000004}, {472.68550000000005`, 69.5498}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{446.39649999999995`, 53.12209999999999}, { 446.39649999999995`, 52.293000000000006`}, {445.7256, 51.62209999999999}, {444.89649999999995`, 51.62209999999999}, { 444.0674, 51.62209999999999}, {443.39649999999995`, 52.293000000000006`}, {443.39649999999995`, 53.12209999999999}, {443.39649999999995`, 53.95119999999997}, { 444.0674, 54.62209999999999}, {444.89649999999995`, 54.62209999999999}, {445.7256, 54.62209999999999}, { 446.39649999999995`, 53.95119999999997}, {446.39649999999995`, 53.12209999999999}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{264.1563, 181.73390000000006`}, {341.93549999999993`, 219.6694}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{338.88669999999996`, 89.05370000000005}, {288.00980000000004`, 193.3677}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{332.373, 119.5503}, {362., 134.}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{330.3057, 44.3057}, { 352.08009999999996`, 54.92579999999998}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {0, 1, 0}}}, {{{353.6777, 151.06050000000005`}, {362., 134.00050000000005`}, { 379.05960000000005`, 142.3218}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{354.4648, 149.44729999999998`}, {358.6641, 149.0571}, {358.6836, 149.20360000000005`}, {354.00980000000004`, 153.46090000000004`}, {352.709, 155.10350000000005`}, { 351.40629999999993`, 156.74559999999997`}, {350.1035, 158.3877}, {350.59669999999994`, 156.35059999999993`}, { 351.0898, 154.31350000000003`}, {351.582, 152.27640000000002`}, {352.0605, 145.97310000000004`}, { 352.16990000000004`, 145.88919999999996`}, {354.4648, 149.44729999999998`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 377.44629999999995`, 141.53470000000004`}, {373.89649999999995`, 143.8125}, {373.9727, 143.9395}, {380.2754, 144.418}, { 382.3125, 144.9106}, {384.34960000000007`, 145.40330000000006`}, {386.38669999999996`, 145.89549999999997`}, {384.7441, 144.59370000000007`}, { 383.1016, 143.29150000000004`}, {381.46, 141.98930000000001`}, { 377.20309999999995`, 137.3164}, {377.0645, 137.3179}, { 377.44629999999995`, 141.53470000000004`}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{403.12109999999996`, 80.5}, {405.43549999999993`, 61.660199999999975`}, { 405.43549999999993`, 61.660199999999975`}, {416.34080000000006`, 62.99799999999999}, {424.2725, 63.97270000000003}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{403.3398, 78.71780000000001}, {407.1836, 76.98239999999998}, {407.25, 77.11430000000001}, {404.2168, 82.66019999999997}, { 403.52049999999997`, 84.6377}, {402.8242, 86.61430000000001}, { 402.127, 88.5908}, {401.92969999999997`, 86.5039000000001}, { 401.7324, 84.418}, {401.5352, 82.33109999999999}, { 399.93549999999993`, 76.2158}, {400.01169999999996`, 76.10160000000002}, {403.3398, 78.71780000000001}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 422.49319999999994`, 63.753900000000044`}, {419.8789, 67.06350000000009}, {419.99119999999994`, 67.16019999999997}, { 426.10740000000004`, 65.55959999999999}, {428.1934, 65.3623}, { 430.2793, 65.16410000000002}, {432.3662, 64.96680000000003}, { 430.38960000000003`, 64.27050000000003}, {428.41209999999995`, 63.57420000000002}, {426.43549999999993`, 62.87700000000001}, { 420.8887, 59.845699999999965`}, {420.75980000000004`, 59.89159999999998}, {422.49319999999994`, 63.753900000000044`}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{94.43260000000001, 225.30079999999998`}, {103.63569999999999`, 208.70120000000003`}, {103.63479999999998`, 208.7002}, { 113.24509999999998`, 214.02730000000003`}, {120.23339999999999`, 217.90140000000002`}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{95.30369999999999, 223.7305}, {99.51659999999998, 223.56150000000008`}, { 99.52830000000003, 223.70800000000003`}, {94.63959999999997, 227.71480000000003`}, {93.25290000000001, 229.2871}, { 91.86620000000002, 230.85939999999994`}, {90.47949999999997, 232.4307}, {91.07909999999998, 230.42190000000005`}, { 91.67679999999999, 228.41410000000002`}, {92.2764, 226.4053}, { 93.083, 220.13569999999999`}, {93.19630000000001, 220.05759999999998`}, {95.30369999999999, 223.7305}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 118.66499999999999`, 217.03320000000002`}, {115.00290000000001`, 219.1221}, {115.0703, 219.2529}, {121.3398, 220.0596}, { 123.3486, 220.65919999999994`}, {125.35640000000004`, 221.2568}, {127.36620000000002`, 221.85549999999995`}, { 125.79389999999998`, 220.46970000000005`}, {124.2217, 219.08300000000003`}, {122.64939999999999`, 217.6963}, { 118.64359999999996`, 212.80759999999998`}, {118.50489999999999`, 212.80180000000001`}, {118.66499999999999`, 217.03320000000002`}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{194.19140000000002`, 200.7842}, {206.13569999999999`, 186.0342}, { 206.13569999999999`, 186.03320000000002`}, {214.67380000000003`, 192.94819999999999`}, {220.8838, 197.97750000000002`}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 195.32030000000003`, 199.38870000000003`}, {199.5, 199.9531}, { 199.48630000000003`, 200.1006}, {193.97459999999998`, 203.19729999999998`}, {192.3369, 204.50490000000008`}, { 190.6992, 205.8125}, {189.0605, 207.1191}, {189.999, 205.24509999999998`}, {190.9375, 203.3711}, {191.875, 201.4971}, {193.7588, 195.46290000000005`}, {193.8848, 195.4053}, {195.32030000000003`, 199.38870000000003`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 219.49019999999996`, 196.84959999999995`}, {215.5195, 198.27050000000003`}, {215.5645, 198.41110000000003`}, { 221.59859999999998`, 200.29590000000002`}, {223.47269999999997`, 201.2344}, {225.3467, 202.17290000000003`}, { 227.22069999999997`, 203.11039999999997`}, {225.91309999999993`, 201.47270000000003`}, {224.6064, 199.834}, { 223.29879999999997`, 198.19529999999997`}, {220.20209999999997`, 192.6846}, {220.06740000000002`, 192.65529999999995`}, { 219.49019999999996`, 196.84959999999995`}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{77.24609999999998, 45.82519999999994}, {95.084, 39.334}, {95.084, 39.331999999999994`}, {98.8418, 49.658199999999965`}, { 101.57419999999999`, 57.168000000000006`}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{78.93359999999998, 45.21090000000004}, {82.22459999999998, 47.847699999999975`}, { 82.13669999999999, 47.966800000000035`}, {75.81840000000003, 47.78320000000002}, {73.74019999999999, 48.06050000000005}, { 71.6631, 48.336900000000014`}, {69.5859, 48.61330000000004}, { 71.35549999999999, 47.49019999999996}, {73.125, 46.36719999999997}, {74.89359999999999, 45.2441}, {79.6172, 41.04200000000003}, {79.75389999999999, 41.05759999999998}, { 78.93359999999998, 45.21090000000004}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 100.96090000000001`, 55.482399999999984`}, {96.82620000000003, 54.656199999999956`}, {96.791, 54.79880000000003}, {100.9932, 59.52150000000006}, {102.11619999999999`, 61.291}, { 103.23929999999999`, 63.06050000000005}, {104.36330000000001`, 64.83009999999996}, {104.08590000000001`, 62.75200000000001}, { 103.80860000000001`, 60.67579999999998}, {103.53220000000002`, 58.59770000000003}, {103.71579999999997`, 52.279300000000035`}, {103.61519999999999`, 52.18360000000001}, {100.96090000000001`, 55.482399999999984`}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{210.39839999999998`, 54.70120000000003}, {227., 45.5}, {227., 45.49799999999999}, { 232.32709999999997`, 55.109399999999994`}, {236.20119999999997`, 62.09770000000003}}}, CurveClosed->{0}]}, {Thickness[0.004024144869215292], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{211.9678, 53.83109999999999}, {215.6309, 55.91990000000004}, { 215.56349999999998`, 56.05079999999998}, {209.29299999999995`, 56.85839999999996}, {207.28519999999997`, 57.456999999999994`}, {205.27639999999997`, 58.054700000000025`}, {203.26760000000002`, 58.6533}, { 204.83980000000003`, 57.267600000000016`}, {206.41209999999995`, 55.8809}, {207.98339999999996`, 54.49509999999998}, { 211.99119999999994`, 49.605500000000006`}, {212.1279, 49.59960000000001}, {211.9678, 53.83109999999999}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{235.332, 60.53030000000001}, {231.1182, 60.36130000000003}, {231.1064, 60.50780000000003}, {235.99509999999992`, 64.51460000000003}, { 237.3818, 66.08690000000007}, {238.76760000000002`, 67.65819999999997}, {240.15430000000003`, 69.2305}, {239.5557, 67.22270000000003}, {238.957, 65.21290000000005}, { 238.35940000000005`, 63.205100000000016`}, {237.55180000000001`, 56.93549999999999}, {237.43849999999992`, 56.85739999999993}, { 235.332, 60.53030000000001}}}]}, {Thickness[0.004024144869215292], CapForm["Butt"], JoinForm[{"Miter", 4.}], JoinedCurveBox[{{{0, 2, 0}, {1, 3, 3}}}, {{{441.4609, 73.3818}, { 451.5195, 57.285199999999975`}, {451.5195, 57.285199999999975`}, {458.125, 61.41310000000004}, {464.2578, 65.24610000000001}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 442.41209999999995`, 71.85939999999994}, {446.6289, 71.91019999999997}, {446.63280000000003`, 72.05860000000001}, { 441.541, 75.80370000000005}, {440.0742, 77.30079999999998}, { 438.60740000000004`, 78.79880000000003}, {437.14060000000006`, 80.29490000000004}, {437.84380000000004`, 78.32029999999997}, { 438.5469, 76.3467}, {439.249, 74.37209999999999}, {440.3838, 68.1533}, {440.501, 68.08200000000005}, {442.41209999999995`, 71.85939999999994}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{462.7383000000001, 64.29590000000002}, {458.9707000000001, 66.19039999999995}, { 459.0313, 66.32419999999996}, {465.25, 67.459}, {467.2246, 68.16210000000001}, {469.1992, 68.86519999999996}, { 471.17380000000014`, 69.56740000000002}, {469.67680000000007`, 68.10160000000002}, {468.17970000000014`, 66.63479999999998}, { 466.6816, 65.168}, {462.9364999999999, 60.075199999999995`}, { 462.7998000000001, 60.06250000000006}, {462.7383000000001, 64.29590000000002}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{369.5791, 118.45999999999998`}, {362., 134.}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{339.1787, 97.75390000000004}, { 406.623, 130.6479}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 339.98539999999997`, 98.1465}, {340.1807, 100.24610000000001`}, {340.10740000000004`, 100.2559}, { 337.97849999999994`, 97.91990000000004}, {337.15720000000005`, 97.26860000000005}, {336.3359, 96.61719999999997}, {335.5156, 95.96680000000003}, {336.53319999999997`, 96.21290000000005}, { 337.5527, 96.459}, {338.5703, 96.70510000000002}, {341.7227, 96.9443}, {341.7637, 96.99799999999999}, {339.98539999999997`, 98.1465}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{405.8164, 130.25490000000002`}, {404.043, 131.3936}, {404.08009999999996`, 131.457}, {407.23139999999995`, 131.6963}, {408.25, 131.94239999999996`}, {409.2686, 132.18900000000002`}, { 410.28709999999995`, 132.43509999999998`}, {409.4658, 131.7842}, {408.64450000000005`, 131.13330000000002`}, { 407.8242, 130.48190000000005`}, {405.6953, 128.14549999999997`}, {405.626, 128.1465}, {405.8164, 130.25490000000002`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{334.0908, 108.18650000000002`}, {363.14360000000005`, 122.35599999999994`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{334.8975, 108.58010000000002`}, {335.0928, 110.67970000000003`}, { 335.0195, 110.68950000000001`}, {332.8906, 108.35249999999996`}, {332.0693, 107.70120000000003`}, {331.248, 107.05079999999998`}, {330.42769999999996`, 106.39939999999996`}, {331.4453, 106.64549999999997`}, { 332.4648, 106.89259999999996`}, {333.4824, 107.13870000000003`}, {336.63480000000004`, 107.37700000000001`}, {336.67580000000004`, 107.4316}, { 334.8975, 108.58010000000002`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 362.33689999999996`, 121.96290000000005`}, {360.5625, 123.10160000000002`}, {360.5996, 123.16500000000002`}, {363.752, 123.40430000000003`}, {364.7695, 123.65039999999993`}, { 365.78909999999996`, 123.89699999999999`}, {366.8066, 124.1431}, {365.9862999999999, 123.49219999999997`}, {365.1641, 122.84129999999999`}, {364.34380000000004`, 122.18990000000002`}, {362.2148, 119.8535}, {362.1465, 119.85449999999997`}, {362.33689999999996`, 121.96290000000005`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{349.15040000000005`, 137.34179999999998`}, {317.1133, 203.02880000000005`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{348.7568, 138.14839999999998`}, {346.65720000000005`, 138.3437}, { 346.64750000000004`, 138.27050000000003`}, {348.9844, 136.14159999999998`}, {349.63480000000004`, 135.32029999999997`}, {350.2852, 134.4995}, { 350.93749999999994`, 133.6782}, {350.6914, 134.6968}, {350.4443, 135.7153}, {350.1982, 136.73390000000006`}, {349.959, 139.88569999999999`}, {349.9043, 139.92719999999997`}, { 348.7568, 138.14839999999998`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{317.5059, 202.2222}, {316.3672, 200.44779999999997`}, {316.3037, 200.48490000000004`}, {316.0645, 203.63670000000002`}, { 315.8184, 204.65529999999995`}, {315.5723, 205.67380000000003`}, {315.3262, 206.69239999999996`}, { 315.97659999999996`, 205.8711}, {316.6279, 205.0498}, {317.2793, 204.22900000000004`}, {319.6152, 202.1001}, {319.6152, 202.0312}, {317.5059, 202.2222}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{337.49319999999994`, 126.57760000000002`}, {303.45309999999995`, 196.37009999999998`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{337.0996, 127.3843}, {335., 127.57960000000003`}, {334.99019999999996`, 127.50630000000007`}, {337.3271, 125.37739999999997`}, { 337.97849999999994`, 124.55619999999999`}, {338.6289, 123.73539999999997`}, {339.28029999999995`, 122.91410000000002`}, {339.0342, 123.93259999999998`}, { 338.78709999999995`, 124.95119999999997`}, {338.541, 125.96970000000005`}, {338.3027, 129.1216}, {338.248, 129.16310000000004`}, {337.0996, 127.3843}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{303.8457, 195.5635000000001}, {302.707, 193.78910000000002`}, { 302.64450000000005`, 193.82619999999997`}, {302.4043, 196.978}, {302.1582, 197.9966}, {301.91209999999995`, 199.01510000000002`}, {301.666, 200.03370000000007`}, {302.3164, 199.2124}, {302.9678, 198.3911}, {303.6191, 197.57030000000003`}, {305.95509999999996`, 195.4414}, { 305.95509999999996`, 195.37259999999998`}, {303.8457, 195.5635000000001}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{334.9795, 51.11719999999997}, { 271.6953, 180.86870000000005`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{334.5859, 51.92380000000003}, {332.4862999999999, 52.1191}, { 332.47659999999996`, 52.04490000000004}, {334.8135, 49.916}, { 335.4648, 49.09570000000002}, {336.1152, 48.274400000000014`}, { 336.7666, 47.453100000000006`}, {336.52049999999997`, 48.471700000000055`}, {336.2734, 49.49019999999996}, { 336.02729999999997`, 50.508800000000065`}, {335.78909999999996`, 53.660199999999975`}, {335.7344, 53.70210000000003}, {334.5859, 51.92380000000003}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{272.0879, 180.06200000000007`}, {270.9492, 178.2876}, { 270.88669999999996`, 178.3247}, {270.6465, 181.47660000000002`}, {270.4004, 182.49509999999998`}, { 270.15430000000003`, 183.51370000000009`}, {269.90819999999997`, 184.5322}, {270.5586, 183.71090000000004`}, {271.21, 182.88959999999997`}, {271.86129999999997`, 182.06880000000007`}, {274.1973, 179.93990000000002`}, { 274.1973, 179.8711}, {272.0879, 180.06200000000007`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{402.1289, 88.5908}, {401.1387, 96.65429999999998}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{480.0879, 47.45509999999996}, { 460.71090000000004`, 35.347699999999975`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 479.32619999999986`, 46.980500000000006`}, {479.35159999999985`, 44.87110000000001}, {479.4258, 44.8691}, {481.29880000000014`, 47.416}, {482.04689999999994`, 48.14839999999998}, { 482.7949000000001, 48.882799999999975`}, {483.5439, 49.61519999999996}, {482.5565999999999, 49.263700000000085`}, { 481.5693, 48.91210000000001}, {480.582, 48.56150000000008}, { 477.47270000000003`, 47.9941}, {477.4374999999999, 47.93549999999999}, {479.32619999999986`, 46.980500000000006`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 461.47270000000003`, 35.82419999999996}, {463.3563999999999, 34.87700000000001}, {463.32619999999986`, 34.80959999999999}, { 460.21680000000003`, 34.24219999999997}, {459.22950000000003`, 33.89059999999995}, {458.2421999999999, 33.53910000000002}, { 457.2549, 33.1875}, {458.00390000000004`, 33.92190000000005}, { 458.75199999999995`, 34.65429999999998}, {459.5, 35.387699999999995`}, {461.37300000000005`, 37.93360000000001}, {461.44139999999993`, 37.940399999999954`}, {461.47270000000003`, 35.82419999999996}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{444.89649999999995`, 53.12209999999999}, {461.3241999999999, 26.83299999999997}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{471.18550000000005`, 69.5498}, { 487.6133000000001, 43.26070000000004}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{37., 127.5}, {37., 126.67190000000005`}, {36.3291, 126.}, {35.5, 126.}, {34.67089999999999, 126.}, {34., 126.67190000000005`}, {34., 127.5}, {34., 128.3281}, { 34.67089999999999, 129.}, {35.5, 129.}, {36.3291, 129.}, {37., 128.3281}, {37., 127.5}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{188.123, 210.14939999999996`}, {188.123, 209.3213}, { 187.45210000000003`, 208.64939999999996`}, {186.623, 208.64939999999996`}, {185.79389999999998`, 208.64939999999996`}, {185.123, 209.3213}, {185.123, 210.14939999999996`}, {185.123, 210.97750000000002`}, { 185.79389999999998`, 211.64939999999996`}, {186.623, 211.64939999999996`}, {187.45210000000003`, 211.64939999999996`}, {188.123, 210.97750000000002`}, {188.123, 210.14939999999996`}}}], FilledCurveBox[{{{1, 4, 3}, {1, 3, 3}, {1, 3, 3}, {1, 3, 3}}}, {{{241.61520000000002`, 144.09180000000003`}, { 241.61520000000002`, 143.26370000000009`}, {240.9443, 142.59180000000003`}, {240.11520000000002`, 142.59180000000003`}, {239.28609999999992`, 142.59180000000003`}, {238.61520000000002`, 143.26370000000009`}, {238.61520000000002`, 144.09180000000003`}, {238.61520000000002`, 144.91990000000004`}, {239.28609999999992`, 145.59180000000003`}, {240.11520000000002`, 145.59180000000003`}, {240.9443, 145.59180000000003`}, { 241.61520000000002`, 144.91990000000004`}, {241.61520000000002`, 144.09180000000003`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{451.5195, 57.285199999999975`}, {461.01559999999995`, 42.08890000000008}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{448.5664, 39.5566}, {441.9473, 35.41990000000004}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{447.8057, 39.08200000000005}, {447.832, 36.97270000000003}, { 447.90529999999995`, 36.97070000000002}, {449.77729999999997`, 39.517600000000016`}, {450.52639999999997`, 40.25}, {451.2754, 40.984399999999994`}, {452.0234, 41.716800000000035`}, { 451.0360999999999, 41.36519999999996}, {450.0488, 41.013700000000085`}, {449.06149999999997`, 40.66310000000004}, {445.9521, 40.09570000000002}, { 445.91599999999994`, 40.03710000000001}, {447.8057, 39.08200000000005}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{468.37209999999993`, 51.93360000000001}, {462.1133000000001, 48.02340000000004}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{462.875, 48.49799999999999}, {464.75880000000006`, 47.55079999999998}, { 464.72850000000005`, 47.484399999999994`}, {461.6191, 46.91700000000003}, {460.6318, 46.56540000000001}, {459.6445, 46.21390000000008}, {458.6571999999999, 45.86330000000004}, { 459.4063, 46.59570000000002}, {460.15430000000003`, 47.32909999999998}, {460.90229999999997`, 48.06250000000006}, { 462.7754000000001, 50.609399999999994`}, {462.8438, 50.61519999999996}, {462.875, 48.49799999999999}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{344.46389999999997`, 130.5244}, {398.3906, 156.82619999999997`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{405.8633, 91.62299999999999}, { 463.4491999999999, 98.6943}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{406.7539, 91.73239999999998}, {407.6221, 93.65429999999998}, {407.5557, 93.68650000000002}, {404.7822, 92.17090000000002}, { 403.79389999999995`, 91.82229999999998}, {402.8057, 91.47460000000001}, {401.8174, 91.12599999999998}, { 402.86129999999997`, 91.02730000000003}, {403.9043, 90.92870000000005}, {404.9473, 90.83009999999996}, {408.0049, 90.02930000000003}, {408.0625, 90.06840000000005}, {406.7539, 91.73239999999998}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 462.55859999999996`, 98.58500000000004}, {461.25199999999995`, 100.23930000000001`}, {461.30759999999987`, 100.28710000000001`}, {464.36519999999985`, 99.4873}, { 465.40819999999997`, 99.38870000000003}, {466.45119999999986`, 99.29000000000002}, {467.4951, 99.19139999999999}, {466.5068, 98.84279999999995}, {465.5186, 98.4941}, {464.5303, 98.1465}, { 461.7568, 96.62990000000002}, {461.69140000000004`, 96.6533}, { 462.55859999999996`, 98.58500000000004}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{63.38279999999999, 100.63670000000002`}, {217.44920000000002`, 44.07420000000002}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{64.22460000000001, 100.3281}, {65.874, 101.64059999999995`}, {65.8301, 101.7002}, { 62.67089999999999, 101.61719999999997`}, {61.63279999999999, 101.75880000000001`}, {60.5938, 101.90039999999999`}, { 59.55569999999999, 102.041}, {60.43950000000001, 101.47750000000002`}, {61.322299999999984`, 100.91410000000002`}, {62.2051, 100.34959999999995`}, {64.5605, 98.24219999999997}, {64.62889999999999, 98.24900000000002}, { 64.22460000000001, 100.3281}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{216.6064, 44.38380000000001}, {216.19920000000002`, 46.453100000000006`}, {216.27049999999997`, 46.469700000000046`}, {218.62599999999998`, 44.362300000000005`}, {219.5088, 43.79880000000003}, { 220.39260000000002`, 43.234399999999994`}, {221.2754, 42.66990000000004}, {220.23729999999995`, 42.811500000000024`}, {219.19920000000002`, 42.953100000000006`}, {218.16020000000003`, 43.09370000000007}, {215.00099999999998`, 43.011700000000076`}, {214.95309999999995`, 43.06050000000005}, {216.6064, 44.38380000000001}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{58.5078, 87.99019999999996}, { 102.59379999999999`, 71.80470000000003}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{59.34960000000001, 87.6816}, {60.99900000000001, 88.99509999999998}, {60.9551, 89.05470000000003}, {57.7959, 88.97170000000006}, {56.7578, 89.11330000000004}, {55.7188, 89.25390000000004}, { 54.68069999999999, 89.39549999999997}, {55.56450000000001, 88.832}, {56.44730000000001, 88.26760000000002}, {57.3301, 87.70310000000006}, {59.68549999999999, 85.59570000000002}, { 59.7539, 85.60350000000005}, {59.34960000000001, 87.6816}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{101.751, 72.11430000000001}, {101.34379999999999`, 74.18360000000001}, { 101.41499999999999`, 74.2002}, {103.77049999999997`, 72.09280000000001}, {104.6543, 71.52930000000003}, { 105.53710000000001`, 70.96480000000003}, {106.41989999999998`, 70.40039999999999}, {105.38180000000003`, 70.54200000000003}, { 104.34379999999999`, 70.68360000000001}, {103.3047, 70.82419999999996}, {100.14449999999997`, 70.74219999999997}, { 100.0977, 70.791}, {101.751, 72.11430000000001}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{50.55569999999999, 78.041}, { 62.01950000000001, 109.26760000000002`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{104.36330000000001`, 64.83009999999996}, {108.03130000000002`, 74.82229999999998}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{50.55569999999999, 78.041}, { 33.8398, 84.17870000000005}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{69.5859, 48.61330000000004}, { 26.438500000000005`, 64.45209999999997}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{212.334, 18.334000000000003`}, { 222.05470000000003`, 44.81450000000001}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{34.091800000000006`, 65.82130000000001}, {38.52829999999999, 77.90820000000002}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{34.40140000000001, 66.66410000000002}, {33.087900000000005`, 68.3125}, { 33.02829999999999, 68.26950000000005}, {33.1113, 65.1094}, { 32.9697, 64.07130000000006}, {32.82809999999999, 63.03320000000002}, {32.6875, 61.9941}, {33.251999999999995`, 62.87790000000001}, {33.8154, 63.761700000000076`}, { 34.37889999999999, 64.6445}, {36.487300000000005`, 67.}, { 36.4795, 67.06840000000005}, {34.40140000000001, 66.66410000000002}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{38.2188, 77.06540000000001}, {36.15039999999999, 76.65819999999997}, { 36.13279999999999, 76.72950000000003}, {38.24120000000002, 79.08500000000004}, {38.8047, 79.96870000000007}, {39.3691, 80.85159999999996}, {39.93360000000001, 81.7344}, {39.792, 80.69630000000001}, {39.65039999999999, 79.65819999999997}, { 39.5098, 78.6191}, {39.591800000000006`, 75.459}, { 39.543000000000006`, 75.41210000000001}, {38.2188, 77.06540000000001}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{277.91409999999996`, 77.1816}, { 239.6895, 8.21870000000007}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{277.4795, 76.3965}, {278.5234, 74.56450000000007}, {278.58889999999997`, 74.59770000000003}, {278.99319999999994`, 77.73340000000002}, { 279.292, 78.7373}, {279.5918, 79.74219999999997}, {279.8906, 80.74610000000001}, {279.1973, 79.95999999999998}, {278.5049, 79.17380000000003}, {277.81149999999997`, 78.38870000000003}, { 275.3672, 76.38479999999998}, {275.3643, 76.31639999999999}, { 277.4795, 76.3965}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 240.12400000000002`, 9.003900000000101}, {242.23139999999995`, 9.089800000000025}, {242.23629999999991`, 9.015600000000006}, { 239.79199999999997`, 7.011700000000076}, {239.0996, 6.226600000000019}, {238.40629999999993`, 5.4395000000000095`}, {237.7129, 4.654299999999978}, { 238.01169999999996`, 5.658199999999965}, {238.31149999999997`, 6.6621000000000095`}, {238.61040000000003`, 7.66700000000003}, { 239.01460000000003`, 10.802700000000016`}, {239.07129999999995`, 10.840799999999945`}, {240.12400000000002`, 9.003900000000101}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{263.99799999999993`, 84.76460000000003}, {240.6309, 42.61130000000003}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{263.5635, 83.97950000000003}, {264.60740000000004`, 82.14839999999998}, { 264.6729, 82.1816}, {265.0771, 85.31639999999999}, {265.376, 86.32029999999997}, {265.67580000000004`, 87.32519999999994}, { 265.9746, 88.33009999999996}, {265.28129999999993`, 87.543}, { 264.58889999999997`, 86.75779999999997}, {263.89549999999997`, 85.97170000000006}, {261.4502, 83.96870000000007}, {261.4473, 83.89939999999996}, {263.5635, 83.97950000000003}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{241.0654, 43.3965}, {243.17290000000003`, 43.480500000000006`}, {243.1787, 43.40719999999999}, {240.73339999999996`, 41.404300000000035`}, {240.041, 40.61719999999997}, { 239.34770000000003`, 39.831999999999994`}, {238.65430000000003`, 39.04590000000002}, {238.95309999999995`, 40.05079999999998}, { 239.2529, 41.054700000000025`}, {239.55180000000001`, 42.05860000000001}, {239.95609999999994`, 45.1934}, {240.0127, 45.232399999999984`}, {241.0654, 43.3965}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{254.45509999999996`, 94.76170000000008}, {286.3691, 77.07130000000006}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{212.2754, 18.66990000000004}, { 244.1914, 0.97950000000003}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{227., 45.5}, { 243.93949999999995`, 36.11130000000003}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{0.25679999999999836`, 152.16310000000004`}, {103.63569999999999`, 208.70120000000003`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{18.672899999999984`, 118.29790000000003`}, {35.5, 127.5}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{130.79979999999998`, 159.0322}, {103.63569999999999`, 208.70120000000003`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{50.54390000000001, 99.99509999999998}, {35.5, 127.5}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{200.5234, 184.7344}, {186.623, 210.14939999999996`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{216.02249999999998`, 228.4814}, {264.3838, 168.75979999999998`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 216.58689999999996`, 227.7842}, {218.67680000000001`, 228.06640000000004`}, {218.66990000000004`, 228.13959999999997`}, {215.91409999999996`, 229.68850000000003`}, {215.09569999999997`, 230.34179999999998`}, {214.27639999999997`, 230.9961}, {213.457, 231.64939999999996`}, {213.92579999999998`, 230.71190000000007`}, {214.39549999999997`, 229.7754}, { 214.86430000000001`, 228.8379}, {215.8057, 225.8213}, {215.8691, 225.793}, {216.58689999999996`, 227.7842}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{263.8193, 169.457}, {264.5293, 171.44239999999996`}, {264.60060000000004`, 171.41990000000004`}, {265.54200000000003`, 168.40330000000006`}, {266.0107, 167.4658}, { 266.48049999999995`, 166.52930000000003`}, {266.9492, 165.59180000000003`}, {266.1299, 166.24509999999998`}, { 265.31149999999997`, 166.89939999999996`}, {264.49219999999997`, 167.55270000000002`}, {261.7362999999999, 169.10160000000002`}, {261.72169999999994`, 169.16890000000006`}, {263.8193, 169.457}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{194.0225, 170.873}, {222.7588, 135.38479999999998`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{194.5869, 170.17579999999998`}, {196.6768, 170.45799999999997`}, { 196.66989999999998`, 170.5312}, {193.9141, 172.08010000000002`}, {193.0957, 172.73340000000002`}, { 192.2764, 173.3877}, {191.45700000000002`, 174.041}, {191.9258, 173.10450000000003`}, {192.3955, 172.16700000000003`}, { 192.86430000000001`, 171.22950000000003`}, {193.8057, 168.21290000000005`}, {193.8691, 168.1846}, {194.5869, 170.17579999999998`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{222.1943, 136.08200000000005`}, {222.90529999999995`, 138.06740000000002`}, {222.9756, 138.04490000000004`}, { 223.91699999999997`, 135.02830000000006`}, {224.38569999999999`, 134.0908}, {224.8555, 133.15429999999998`}, { 225.32420000000002`, 132.21680000000003`}, {224.50490000000002`, 132.87009999999998`}, {223.68649999999997`, 133.5244}, { 222.86720000000003`, 134.17770000000002`}, {220.11129999999997`, 135.72660000000002`}, {220.09669999999994`, 135.79390000000006`}, {222.1943, 136.08200000000005`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{240.11520000000002`, 144.09180000000003`}, {271.28809999999993`, 169.33589999999998`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{187.04299999999998`, 170.57320000000004`}, {206.13569999999999`, 186.0342}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{221.02249999999998`, 128.6309}, {240.11520000000002`, 144.09180000000003`}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{186.623, 210.14939999999996`}, { 217.79589999999996`, 235.3936}}}, CurveClosed->{0}], JoinedCurveBox[{{{0, 2, 0}}}, {{{23.8438, 125.77440000000001`}, { 9.182099999999991, 152.58300000000003`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 23.413100000000014`, 126.56150000000008`}, {21.307600000000008`, 126.65919999999994`}, {21.300799999999995`, 126.58500000000004`}, {23.733400000000003`, 124.56740000000002`}, {24.4229, 123.77830000000006`}, {25.1104, 122.98830000000004`}, {25.799800000000005`, 122.19819999999999`}, {25.5068, 123.20410000000004`}, { 25.211900000000014`, 124.21000000000004`}, {24.918900000000008`, 125.2158}, {24.533200000000008`, 128.3535}, { 24.477500000000006`, 128.39259999999996`}, {23.413100000000014`, 126.56150000000008`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{9.612799999999993, 151.79590000000002`}, {8.557599999999994, 149.96970000000005`}, {8.492700000000006, 150.0039000000001}, { 8.1064, 153.14159999999998`}, {7.812999999999995, 154.14749999999998`}, {7.519500000000001, 155.1533}, { 7.2261000000000095`, 156.15919999999994`}, {7.914599999999993, 155.3691}, {8.603000000000002, 154.57910000000004`}, { 9.292000000000002, 153.79000000000002`}, {11.725099999999998`, 151.77250000000004`}, {11.727500000000006`, 151.70310000000006`}, {9.612799999999993, 151.79590000000002`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{44.46780000000001, 119.32619999999997`}, {123.95410000000001`, 162.79790000000003`}}}, CurveClosed->{0}]}, {Thickness[0.001006036217303823], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 45.254900000000006`, 119.7568}, {45.351600000000005`, 121.86330000000004`}, {45.27829999999999, 121.8691}, {43.2607, 119.43650000000002`}, {42.470699999999994`, 118.74709999999999`}, {41.68069999999999, 118.05860000000001`}, {40.89160000000001, 117.37009999999998`}, {41.89750000000001, 117.66410000000002`}, {42.9033, 117.957}, {43.90920000000001, 118.25099999999998`}, {47.0459, 118.63670000000002`}, { 47.084999999999994`, 118.6934}, {45.254900000000006`, 119.7568}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{123.167, 162.36719999999997`}, {121.3408, 163.42190000000005`}, {121.376, 163.4873}, {124.5127, 163.873}, {125.51859999999999`, 164.16700000000003`}, {126.52440000000001`, 164.46090000000004`}, {127.53030000000001`, 164.75390000000004`}, {126.74119999999999`, 164.0654}, { 125.95120000000003`, 163.377}, {125.1611, 162.68850000000003`}, {123.14359999999996`, 160.25490000000002`}, {123.0752, 160.252}, {123.167, 162.36719999999997`}}}]}, {Thickness[0.001006036217303823], CapForm["Butt"], JoinForm[{"Miter", 10.}], JoinedCurveBox[{{{0, 2, 0}}}, {{{50.4697, 108.2998}, { 194.42090000000002`, 187.0254}}}, CurveClosed->{0}]}, {Thickness[0.002012072434607646], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{51.2578, 108.7305}, {51.3545, 110.83690000000001`}, {51.2813, 110.84279999999995`}, {49.2637, 108.4092}, {48.473600000000005`, 107.72070000000002`}, {47.6836, 107.03219999999999`}, { 46.893600000000006`, 106.34370000000001`}, {47.8994, 106.6377}, {48.9053, 106.9307}, {49.91210000000001, 107.22460000000001`}, {53.0488, 107.61039999999997`}, { 53.088899999999995`, 107.66700000000003`}, {51.2578, 108.7305}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {1, 3, 3}, {1, 3, 3}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{ 193.63379999999998`, 186.59470000000005`}, {191.8076, 187.64939999999996`}, {191.8418, 187.71480000000003`}, { 194.97949999999997`, 188.1006}, {195.98540000000003`, 188.3945}, {196.99120000000002`, 188.68850000000003`}, { 197.99710000000002`, 188.9814}, {197.207, 188.293}, {196.417, 187.60450000000003`}, {195.627, 186.91500000000002`}, {193.6104, 184.48239999999998`}, {193.541, 184.47950000000003`}, { 193.63379999999998`, 186.59470000000005`}}}]}, {FaceForm[{RGBColor[1., 1., 1.], Opacity[1.]}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{334.2725, 179.29150000000004`}, {318.7725, 179.29150000000004`}, {318.7725, 189.79150000000004`}, { 334.2725, 189.79150000000004`}, {334.2725, 179.29150000000004`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{336.6055, 139.29150000000004`}, {321.1055, 139.29150000000004`}, {321.1055, 149.79150000000004`}, { 336.6055, 149.79150000000004`}, {336.6055, 139.29150000000004`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{443.6064, 90.291}, {428.1064, 90.291}, {428.1064, 100.791}, {443.6064, 100.791}, {443.6064, 90.291}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{415.8975, 97.125}, {407.14750000000004`, 97.125}, { 407.14750000000004`, 107.625}, {415.8975, 107.625}, {415.8975, 97.125}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{215.9688, 148.2842}, {200.46880000000002`, 148.2842}, { 200.46880000000002`, 158.7842}, {215.9688, 158.7842}, {215.9688, 148.2842}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{24.7188, 133.2842}, {9.218800000000002, 133.2842}, { 9.218800000000002, 144.7842}, {24.7188, 144.7842}, {24.7188, 133.2842}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{90.3896, 136.64939999999996`}, {77.8896, 136.64939999999996`}, {77.8896, 147.14939999999996`}, {90.3896, 147.14939999999996`}, {90.3896, 136.64939999999996`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{158.46880000000002`, 157.2842}, {144.46880000000002`, 157.2842}, {144.46880000000002`, 170.0342}, { 158.46880000000002`, 170.0342}, {158.46880000000002`, 157.2842}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{244.6816, 193.98239999999998`}, {235.93159999999995`, 193.98239999999998`}, {235.93159999999995`, 202.48239999999998`}, {244.6816, 202.48239999999998`}, { 244.6816, 193.98239999999998`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{145.20899999999997`, 67.08400000000006}, {136.459, 67.08400000000006}, {136.459, 77.58400000000006}, { 145.20899999999997`, 77.58400000000006}, {145.20899999999997`, 67.08400000000006}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{311.0645, 110.70800000000003`}, {295.5645, 110.70800000000003`}, {295.5645, 121.20800000000003`}, { 311.0645, 121.20800000000003`}, {311.0645, 110.70800000000003`}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{351.5645, 108.875}, {339.39649999999995`, 108.875}, { 339.39649999999995`, 119.375}, {351.5645, 119.375}, {351.5645, 108.875}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{86.94730000000001, 74.27050000000003}, { 74.77929999999998, 74.27050000000003}, {74.77929999999998, 84.77050000000003}, {86.94730000000001, 84.77050000000003}, { 86.94730000000001, 74.27050000000003}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{264.9473, 37.89549999999997}, {252.77929999999998`, 37.89549999999997}, {252.77929999999998`, 48.39549999999997}, { 264.9473, 48.39549999999997}, {264.9473, 37.89549999999997}}}], FilledCurveBox[{{{0, 2, 0}, {0, 1, 0}, {0, 1, 0}, {0, 1, 0}}}, {{{259.5723, 59.02050000000003}, {247.40429999999998`, 59.02050000000003}, {247.40429999999998`, 69.52050000000003}, { 259.5723, 69.52050000000003}, {259.5723, 59.02050000000003}}}]}, {Thickness[0.002012072434607646], StyleBox[{ TagBox[InsetBox["sc", {320.92769999999996`, 181.73390000000006`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["sa", {322.9795, 141.73390000000006`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["da", {429.6992, 92.7344}, {Left, Baseline}], "InsetString"], TagBox[InsetBox["d", {408.27049999999997`, 99.56740000000002}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["ea", {202.062, 150.72610000000003`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["tb", {12.203100000000006`, 135.72610000000003`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["ta", {79.37449999999998, 139.09130000000005`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["zt", {146.98440000000002`, 160.47610000000003`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["e", {237.05420000000004`, 195.4248}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["u", {137.5815, 69.52640000000002}, {Left, Baseline}], "InsetString"], TagBox[InsetBox["ra", {430.3154, 30.234399999999994`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["rr", {468.1807000000001, 31.734399999999994`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["ss", {297.7188, 113.15039999999993`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["sb", {339.77049999999997`, 111.31739999999996`}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["ua", {74.87299999999999, 76.71290000000005}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["zf", {254.54590000000002`, 40.33789999999999}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["fa", {248.88960000000003`, 61.46290000000005}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["ub", {20.706500000000005`, 71.87890000000004}, { Left, Baseline}], "InsetString"], TagBox[InsetBox["C", {368.5645, 127.06740000000002`}, { Left, Baseline}], "InsetString"]}, StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["3", {375.7860999999999, 124.06740000000002`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {445.3145, 77.81739999999996}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["1", {452.5360999999999, 74.81739999999996}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {402.8145, 46.317399999999964`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["2", {410.0360999999999, 43.317399999999964`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {84.376, 25.359399999999937`}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["7", {91.5977, 22.359399999999937`}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {213.62599999999998`, 58.484399999999994`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["6", {220.84770000000003`, 55.484399999999994`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {363.08889999999997`, 161.06740000000002`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["3", {373.0938, 158.06740000000002`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {481.83889999999997`, 56.817399999999964`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["1", {491.8438, 53.817399999999964`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {216.51509999999996`, 183.00980000000004`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["4", {223.73679999999996`, 180.00980000000004`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["C", {81.8486, 209.67579999999998`}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.02012072434607646]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["5", {89.0703, 206.67579999999998`}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.012072434607645875`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {141.0391, 224.6748}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["5", {151.04389999999998`, 221.6748}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {232.373, 165.67579999999998`}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["4", {242.3779, 162.67579999999998`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {374.33889999999997`, 72.81739999999996}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["2", {384.34380000000004`, 69.81739999999996}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {120.73339999999999`, 12.693399999999997`}, { Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["7", {130.7383, 9.693399999999997}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["K", {221.23339999999996`, 82.9434}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.030181086519114688`]]}, {Thickness[0.002012072434607646], StyleBox[ TagBox[InsetBox["6", {231.23829999999992`, 79.9434}, {Left, Baseline}], "InsetString"], StripOnInput->False, FontFamily->"Apple Braille Outline 6 Dot", FontSize->Scaled[0.018108651911468817`]]}}, AspectRatio->Automatic, ImageSize->{470.60546875, Automatic}, PlotRange->{{0., 497.}, {0., 238.}}]\)

The motion of the system can be defined using seven angles. The angles are defined as - here. The equations of motion can be derived using Hamiltonian principles, resulting in a a system of equations of the form where is a mass matrix, is a vector of forces, is a vector of constraints, and is Lagrange multipliers.

In[2]:=

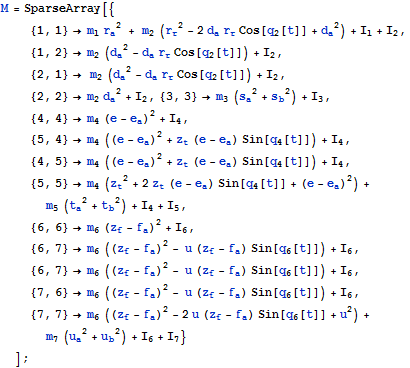

Define the mass matrix associated with the system.

In[3]:=

M = SparseArray[{
    {1, 1} ->
     Subscript[m, 1] Subscript[r, a]^2 +
      Subscript[m,
       2] (Subscript[r, r]^2 -
         2 Subscript[d, a] Subscript[r, r] Cos[Subscript[q, 2][t]] +
         Subscript[d, a]^2) + Subscript[I, 1] + Subscript[I, 2],
    {1, 2} ->
     Subscript[m,
       2] (Subscript[d, a]^2 -
         Subscript[d, a] Subscript[r, r] Cos[Subscript[q, 2][t]]) +
      Subscript[I, 2],
    {2, 1} ->
     Subscript[m,
       2] (Subscript[d, a]^2 -
         Subscript[d, a] Subscript[r, r] Cos[Subscript[q, 2][t]]) +
      Subscript[I, 2],
    {2, 2} ->
     Subscript[m, 2] Subscript[d, a]^2 + Subscript[I, 2], {3, 3} ->
     Subscript[m, 3] (Subscript[s, a]^2 + Subscript[s, b]^2) +
      Subscript[I, 3], {4, 4} ->
     Subscript[m, 4] (e - Subscript[e, a])^2 + Subscript[I, 4],
    {5, 4} ->
     Subscript[m,
       4] ((e - Subscript[e, a])^2 +
         Subscript[z,
          t] (e - Subscript[e, a]) Sin[Subscript[q, 4][t]]) +
      Subscript[I, 4],
    {4, 5} ->
     Subscript[m,
       4] ((e - Subscript[e, a])^2 +
         Subscript[z,
          t] (e - Subscript[e, a]) Sin[Subscript[q, 4][t]]) +
      Subscript[I, 4],
    {5, 5} ->
     Subscript[m,
       4] (Subscript[z, t]^2 +
         2 Subscript[z,
          t] (e - Subscript[e, a]) Sin[Subscript[q, 4][t]] + (e -
           Subscript[e, a])^2) +
      Subscript[m, 5] (Subscript[t, a]^2 + Subscript[t, b]^2) +
      Subscript[I, 4] + Subscript[I, 5],
    {6, 6} ->
     Subscript[m, 6] (Subscript[z, f] - Subscript[f, a])^2 +
      Subscript[I, 6], {6, 7} ->
     Subscript[m,
       6] ((Subscript[z, f] - Subscript[f, a])^2 -
         u (Subscript[z, f] - Subscript[f, a]) Sin[
           Subscript[q, 6][t]]) + Subscript[I, 6],
    {6, 7} ->
     Subscript[m,
       6] ((Subscript[z, f] - Subscript[f, a])^2 -
         u (Subscript[z, f] - Subscript[f, a]) Sin[
           Subscript[q, 6][t]]) + Subscript[I, 6],
    {7, 6} ->
     Subscript[m,
       6] ((Subscript[z, f] - Subscript[f, a])^2 -
         u (Subscript[z, f] - Subscript[f, a]) Sin[
           Subscript[q, 6][t]]) + Subscript[I, 6],
    {7, 7} ->
     Subscript[m,
       6] ((Subscript[z, f] - Subscript[f, a])^2 -
         2 u (Subscript[z, f] - Subscript[f, a]) Sin[
           Subscript[q, 6][t]] + u^2) +
      Subscript[m, 7] (Subscript[u, a]^2 + Subscript[u, b]^2) +
      Subscript[I, 6] + Subscript[I, 7]}
   ];

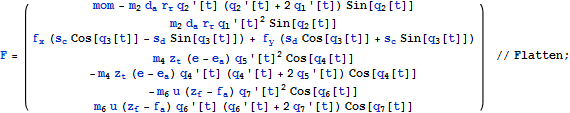

Define the various forces associated with the system.

In[4]:=

In[5]:=

F = ({
     {mom -
       Subscript[m, 2] Subscript[d, a] Subscript[r, r]
         Subscript[q, 2]'[
         t] (Subscript[q, 2]'[t] + 2 Subscript[q, 1]'[t]) Sin[
         Subscript[q, 2][t]]},
     {Subscript[m, 2] Subscript[d, a] Subscript[r, r]
        Subscript[q, 1]'[t]^2 Sin[Subscript[q, 2][t]]},
     {Subscript[f,
        x] (Subscript[s, c] Cos[Subscript[q, 3][t]] -
          Subscript[s, d] Sin[Subscript[q, 3][t]]) +
       Subscript[f,
        y] (Subscript[s, d] Cos[Subscript[q, 3][t]] +
          Subscript[s, c] Sin[Subscript[q, 3][t]])},
     {Subscript[m, 4] Subscript[z,
       t] (e - Subscript[e, a]) Subscript[q, 5]'[t]^2 Cos[
        Subscript[q, 4][t]]},
     {-Subscript[m, 4] Subscript[z,
       t] (e - Subscript[e, a]) Subscript[q, 4]'[
        t] (Subscript[q, 4]'[t] + 2 Subscript[q, 5]'[t]) Cos[
        Subscript[q, 4][t]]},
     {-Subscript[m, 6]
         u (Subscript[z, f] - Subscript[f, a]) Subscript[q, 7]'[
        t]^2 Cos[Subscript[q, 6][t]]},
     {Subscript[m, 6]
        u (Subscript[z, f] - Subscript[f, a]) Subscript[q, 6]'[
        t] (Subscript[q, 6]'[t] + 2 Subscript[q, 7]'[t]) Cos[
        Subscript[q, 7][t]]}
    })  // Flatten;

Define the constraint vector associated with the various links.

In[6]:=

g = ({
     {Subscript[r, r] Cos[Subscript[q, 1][t]] -
       d Cos[Subscript[q, 1][t] + Subscript[q, 2][t]] -
       Subscript[s, s] Sin[Subscript[q, 3][t]] - Subscript[x, b]},
     {Subscript[r, r] Sin[Subscript[q, 1][t]] -
       d Sin[Subscript[q, 1][t] + Subscript[q, 2][t]] +
       Subscript[s, s] Cos[Subscript[q, 3][t]] - Subscript[y, b]},
     {Subscript[r, r] Cos[Subscript[q, 1][t]] -
       d Cos[Subscript[q, 1][t] + Subscript[q, 2][t]] -
       e Sin[Subscript[q, 4][t] + Subscript[q, 5][t]] -
       Subscript[z, t] Cos[Subscript[q, 5][t]] - Subscript[x, a]},
     {Subscript[r, r] Sin[Subscript[q, 1][t]] -
       d Sin[Subscript[q, 1][t] + Subscript[q, 2][t]] +
       e Cos[Subscript[q, 4][t] + Subscript[q, 5][t]] -
       Subscript[z, t] Sin[Subscript[q, 5][t]] - Subscript[y, a]},
     {Subscript[r, r] Cos[Subscript[q, 1][t]] -
       d Cos[Subscript[q, 1][t] + Subscript[q, 2][t]] -
       Subscript[z, f] Cos[Subscript[q, 6][t] + Subscript[q, 7][t]] -
       u Sin[Subscript[q, 7][t]] - Subscript[x, a]},
     {Subscript[r, r] Sin[Subscript[q, 1][t]] -
       d Sin[Subscript[q, 1][t] + Subscript[q, 2][t]] -
       Subscript[z, f] Sin[Subscript[q, 6][t] + Subscript[q, 7][t]] +
       u Cos[Subscript[q, 7][t]] - Subscript[y, a]}
    }) // Flatten;

Construct the equations and the constraint equations with particular values of the parameters.

In[7]:=

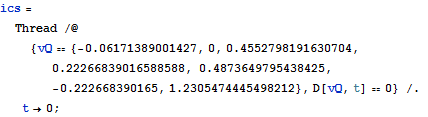

Define the initial state of the system to be at rest, with a particular set of angles.

In[8]:=

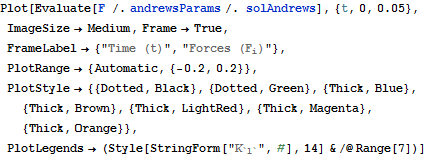

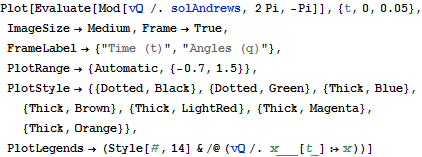

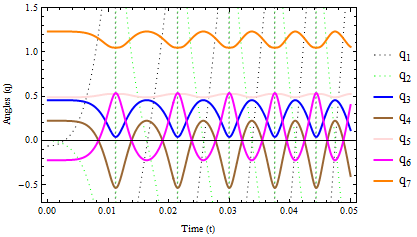

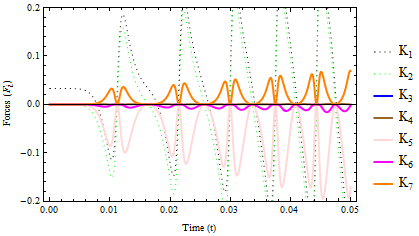

Solve the system and plot the angles and the forces. The motion of the links becomes faster as time progresses. The lines are color coded based on the color of the links.

In[9]:=

Out[10]=

Out[11]=

Out[12]=
