Advanced Image Processing with Large Image Support
Visualize the Gradient Direction
Visualize gradient orientation weighted with the gradient magnitudes.
In[1]:=
In[2]:=
X
orientation = GradientOrientationFilter[i, 1] // ImageAdjust; magnitude = GradientFilter[i, 1] // ImageAdjust;
In[3]:=
X

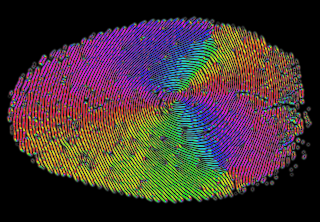

ColorCombine[{orientation, magnitude, magnitude}, "HSB"]
Out[3]=
