Enhanced Control Systems
Design a Smith Predictor for a Tank Reactor
An isothermal continuous stirred-tank reactor (CSTR) can be modeled by a first-order-plus-time-delay system.
In[1]:=
X
reactor = TransferFunctionModel[Unevaluated[{{E^(-\[Delta] s)/(1 + s)}}], s, SamplingPeriod ->None, SystemsModelLabels -> None];

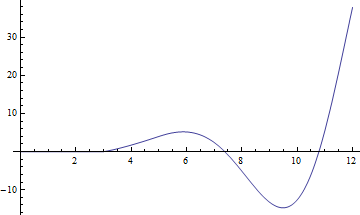

Designing a PI controller with the delay set to zero results in an unstable closed-loop system.
In[2]:=
X
pi = PIDTune[reactor /. \[Delta] -> 0, "PI"]; closedloop = SystemsModelFeedbackConnect[SystemsModelSeriesConnect[pi, reactor]]
Out[2]=
In[3]:=
X
pi = PIDTune[reactor /. \[Delta] -> 0, "PI"]; closedloop = SystemsModelFeedbackConnect[SystemsModelSeriesConnect[pi, reactor]]; OutputResponse[closedloop /. \[Delta] -> 2, UnitStep[t - 1], {t, 0, 12}]; Plot[%, {t, 0, 12}, PlotRange -> All, ImageSize -> Medium]
Out[3]=

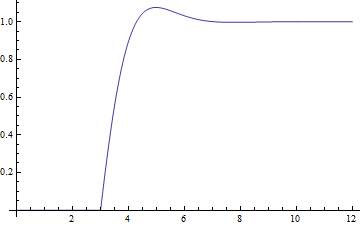

Use
SmithDelayCompensator
to create a stabilizing controller for the time-delay system.
In[4]:=
X
smith = SmithDelayCompensator[reactor, pi]; closedloopSmith = SystemsModelFeedbackConnect[ SystemsModelSeriesConnect[smith, reactor]]
Out[4]=
In[5]:=
X
smith = SmithDelayCompensator[reactor, pi]; closedloopSmith = SystemsModelFeedbackConnect[ SystemsModelSeriesConnect[smith, reactor]]; OutputResponse[closedloopSmith /. \[Delta] -> 2, UnitStep[t - 1], {t, 0, 12}]; Plot[%, {t, 0, 12}, PlotRange -> All, ImageSize -> Medium]
Out[5]=
