Reliability of a Space Launch

In[1]:=

In[2]:=

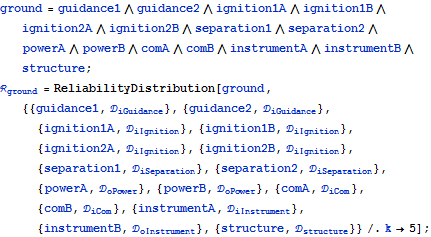

ground = guidance1 \[And] guidance2 \[And] ignition1A \[And]
   ignition1B \[And] ignition2A \[And] ignition2B \[And]
   separation1 \[And] separation2 \[And] powerA \[And] powerB \[And]
   comA \[And] comB \[And] instrumentA \[And] instrumentB \[And]
   structure;
Subscript[\[ScriptCapitalR], ground] =
  ReliabilityDistribution[
   ground, {{guidance1, Subscript[\[ScriptCapitalD],
      iGuidance]}, {guidance2, Subscript[\[ScriptCapitalD],
      iGuidance]}, {ignition1A, Subscript[\[ScriptCapitalD],
      iIgnition]}, {ignition1B, Subscript[\[ScriptCapitalD],
      iIgnition]}, {ignition2A, Subscript[\[ScriptCapitalD],
      iIgnition]}, {ignition2B, Subscript[\[ScriptCapitalD],
      iIgnition]}, {separation1, Subscript[\[ScriptCapitalD],
      iSeparation]}, {separation2, Subscript[\[ScriptCapitalD],
      iSeparation]}, {powerA, Subscript[\[ScriptCapitalD],
      oPower]}, {powerB, Subscript[\[ScriptCapitalD], oPower]}, {comA,
       Subscript[\[ScriptCapitalD], iCom]}, {comB,
      Subscript[\[ScriptCapitalD], iCom]}, {instrumentA,
      Subscript[\[ScriptCapitalD], iInstrument]}, {instrumentB,
      Subscript[\[ScriptCapitalD], oInstrument]}, {structure,
      Subscript[\[ScriptCapitalD], structure]}} /. k -> 5];

In[3]:=

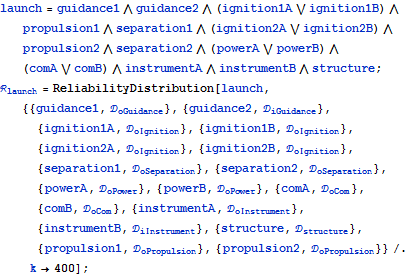

launch = guidance1 \[And]
   guidance2 \[And] (ignition1A \[Or] ignition1B) \[And]
   propulsion1 \[And]
   separation1 \[And] (ignition2A \[Or] ignition2B) \[And]
   propulsion2 \[And]
   separation2 \[And] (powerA \[Or] powerB) \[And] (comA \[Or]
     comB) \[And] instrumentA \[And] instrumentB \[And] structure;
Subscript[\[ScriptCapitalR], launch] =
  ReliabilityDistribution[
   launch, {{guidance1, Subscript[\[ScriptCapitalD],
      oGuidance]}, {guidance2, Subscript[\[ScriptCapitalD],
      iGuidance]}, {ignition1A, Subscript[\[ScriptCapitalD],
      oIgnition]}, {ignition1B, Subscript[\[ScriptCapitalD],
      oIgnition]}, {ignition2A, Subscript[\[ScriptCapitalD],
      oIgnition]}, {ignition2B, Subscript[\[ScriptCapitalD],
      oIgnition]}, {separation1, Subscript[\[ScriptCapitalD],
      oSeparation]}, {separation2, Subscript[\[ScriptCapitalD],
      oSeparation]}, {powerA, Subscript[\[ScriptCapitalD],
      oPower]}, {powerB, Subscript[\[ScriptCapitalD], oPower]}, {comA,
       Subscript[\[ScriptCapitalD], oCom]}, {comB,
      Subscript[\[ScriptCapitalD], oCom]}, {instrumentA,
      Subscript[\[ScriptCapitalD], oInstrument]}, {instrumentB,
      Subscript[\[ScriptCapitalD], iInstrument]}, {structure,
      Subscript[\[ScriptCapitalD], structure]}, {propulsion1,
      Subscript[\[ScriptCapitalD], oPropulsion]}, {propulsion2,
      Subscript[\[ScriptCapitalD], oPropulsion]}} /. k -> 400];

In[4]:=

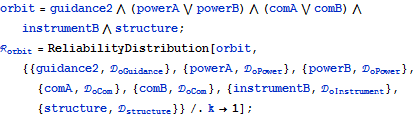

In[5]:=

In[6]:=

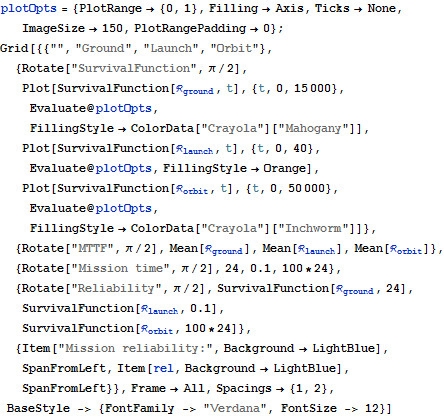

plotOpts = {PlotRange -> {0, 1}, Filling -> Axis, Ticks -> None,
   ImageSize -> 150, PlotRangePadding -> 0};
Grid[{{"", "Ground", "Launch",
   "Orbit"}, {Rotate["SurvivalFunction", \[Pi]/2],
   Plot[SurvivalFunction[Subscript[\[ScriptCapitalR], ground], t], {t,
      0, 15000}, Evaluate@plotOpts,
    FillingStyle -> ColorData["Crayola"]["Mahogany"]],
   Plot[SurvivalFunction[Subscript[\[ScriptCapitalR], launch], t], {t,
      0, 40}, Evaluate@plotOpts, FillingStyle -> Orange],
   Plot[SurvivalFunction[Subscript[\[ScriptCapitalR], orbit], t], {t,
     0, 50000}, Evaluate@plotOpts,
    FillingStyle -> ColorData["Crayola"]["Inchworm"]]}, {Rotate[
    "MTTF", \[Pi]/2], Mean[Subscript[\[ScriptCapitalR], ground]],
   Mean[Subscript[\[ScriptCapitalR], launch]],
   Mean[Subscript[\[ScriptCapitalR], orbit]]}, {Rotate[
    "Mission time", \[Pi]/2], 24, 0.1,
   100*24}, {Rotate["Reliability", \[Pi]/2],
   SurvivalFunction[Subscript[\[ScriptCapitalR], ground], 24],
   SurvivalFunction[Subscript[\[ScriptCapitalR], launch], 0.1],
   SurvivalFunction[Subscript[\[ScriptCapitalR], orbit],
    100*24]}, {Item["Mission reliability:", Background -> LightBlue],
   SpanFromLeft, Item[rel, Background -> LightBlue], SpanFromLeft}},
 Frame -> All, Spacings -> {1, 2},
 BaseStyle -> {FontFamily -> "Verdana", FontSize -> 12}]

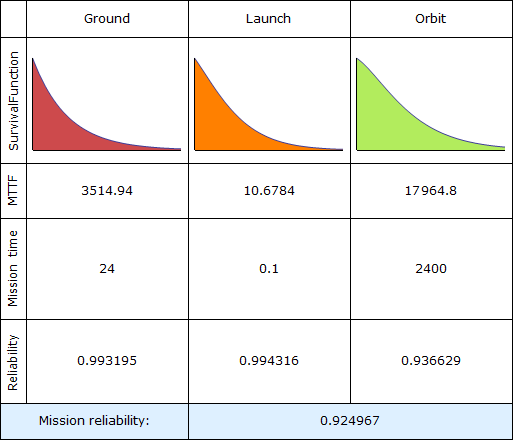

Model a launch into space in three phases: a ground check, a launch phase, and in orbit. The three phases have environmental harshness factors of 5400 and 1.

Out[6]=
