Analyze Properties of Chemical Compounds

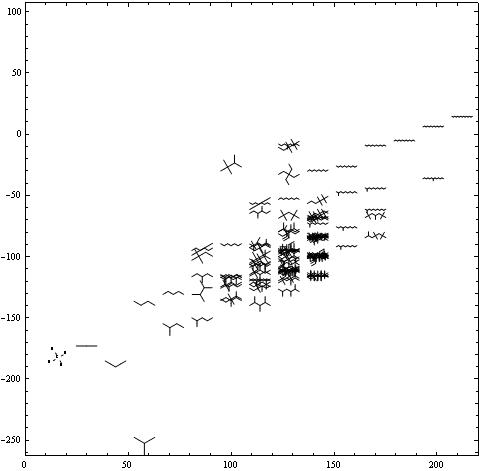

Mathematica 6 lets you immediately take large-scale chemical data and do new analysis and visualization. This is a plot of melting point against molecular weight for alkanes.
In[1]:=

Click for copyable input

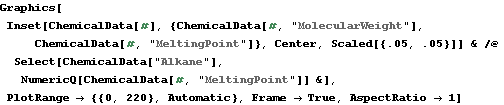

Graphics[Inset[

    ChemicalData[#], {ChemicalData[#, "MolecularWeight"],

     ChemicalData[#, "MeltingPoint"]}, Center, Scaled[{.05, .05}]] & /@

  Select[ChemicalData["Alkane"],

   NumericQ[ChemicalData[#, "MeltingPoint"]] &],

 PlotRange -> {{0, 220}, Automatic}, Frame -> True, AspectRatio -> 1]
Out[1]=
