Construct Arbitrarily Sophisticated Palettes

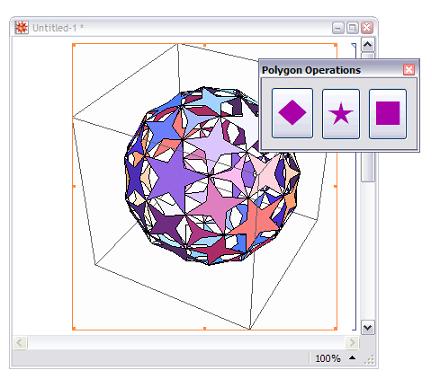

With an unprecedentedly high functionality-to-code ratio, Mathematica 6 allows you to create arbitrarily sophisticated palettes, here for performing operations on 3D objects.
In[1]:=

Click for copyable input

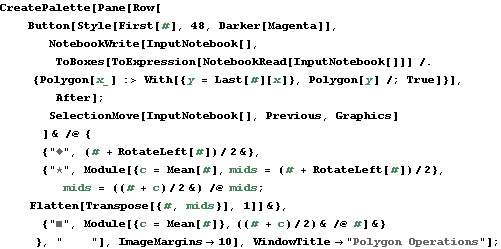

CreatePalette[Pane[Row[

    Button[Style[First[#], 48, Darker[Magenta]],

       NotebookWrite[InputNotebook[],

        ToBoxes[ToExpression[NotebookRead[InputNotebook[]]] /.

                     {Polygon[x_] :>

            With[{y = Last[#][x]}, Polygon[y] /; True]}], After];

       SelectionMove[InputNotebook[], Previous, Graphics]

       ] & /@ {

      {"\[FilledDiamond]", (# + RotateLeft[#])/2 &},

      {"\[FivePointedStar]",

       Module[{c = Mean[#], mids = (# + RotateLeft[#])/2},

         mids = ((# + c)/2 &) /@ mids;

                   Flatten[Transpose[{#, mids}], 1]] &},

      {"\[FilledSquare]",

       Module[{c = Mean[#]}, ((# + c)/2) & /@ #] &}

      }, "    "], ImageMargins -> 10],

  WindowTitle -> "Polygon Operations"];
