Experiment with New Forms of Controls

New in Wolfram Mathematica 6: Symbolic Interface Construction

Mathematica 6 provides an unprecedentedly flexible interface experimentation system, allowing not only traditional controls, but arbitrary graphics, layout and actions, as well as connection to arbitrary human interface devices.

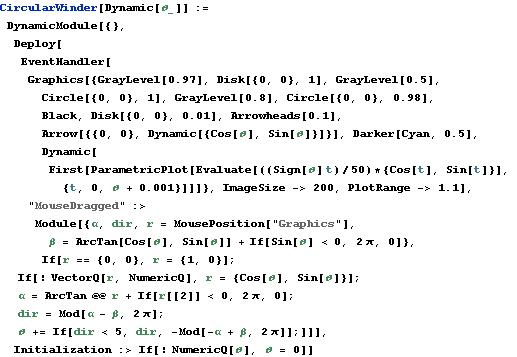

In[1]:=

CircularWinder[Dynamic[\[Theta]_]] :=

 DynamicModule[{},

  Deploy[EventHandler[

    Graphics[{GrayLevel[0.97], Disk[{0, 0}, 1], GrayLevel[0.5],

      Circle[{0, 0}, 1], GrayLevel[0.8], Circle[{0, 0}, 0.98], Black,

      Disk[{0, 0}, 0.01], Arrowheads[0.1],

      Arrow[{{0, 0}, Dynamic[{Cos[\[Theta]], Sin[\[Theta]]}]}],

      Darker[Cyan, 0.5],

      Dynamic[First[

        ParametricPlot[

         Evaluate[((Sign[\[Theta]] t)/50)*{Cos[t], Sin[t]}], {t,

          0, \[Theta] + 0.001}]]]}, ImageSize -> 200,

     PlotRange -> 1.1],

    "MouseDragged" :>

     Module[{\[Alpha], dir,

       r = MousePosition["Graphics"], \[Beta] =

        ArcTan[Cos[\[Theta]], Sin[\[Theta]]] +

         If[Sin[\[Theta]] < 0, 2 \[Pi], 0]},

      If[r == {0, 0}, r = {1, 0}];



      If[! VectorQ[r, NumericQ], r = {Cos[\[Theta]], Sin[\[Theta]]}];

            \[Alpha] = ArcTan @@ r + If[r[[2]] < 0, 2 \[Pi], 0];

            dir = Mod[\[Alpha] - \[Beta], 2 \[Pi]];

            \[Theta] +=

       If[dir < 5, dir, -Mod[-\[Alpha] + \[Beta], 2 \[Pi]]];]]],

  Initialization :> If[! NumericQ[\[Theta]], \[Theta] = 0]]

In[2]:=

DynamicModule[{a = 0, b = 0},

 Column[{{CircularWinder[Dynamic[a]], CircularWinder[Dynamic[b]]},

   Framed[Dynamic[{a, b, a - b, a + b}], Background -> LightYellow]},

  Center]]

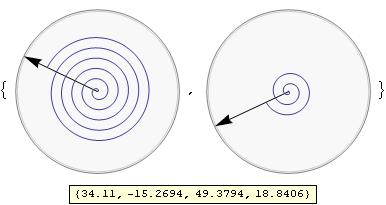

Out[2]=
