Combine Labels and Legends
Combine labels and legends.
In[1]:=

Click for copyable input

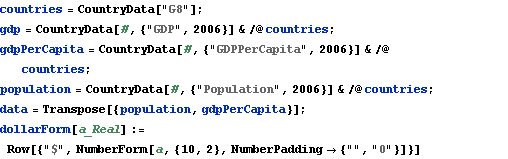

countries = CountryData["G8"];

gdp = CountryData[#, {"GDP", 2006}] & /@ countries;

gdpPerCapita = CountryData[#, {"GDPPerCapita", 2006}] & /@ countries;

population = CountryData[#, {"Population", 2006}] & /@ countries;

data = Transpose[{population, gdpPerCapita}];

dollarForm[a_Real] :=

 Row[{"$", NumberForm[a, {10, 2}, NumberPadding -> {"", "0"}]}]
In[2]:=

Click for copyable input

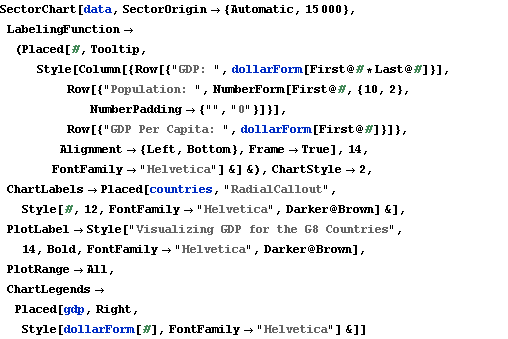

SectorChart[data, SectorOrigin -> {Automatic, 15000},

 LabelingFunction -> (Placed[#, Tooltip,

     Style[Column[{Row[{"GDP: ", dollarForm[First@#*Last@#]}],

         Row[{"Population: ",

           NumberForm[First@#, {10, 2}, NumberPadding -> {"", "0"}]}],

          Row[{"GDP Per Capita: ", dollarForm[First@#]}]},

        Alignment -> {Left, Bottom}, Frame -> True], 14,

       FontFamily -> "Helvetica"] &] &), ChartStyle -> 2,

 ChartLabels ->

  Placed[countries, "RadialCallout",

   Style[#, 12, FontFamily -> "Helvetica", Darker@Brown] &],

 PlotLabel ->

  Style["Visualizing GDP for the G8 Countries", 14, Bold,

   FontFamily -> "Helvetica", Darker@Brown], PlotRange -> All,

 ChartLegends ->

  Placed[gdp, Right,

   Style[dollarForm[#], FontFamily -> "Helvetica"] &]]

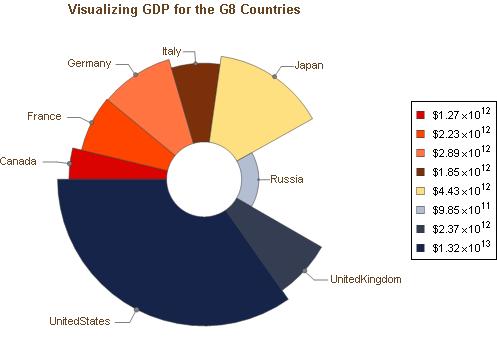

Out[2]=
