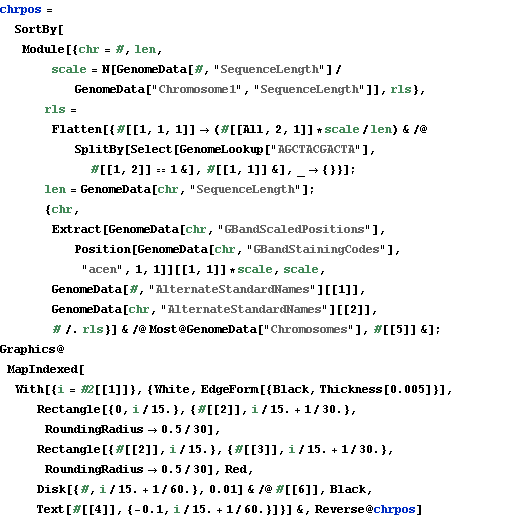

chrpos = SortBy[

   Module[{chr = #, len,

       scale = N[

         GenomeData[#, "SequenceLength"]/

          GenomeData["Chromosome1", "SequenceLength"]], rls},

      rls = Flatten[{#[[1, 1, 1]] -> (#[[All, 2, 1]]*scale/len) & /@

          SplitBy[Select[

            GenomeLookup["AGCTACGACTA"], #[[1, 2]] == 1 &], #[[1,

             1]] &], _ -> {}}];

      len = GenomeData[chr, "SequenceLength"];

      {chr,

       Extract[GenomeData[chr, "GBandScaledPositions"],

          Position[GenomeData[chr, "GBandStainingCodes"], "acen", 1,

           1]][[1, 1]]*scale, scale,

       GenomeData[#, "AlternateStandardNames"][[1]],

       GenomeData[chr, "AlternateStandardNames"][[2]], # /. rls}] & /@

     Most@GenomeData["Chromosomes"], #[[5]] &];

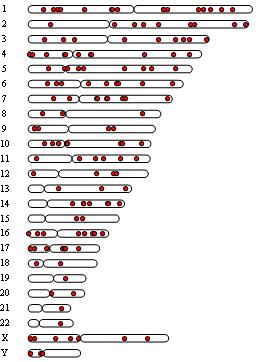

Graphics@MapIndexed[

  With[{i = #2[[1]]}, {White, EdgeForm[{Black, Thickness[0.005]}],

     Rectangle[{0, i/15.}, {#[[2]], i/15. + 1/30.},

      RoundingRadius -> 0.5/30],

     Rectangle[{#[[2]], i/15.}, {#[[3]], i/15. + 1/30.},

      RoundingRadius -> 0.5/30], Red,

     Disk[{#, i/15. + 1/60.}, 0.01] & /@ #[[6]], Black,

     Text[#[[4]], {-0.1, i/15. + 1/60.}]}] &, Reverse@chrpos]
