Build Mercator Projection of Continents using InverseGudermannian
The Mercator map projection transforms the longitude (in radians) into gd-1().

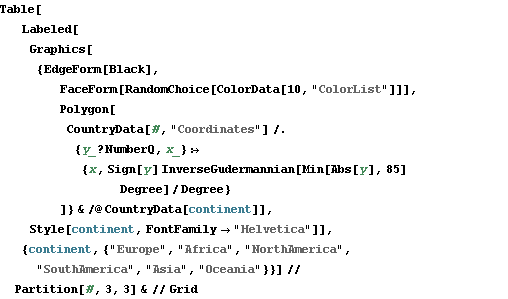

In[1]:=

Click for copyable input
Table[Labeled[

    Graphics[{EdgeForm[Black],

        FaceForm[RandomChoice[ColorData[10, "ColorList"]]], Polygon[

         CountryData[#,

           "Coordinates"] /. {y_?NumberQ, x_} :> {x,

            Sign[y] InverseGudermannian[Min[Abs[y], 85] Degree]/Degree}

         ]} & /@ CountryData[continent]],

    Style[continent,

     FontFamily -> "Helvetica"]], {continent, {"Europe", "Africa",

     "NorthAmerica", "SouthAmerica", "Asia", "Oceania"}}] //

  Partition[#, 3, 3] & // Grid

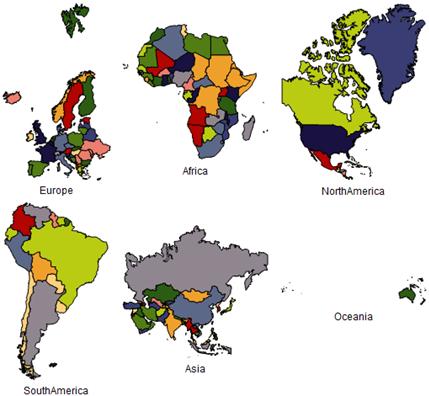

Out[1]=
