Instantly Visualize Protein Sequence Alignments

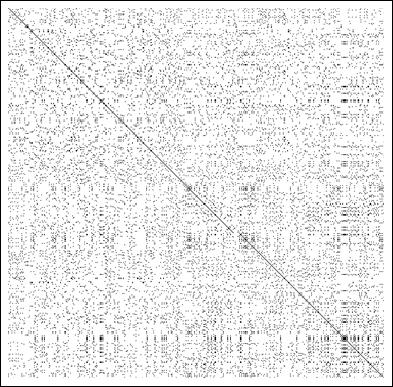

Display the matrix dot plot for two closely related protein sequences.

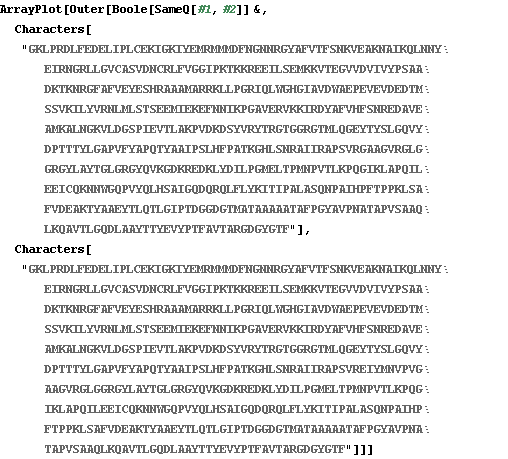

In[1]:=

Click for copyable input
ArrayPlot[

 Outer[Boole[SameQ[#1, #2]] &,

  Characters[

   "GKLPRDLFEDELIPLCEKIGKIYEMRMMMDFNGNNRGYAFVTFSNKVEAKNAIKQLNNYEIRNGRL\

LGVCASVDNCRLFVGGIPKTKKREEILSEMKKVTEGVVDVIVYPSAADKTKNRGFAFVEYESHRAAAMAR\

RKLLPGRIQLWGHGIAVDWAEPEVEVDEDTMSSVKILYVRNLMLSTSEEMIEKEFNNIKPGAVERVKKIR\

DYAFVHFSNREDAVEAMKALNGKVLDGSPIEVTLAKPVDKDSYVRYTRGTGGRGTMLQGEYTYSLGQVYD\

PTTTYLGAPVFYAPQTYAAIPSLHFPATKGHLSNRAIIRAPSVRGAAGVRGLGGRGYLAYTGLGRGYQVK\

GDKREDKLYDILPGMELTPMNPVTLKPQGIKLAPQILEEICQKNNWGQPVYQLHSAIGQDQRQLFLYKIT\

IPALASQNPAIHPFTPPKLSAFVDEAKTYAAEYTLQTLGIPTDGGDGTMATAAAAATAFPGYAVPNATAP\

VSAAQLKQAVTLGQDLAAYTTYEVYPTFAVTARGDGYGTF"],

  Characters[

   "GKLPRDLFEDELIPLCEKIGKIYEMRMMMDFNGNNRGYAFVTFSNKVEAKNAIKQLNNYEIRNGRL\

LGVCASVDNCRLFVGGIPKTKKREEILSEMKKVTEGVVDVIVYPSAADKTKNRGFAFVEYESHRAAAMAR\

RKLLPGRIQLWGHGIAVDWAEPEVEVDEDTMSSVKILYVRNLMLSTSEEMIEKEFNNIKPGAVERVKKIR\

DYAFVHFSNREDAVEAMKALNGKVLDGSPIEVTLAKPVDKDSYVRYTRGTGGRGTMLQGEYTYSLGQVYD\

PTTTYLGAPVFYAPQTYAAIPSLHFPATKGHLSNRAIIRAPSVREIYMNVPVGAAGVRGLGGRGYLAYTG\

LGRGYQVKGDKREDKLYDILPGMELTPMNPVTLKPQGIKLAPQILEEICQKNNWGQPVYQLHSAIGQDQR\

QLFLYKITIPALASQNPAIHPFTPPKLSAFVDEAKTYAAEYTLQTLGIPTDGGDGTMATAAAAATAFPGY\

AVPNATAPVSAAQLKQAVTLGQDLAAYTTYEVYPTFAVTARGDGYGTF"]]]
Out[1]=
