New in Wolfram Mathematica 7: Statistical Model Analysis ◄ previous | next ►
Compute and Visualize Results for an ANCOVA Model
Fit data to an analysis of covariance model, extract the ANOVA table and visualize the level curves for the four treatment groups.
In[1]:=

Click for copyable input

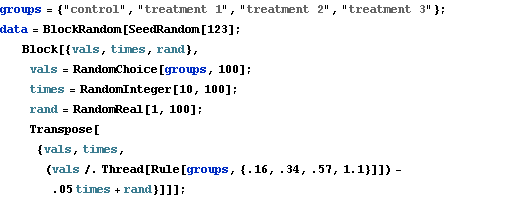

groups = {"control", "treatment 1", "treatment 2", "treatment 3"};

data = BlockRandom[SeedRandom[123];

   Block[{vals, times, rand},

    vals = RandomChoice[groups, 100];

    times = RandomInteger[10, 100];

    rand = RandomReal[1, 100];

    Transpose[{vals,

      times, (vals /.

         Thread[Rule[groups, {.16, .34, .57, 1.1}]]) - .05 times +

       rand}]]];
In[2]:=

Click for copyable input

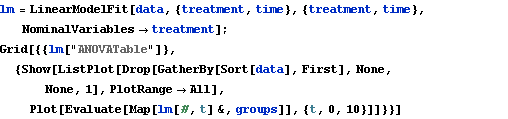

lm = LinearModelFit[data, {treatment, time}, {treatment, time},

   NominalVariables -> treatment];

Grid[{{lm["ANOVATable"]}, {Show[

    ListPlot[Drop[GatherBy[Sort[data], First], None, None, 1],

     PlotRange -> All],

    Plot[Evaluate[Map[lm[#, t] &, groups]], {t, 0, 10}]]}}]

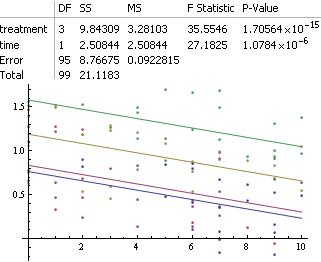

Out[2]=
