Technology

webMathematica integrates effortlessly with standard web technologies. You choose, install, and configure the web server, Java, and servlet container of your choice on the supported platform of your choice.

Processing Requests
webMathematica Pages
Specifications
Compatibility

How webMathematica Processes a Request

1. Make Request
2. Acquire Kernel
3. Process Page
4. Release Kernel
5. Return Result
The browser sends an HTPP request to the web server.
The browser sends an HTTP request to the web server. The request references a particular webMathematica page and includes variables and their values. Then the web server performs any preprocessing steps, such as authentication, and forwards the request to webMathematica.
1. Make Request
2. Acquire Kernel
3. Process Page
4. Release Kernel
5. Return Result
webMathematica's Kernel Manager acquires a Mathematica kernel for the request from a pool of preinitialized kernels.
webMathematica's kernel manager acquires a Mathematica kernel for the request from a pool of preinitialized kernels. Any variables and values are sent to this kernel.
1. Make Request
2. Acquire Kernel
3. Process Page
4. Release Kernel
5. Return Result
The Mathematica kernel loads the web page and processes any webMathematica tags.
The Mathematica kernel loads the web page and processes any webMathematica tags. The kernel builds and then returns the result.
1. Make Request
2. Acquire Kernel
3. Process Page
4. Release Kernel
5. Return Result
webMathematica accepts the response, adds HTTP headers, and clears settings on and releases the kernel.
webMathematica accepts the response and adds all of the necessary HTTP headers for return to the browser. webMathematica then clears any temporary settings in the Mathematica kernel and releases the kernel to its pool of available kernels.
1. Make Request
2. Acquire Kernel
3. Process Page
4. Release Kernel
5. Return Result
The web server performs any postprocessing steps and returns an HTML response—which may use applets, plug-ins, or other features of dynamic HTML—to the browser.
The web server performs any postprocessing steps and returns an HTML response—which may use applets, plug-ins, or other features of dynamic HTML—to the browser. Alternatively, the response can be in some other format, such as MathML, TeX, or a Mathematica notebook.
Processing Requests
webMathematica Pages
Specifications
Compatibility

webMathematica Pages

webMathematica is based on Mathematica and two standard Java technologies: Java Servlets and JavaServer Pages (JSP). Servlets are special Java programs that run in a Java-enabled web server, which is typically called a "servlet container" (or sometimes a "servlet engine"). There are many different types of servlet containers that can run on many different operating systems and architectures. The servlet containers can also be integrated into other web servers, such as the Apache web server.

webMathematica allows a site to deliver HTML pages that are enhanced by the addition of Mathematica commands. When a request is made for one of these pages, the Mathematica commands are evaluated and the computed result is inserted into the page. This is done with a standard Java technology, JSP, making use of custom tags.

webMathematica technology uses the request/response standard followed by web servers. Input can come from HTML forms, applets, JavaScript, and web-enabled applications. It is also possible to send data files to a webMathematica server for processing. Output can use many different formats, such as HTML, images, Mathematica notebooks, MathML, SVG, XML, PostScript, and PDF. The webMathematica User Guide includes examples that show how to produce these and other formats.

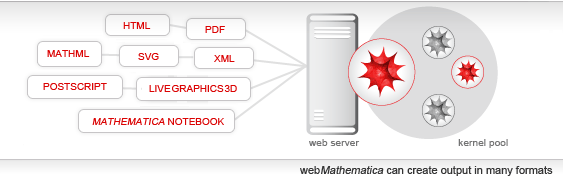

webMathematica can create output in many formats
Processing Requests
webMathematica Pages
Specifications
Compatibility

Specifications

Constituent Technology Included in webMathematica

  • Mathematica 9
  • The webMathematica web application, a special configuration of files arranged to run inside a servlet container (includes J/Link, webMathematica packages, and various Java class files)
  • The webMathematica kernel manager, providing support for launching and shutting down Mathematica kernels and for configuring and monitoring the site as it operates
  • LiveGraphics3D, a Java applet for displaying and manipulating three-dimensional graphics

Documentation and Examples Included in webMathematica

  • webMathematica User Guide
  • Example webMathematica pages and templates
  • Sample configuration files
  • Sample applets
  • Sample web pages
  • Sample images
  • Mathematica and Java source code for all constituent technology except Mathematica 9 and LiveGraphics3D

Compatibility

  • Server Technologies
    Java Servlets and JSP
  • Supported Java Versions
    Recommended: Java 5 or later
  • Servlet Engines
    Any engine compatible with Servlet 2.4 or later, such as Apache Tomcat
  • Web Servers with Tested Compatibility
    Apache HTTP server, Microsoft IIS
  • Supported Server Systems
    Any system supporting Mathematica 9 and Java 5 or later

Miscellaneous

  • Security Features
    Full compatibility with standard web-server security such as firewalls, trusted hosts, and HTTP-specific features; Mathematica-specific security to prevent execution of system-specific commands
  • Performance Overhead
    Start-up overhead removed by Mathematica session caching, linear performance as load increases, multiple Mathematica licenses supported (suitable for multiprocessor machines), minimal overhead over normal Mathematica computation time
Processing Requests
webMathematica Pages
Specifications
Compatibility

Compatibility

Compatible Server Technology

  • Java Servlet 2.4 or later
  • JavaServer Pages (JSP) 2.0 or later

Supported Java Versions

  • Versions 1.4, 5.0, and 6.0
