Fix Data Entry Errors in a Voting Result Tracker

You can now remove databin entries.

Create a databin to store election results as they come in.

In[1]:=

votes = CreateDatabin[]

Out[1]=

Populate the databin and plot the fraction of the vote for each choice so far.

In[2]:=

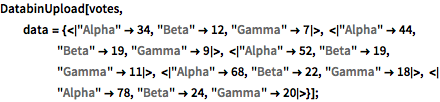

DatabinUpload[votes, data = {<|"Alpha" -> 34, "Beta" -> 12, "Gamma" -> 7|>, <| "Alpha" -> 44, "Beta" -> 19, "Gamma" -> 9|>, <|"Alpha" -> 52, "Beta" -> 19, "Gamma" -> 11|>, <|"Alpha" -> 68, "Beta" -> 22, "Gamma" -> 18|>, <|"Alpha" -> 78, "Beta" -> 24, "Gamma" -> 20|>}];

In[3]:=

ListLinePlot[ Merge[Map[Map[Function[val, Round[100.0*val/Total[Values[#]]]], #] &, votes["Entries"]], Identity], PlotRange -> {0, All}, PlotLabel -> "Percentage of Vote as it Came In"]

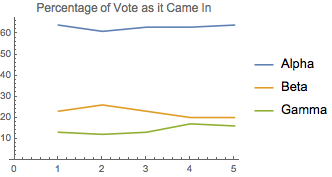

Out[3]=

A manually entered data point accidentally switches values for two candidates and can be seen as an incorrect crossing in the plot.

In[4]:=

DatabinAdd[votes, <|"Alpha" -> 86, "Beta" -> 22, "Gamma" -> 26|>];

In[5]:=

ListLinePlot[ Merge[Map[Map[Function[val, Round[100.0*val/Total[Values[#]]]], #] &, votes["Entries"]], Identity], PlotRange -> {0, All}, PlotLabel -> "Percentage of Vote as it Came In"]

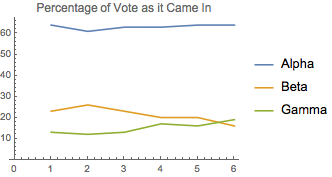

Out[5]=

Correct the databin by removing the most recent entry and adding the correct entry.

In[6]:=

DatabinRemove[votes, -1];

In[7]:=

DatabinAdd[votes, <|"Alpha" -> 86, "Beta" -> 26, "Gamma" -> 22|>];

In[8]:=

ListLinePlot[ Merge[Map[Map[Function[val, Round[100.0*val/Total[Values[#]]]], #] &, votes["Entries"]], Identity], PlotRange -> {0, All}, PlotLabel -> "Percentage of Vote as it Came In"]

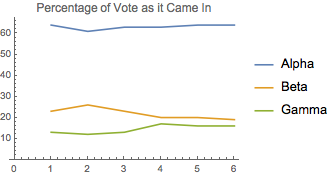

Out[8]=
