Image Recognition Using Deep Learning

Deep learning can be applied to many image processing and computer vision problems with great success. Using NetChain and NetTrain, you can define and train a neural network that categorizes a handwritten digit given an image.

Obtain training and validation data from the MNIST database of handwritten digits.

Copy to clipboard.
In[1]:=
Click for copyable input
resource = ResourceObject["MNIST"]; trainingData = ResourceData[resource, "TrainingData"]; testData = ResourceData[resource, "TestData"];
Copy to clipboard.
In[2]:=
Click for copyable input
RandomSample[trainingData, 5]
Out[2]=

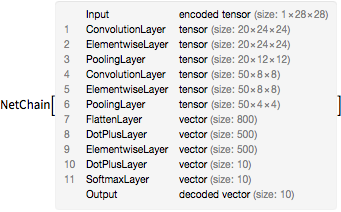

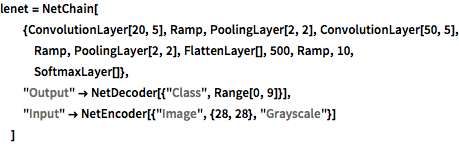

Design a convolutional neural network architected for recognizing 28×28 grayscale images.

Copy to clipboard.
In[3]:=
Click for copyable input
lenet = NetChain[ {ConvolutionLayer[20, 5], Ramp, PoolingLayer[2, 2], ConvolutionLayer[50, 5], Ramp, PoolingLayer[2, 2], FlattenLayer[], 500, Ramp, 10, SoftmaxLayer[]}, "Output" -> NetDecoder[{"Class", Range[0, 9]}], "Input" -> NetEncoder[{"Image", {28, 28}, "Grayscale"}] ]
Out[3]=

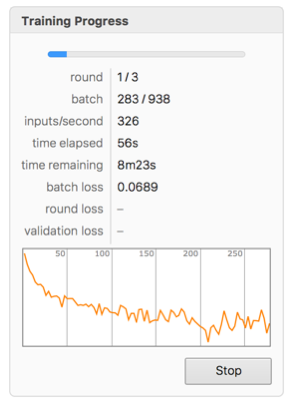

Train the network for three training rounds.

Copy to clipboard.
In[4]:=
Click for copyable input
lenet = NetTrain[lenet, trainingData, ValidationSet -> testData, MaxTrainingRounds -> 3];
Out[4]=

Evaluate the trained network directly on images randomly sampled from the validation set.

Copy to clipboard.
In[5]:=
Click for copyable input
imgs = Keys @ RandomSample[testData, 5]; Thread[imgs -> lenet[imgs]]
Out[5]=
