计算插值数据的热力学值

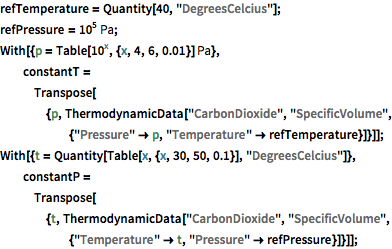

从 ThermodynamicData 取得恒压和恒温下的 CO_2 体积数据.

显示完整的 Wolfram 语言输入

对数据插值并得到 和 .

In[2]:=
Click for copyable input
X

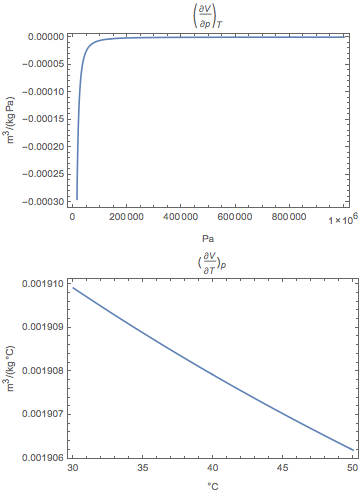

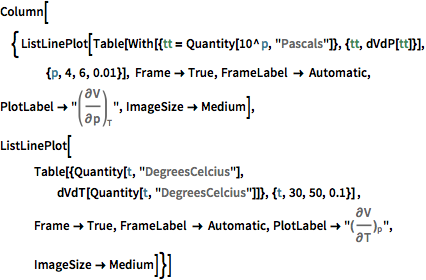

绘制估计的导数图.

显示完整的 Wolfram 语言输入
Out[3]=

使用插值数据从等容热容计算等压热容.

In[4]:=
Click for copyable input
X
In[5]:=
Click for copyable input
X
Out[5]=

与可用数据比较计算结果.

In[6]:=
Click for copyable input
X
Out[6]=
