Mandelbrot Set Distances

Mandelbrot set distance function estimates the distance from the Mandelbrot set. It is one of the many functions relating to fractal functionality that is new in Mathematica 10.

show complete Wolfram Language inputhide input

In[1]:=

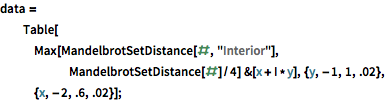

X data = Table[ Max[MandelbrotSetDistance[#, "Interior"], MandelbrotSetDistance[#]/4] &[x + I*y], {y, -1, 1, .02}, {x, -2, .6, .02}];

In[2]:=

X ListPlot3D[data, Boxed -> False, Axes -> False, Mesh -> None, ImageSize -> 450, BoundaryStyle -> None]

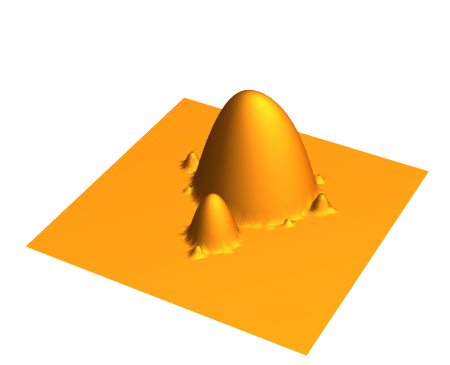

Out[2]=

show complete Wolfram Language inputhide input

In[3]:=

X data = Table[ MandelbrotSetDistance[x + I*y, "Interior", MaxIterations -> 100], {x, -2., 1., .031}, {y, -1.5, 1.5, .031}];

In[4]:=

X ListPlot3D[data, Mesh -> None, PlotRange -> Full, Boxed -> False, Axes -> False, ImageSize -> 450, BoundaryStyle -> None]

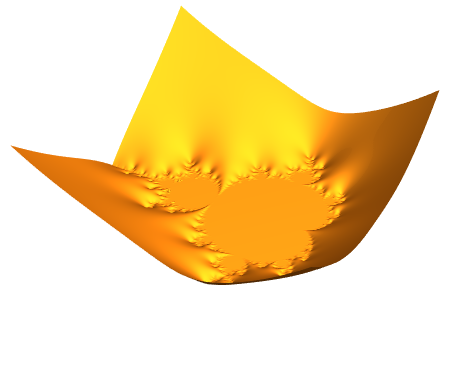

Out[4]=

show complete Wolfram Language inputhide input

In[5]:=

X data = Table[ MandelbrotSetDistance[x + I*y, MaxIterations -> 120], {y, -1.5, 1.5, .01}, {x, -2, 1, .01}];

In[6]:=

X ListPlot3D[data, Mesh -> None, Boxed -> False, Axes -> False, ImageSize -> 450, BoundaryStyle -> None]

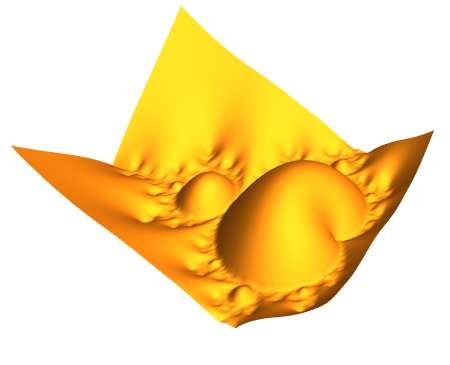

Out[6]=

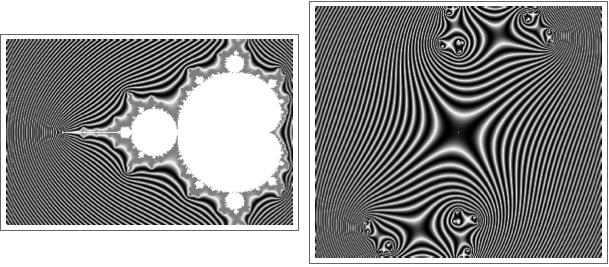

“Equipotential lines” for the fractals can be visualized using the new Böttcher functions.

In[7]:=

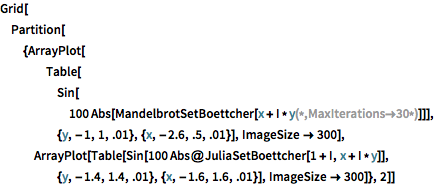

X Grid[Partition[{ArrayPlot[ Table[Sin[ 100 Abs[MandelbrotSetBoettcher[x + I*y(*, MaxIterations\[Rule]30*)]]], {y, -1, 1, .01}, {x, -2.6, .5, .01}], ImageSize -> 300], ArrayPlot[ Table[Sin[100 Abs@JuliaSetBoettcher[1 + I, x + I*y]], {y, -1.4, 1.4, .01}, {x, -1.6, 1.6, .01}], ImageSize -> 300]}, 2]]

Out[7]=
