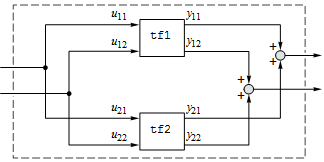

Connect Two Systems in Parallel
Obtain the equivalent input-output model by connecting two systems in parallel.
In[1]:=
X
tf1 = TransferFunctionModel[{{s/(s^2 + 5), (3 s)/(s + 2)}, {(s + 1)/( s + 2), 2/s}}, s]; tf2 = TransferFunctionModel[{{10/(s + 1), 0}, {0, 5/(s + 3)}}, s]; SystemsModelParallelConnect[tf1, tf2]
Out[1]=
