Simulate the Response of State-Space or Transfer-Function Models

In[1]:=

X tf[\[Omega]_, \[Zeta]_] := TransferFunctionModel[\[Omega]^2/(s^2 + 2 \[Zeta] \[Omega] s + \[Omega]^2), s]

In[2]:=

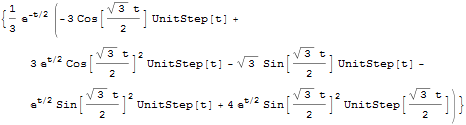

X OutputResponse[tf[1, 1/2], UnitStep[t], t]

Out[2]=

In[3]:=

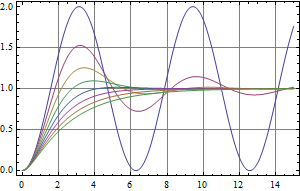

X Plot[Evaluate@ Table[Tooltip[ OutputResponse[tf[1, \[Xi]], UnitStep[t], t], \[Xi]], {\[Xi], Range[0, 1.4, 0.2]}], {t, 0, 15}, Frame -> True, PlotRange -> All, ImageSize -> 300, GridLines -> Automatic]

Out[3]=
