New in Wolfram Mathematica 7: Automated Charting Graphics ◄ previous | next ►
Combine Color Schemes and Charting Elements for Stronger Aesthetics
Combining color schemes and charting elements can get a more refined aesthetic.

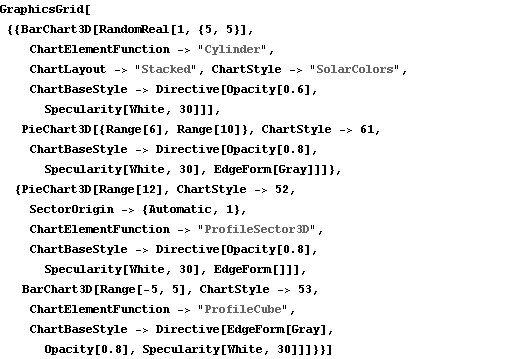

In[1]:=

Click for copyable input
GraphicsGrid[{{BarChart3D[RandomReal[1, {5, 5}],

    ChartElementFunction -> "Cylinder", ChartLayout -> "Stacked",

    ChartStyle -> "SolarColors",

    ChartBaseStyle ->

     Directive[Opacity[0.6], Specularity[White, 30]]],

   PieChart3D[{Range[6], Range[10]}, ChartStyle -> 61,

    ChartBaseStyle ->

     Directive[Opacity[0.8], Specularity[White, 30],

      EdgeForm[Gray]]]}, {PieChart3D[Range[12], ChartStyle -> 52,

    SectorOrigin -> {Automatic, 1},

    ChartElementFunction -> "ProfileSector3D",

    ChartBaseStyle ->

     Directive[Opacity[0.8], Specularity[White, 30], EdgeForm[]]],

   BarChart3D[Range[-5, 5], ChartStyle -> 53,

    ChartElementFunction -> "ProfileCube",

    ChartBaseStyle ->

     Directive[EdgeForm[Gray], Opacity[0.8],

      Specularity[White, 30]]]}}]

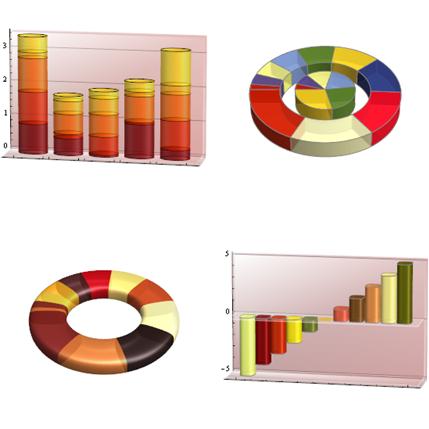

Out[1]=
