Compute a 2D Discrete-Time Fourier Transform
Compute a 2D discrete-time Fourier transform and visualize the spectra overlaying the phase color.
In[1]:=

Click for copyable input
F = FourierSequenceTransform[

  Sin[n 2 Pi/3] (1/2)^n Sin[m 2 Pi/5] (1/3)^m UnitStep[n, m], {n,

   m}, {\[Omega], \[Nu]}]
Out[1]=

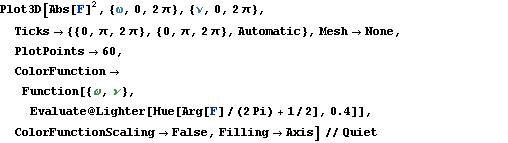

In[2]:=

Click for copyable input
Plot3D[Abs[F]^2, {\[Omega], 0, 2 \[Pi]}, {\[Nu], 0, 2 \[Pi]},

  Ticks -> {{0, \[Pi], 2 \[Pi]}, {0, \[Pi], 2 \[Pi]}, Automatic},

  Mesh -> None, PlotPoints -> 60,

  ColorFunction ->

   Function[{\[Omega], \[Nu]},

    Evaluate@Lighter[Hue[Arg[F]/(2 Pi) + 1/2], 0.4]],

  ColorFunctionScaling -> False, Filling -> Axis] // Quiet

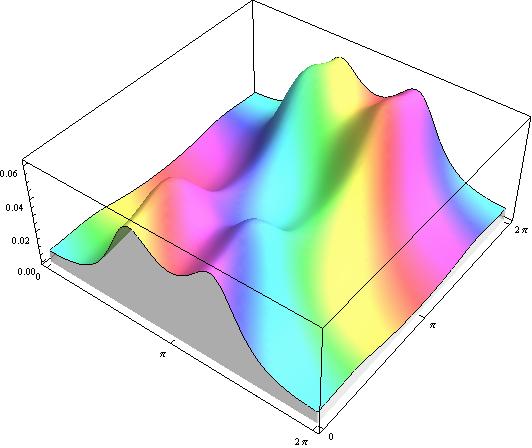

Out[2]=
