New in Wolfram Mathematica 7: Enhanced Fourier Analysis  previous | next
Compute Discrete-Time Fourier Transforms
Discrete-time Fourier transform gallery.
In[1]:=

Click for copyable input

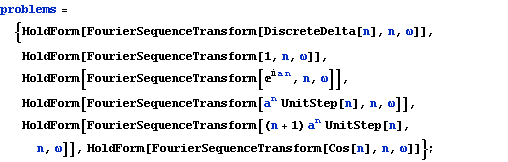

problems = {HoldForm[

    FourierSequenceTransform[DiscreteDelta[n], n, \[Omega]]],

   HoldForm[FourierSequenceTransform[1, n, \[Omega]]],

   HoldForm[FourierSequenceTransform[E^(I a n), n, \[Omega]]],

   HoldForm[FourierSequenceTransform[a^n UnitStep[n], n, \[Omega]]],

   HoldForm[

    FourierSequenceTransform[(n + 1) a^n UnitStep[n], n, \[Omega]]],

   HoldForm[FourierSequenceTransform[Cos[n], n, \[Omega]]]};
In[2]:=

Click for copyable input

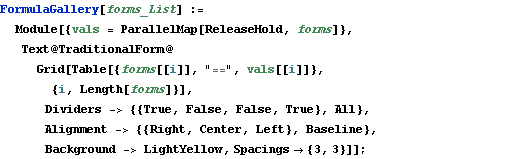

FormulaGallery[forms_List] :=

  Module[{vals = ParallelMap[ReleaseHold, forms]},

   Text@TraditionalForm@

     Grid[Table[{forms[[i]], "==", vals[[i]]}, {i, Length[forms]}],

      Dividers -> {{True, False, False, True}, All},

      Alignment -> {{Right, Center, Left}, Baseline},

      Background -> LightYellow, Spacings -> {3, 3}]];
In[3]:=

Click for copyable input
FormulaGallery[problems]

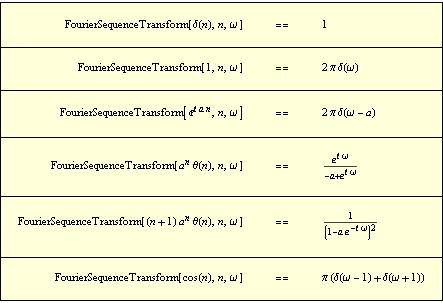

Out[3]=
