SystemModelerを使うと,運動学的挙動,動的挙動,熱挙動を伴うメカニズムや機械を含む動力学問題をモデル化し,シミュレーションを実行することができます.振動問題を調べ,解決します.

Human Interface Device (HID): Design a Joystick

Exploring alternative product designs through modeling and simulation can be faster and cheaper than experimenting on physical prototypes. This model compares three designs for a spring-based recentering mechanism for an analog joystick.

この例を実行するためには以下が必要です.

System ModelerとMathematicaの最新版

どちらかお選びください.

無料評価版を
取得する
ダウンロードを
続行する

Hierarchical Modeling

Build up complex models in layers with separately testable and reusable subcomponents.

Automatic 3D Animation

The model is built using components from the mechanical MultiBody library, so 3D visualization of simulation results is automatic.

Watch the Video

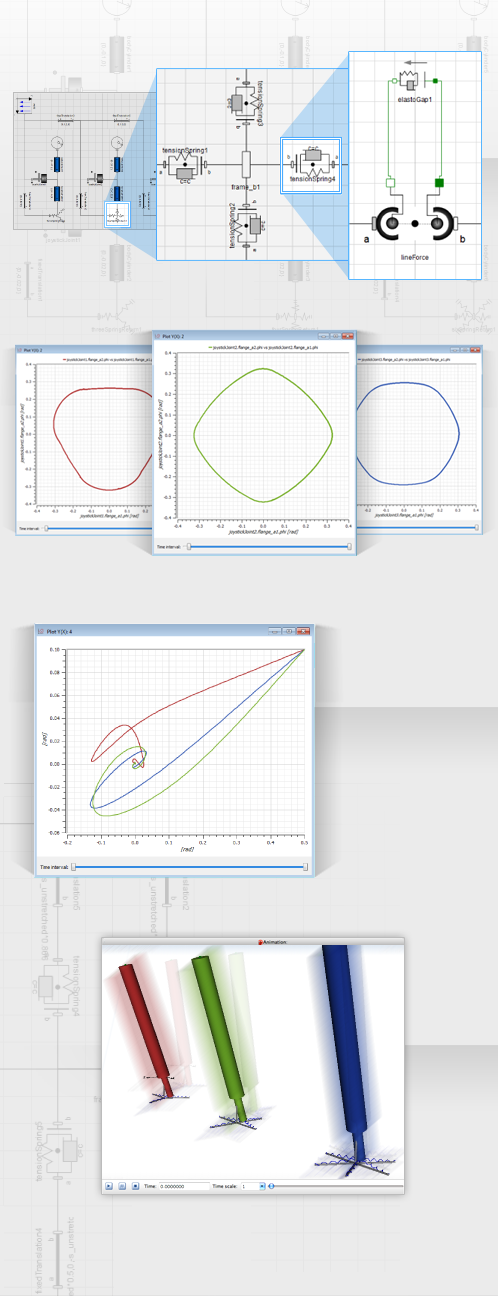

Compare joystick response when the user tries to trace out a circular path using a radial force of constant strength.
Return trajectory when the joystick recenters itself after being released by the user
Simultaneous simulation of three-, four-, and six-spring recentering mechanisms under the same test force

Numerical Experimentation

Compare the performance of different designs under test conditions.
