Acceleration, velocity, and position of the aircraft during launch
Aeroespacial y defensa
Modele y ponga a prueba sistemas complejos tales como vehículos aéreos no tripulados (UAV), robótica espacial y dinámica de aeronaves. System Modeler permite el diseño a nivel de sistema y de componentes, así como pruebas y verificación continuas.

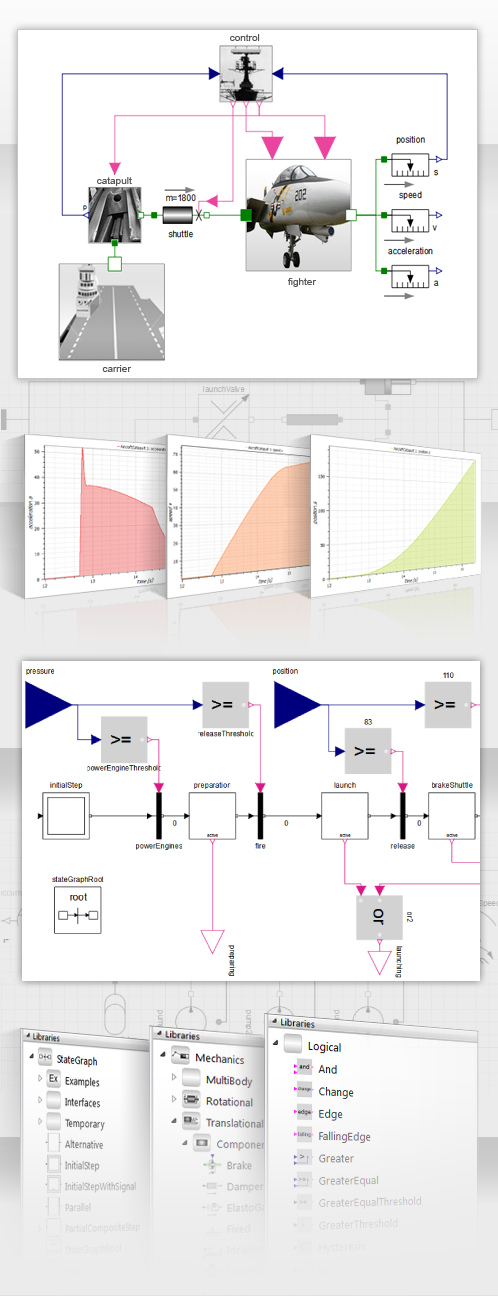

Aircraft Catapult: Model Launch Mechanism
An aircraft carrier has a hydraulic aircraft catapult to accelerate aircraft to a high speed in a short distance. The hydraulic catapult and mechanical components of the aircraft and carrier interact with logical control systems.
Model with Real-World Topology
Connections between model components, such as the carrier, catapult, and control logic, mirror the real-world interactions between the corresponding objects and subsystems.
Mechanics and Custom Components
Model the aircraft with the built-in mechanics library and custom-built components.
Logical and State Graph Libraries
Combine logical and state graph components to control the launch sequence of the catapult.
