Covariance Function for Processes

The CovarianceFunction at times s and t is given by Expectation[(x[s]-[s])(x[t]-[s]), x], where x[t] is the process state and [t] is the mean function.

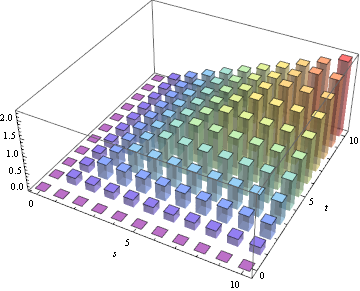

A discrete-time and discrete-state random process.

In[1]:=

X CovarianceFunction[BinomialProcess[1/3], s, t]

Out[1]=

In[2]:=

X CovarianceFunction[BinomialProcess[1/3], s, t]; DiscretePlot3D[%, {s, 0, 10}, {t, 0, 10}, ExtentSize -> 1/2, ColorFunction -> "Rainbow", ImageSize -> Medium, AxesLabel -> Automatic]

Out[2]=

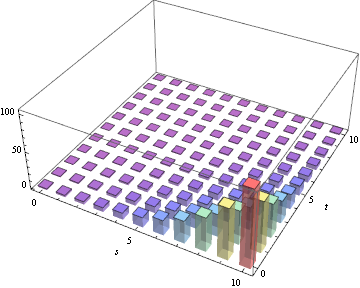

A discrete-time and continuous-state random process.

In[3]:=

X CovarianceFunction[ARProcess[{2/3}, 1], s, t]

Out[3]=

In[4]:=

X CovarianceFunction[ARProcess[{2/3}, 1], s, t]; DiscretePlot3D[%, {s, 0, 10}, {t, 0, 10}, ExtentSize -> 1/2, ColorFunction -> "Rainbow", ImageSize -> Medium, AxesLabel -> Automatic]

Out[4]=

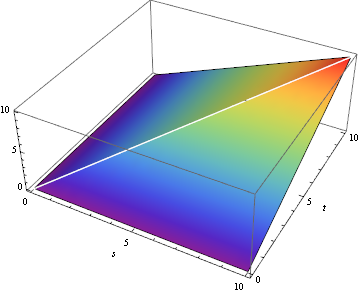

A continuous-time and discrete-state random process.

In[5]:=

X CovarianceFunction[PoissonProcess[1], s, t]

Out[5]=

In[6]:=

X CovarianceFunction[PoissonProcess[1], s, t]; Plot3D[%, {s, 0, 10}, {t, 0, 10}, Mesh -> None, ColorFunction -> "Rainbow", ImageSize -> Medium, AxesLabel -> Automatic]

Out[6]=

A continuous-time and continuous-state random process.

In[7]:=

X CovarianceFunction[OrnsteinUhlenbeckProcess[0, 1, 1/5], s, t]

Out[7]=

In[8]:=

X CovarianceFunction[OrnsteinUhlenbeckProcess[0, 1, 1/5], s, t]; Plot3D[%, {s, 0, 10}, {t, 0, 10}, Mesh -> None, ColorFunction -> "Rainbow", ImageSize -> Medium, AxesLabel -> Automatic]

Out[8]=
