Boost Converter
Para ejecutar este ejemplo necesitará
Las versiones más recientes de System Modeler y Mathematica.
Por favor haga una selección:
Obtener unaprueba gratuita Continuar
con la descarga
The Model

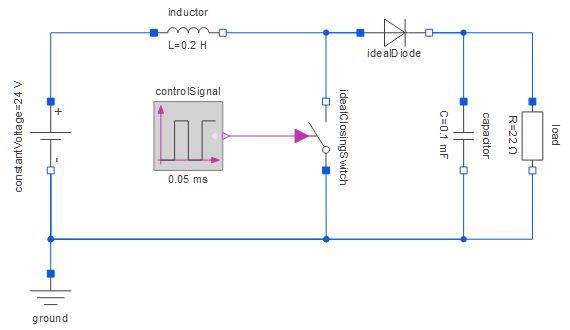

A boost converter is a switched-mode power supply that uses two switches (usually a diode and a transistor), an inductor, and a capacitor to convert direct current voltage from a lower to a higher level. When the switch is turned off, the inductor current goes through the diode, the load, and the capacitor. When the switch is turned on, the inductor current increases and doesn’t pass through the diode. A filter capacitor is added to smooth out the output voltage.
Show parameter values with units
Quickly check the values of your parameters, which are rendered using your chosen display unit.
Current Ripple Analysis
A boost converter has a pulsating current on the output. Output ripple is one of the main disadvantages of using a switched-mode power supply.
The output voltage is always higher than the input, and the output current is always lower than the input current.
Mix analytical and simulation analysis
The theoretical value for the ripple in the current,
, can be compared to the simulated values.

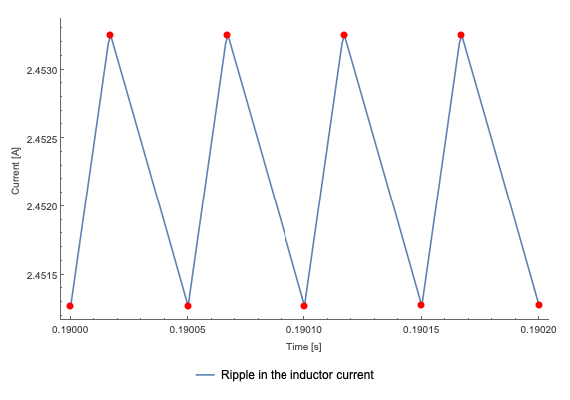

Using the Wolfram Language, the max and min can be retrieved from the simulation data, and the peak-to-peak current ripple can be calculated. In this case it is 0.0019. This value can be compared to the theoretical value of 0.002. The downloadable example contains this calculation.
