SystemModelerを使うと，運動学的挙動，動的挙動，熱挙動を伴うメカニズムや機械を含む動力学問題をモデル化し，シミュレーションを実行することができます．振動問題を調べ，解決します．
Reducing Turbine Vibrations
The Model

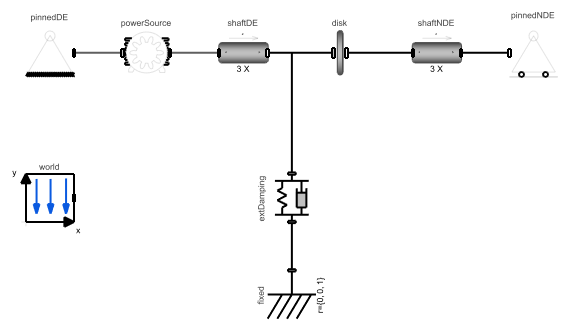

Flexible components from the Rotating Machinery library are used. The motor applies a rotational speed that exceeds the critical speed of the turbine.
The external damping is truncated and applied as a spring-damper support.
Simulation Results
The response of the system in the time domain.

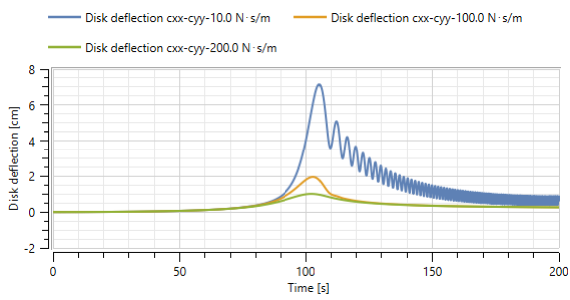

The figure shows disc deflections for different external damping levels.

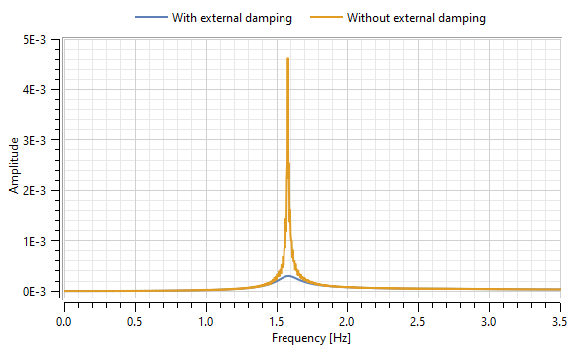

The response of the system in the frequency domain.
The system without external damping starts to heavily vibrate at the critical speed. Adding external damping ensures that the system operates with reduced vibrations at greater than critical speed.
