消費者製品

System Modelerで家電やその他の電子システムを設計し，機械部品や温度調整等の非電子的要素を組み込んで完全な設計にすることができます．

すべて航空宇宙と防衛自動車と輸送重機製造消費者製品エネルギー生命科学ビジネスその他

Simulation of Changing Refrigerator Temperatures

Real-world systems often exhibit rapid changes or discontinuities that must be resolved accurately during numerical simulation. This example simulates a household refrigerator freezer in several scenarios, correctly handling events such as the sudden triggering of a thermostat or the opening of a compartment door.

この例を実行するためには以下が必要です．

System ModelerとMathematicaの最新版

どちらかお選びください．

無料評価版を
取得する ダウンロードを
続行する

Hybrid Discrete-Continuous Simulation

Correctly handle discontinuities associated with opening and closing compartment doors and with thermostats triggered by changing temperatures.

Multi-Domain Modeling

Combine different physical domains, including fluid heat flow (air circulation), thermal (food and insulation), and signal processing (thermostat).

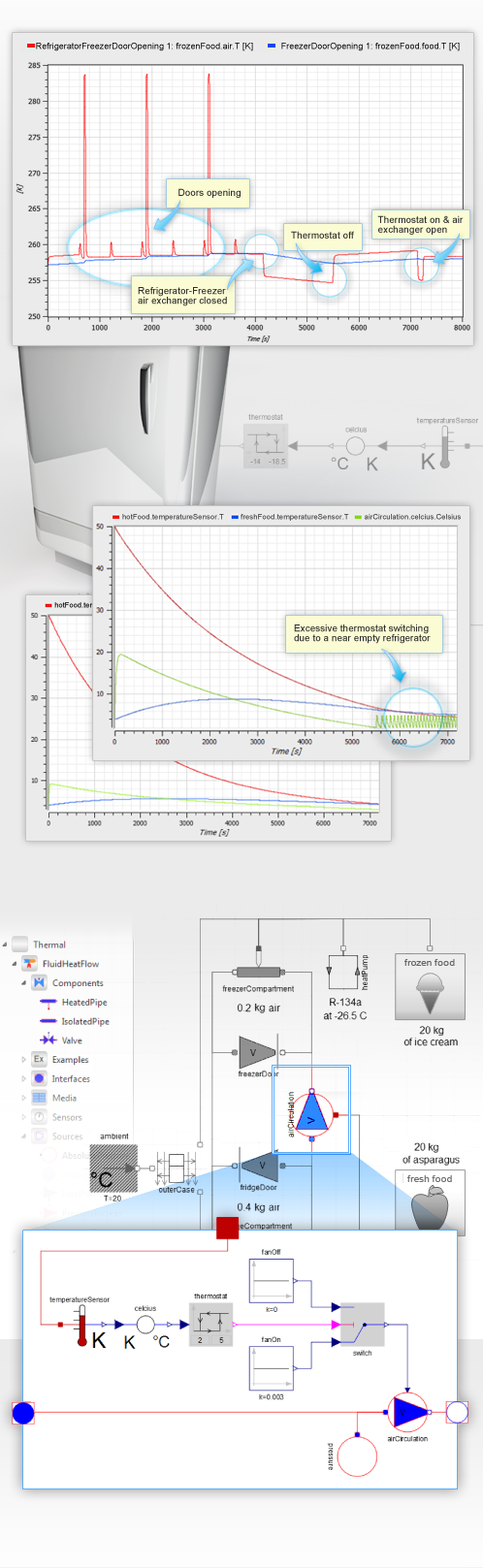

Air temperature and frozen food temperature
in the main freezer compartment
Temperature of air (green) and fresh food (blue) after adding hot food (red) to a
normally loaded and near-empty refrigerator
Thermostat-controlled air exchanger between
refrigerator and freezer compartments

Simulate Different Scenarios

Compare performance under different conditions, such as the addition of hot food to a normally loaded versus a near-empty refrigerator compartment.
