Create a Mesh Region from Image Data
Using an image as input, create a mosaic or "stained glass" representation by repeated use of VoronoiMesh.
| In[1]:= |  X |
Find the edges of the image.
| In[2]:= |  X |
| Out[2]= |  |
Create a Voronoi mesh from the edge positions.
| In[3]:= |  X |
| In[4]:= |  X |
| Out[4]= |  |

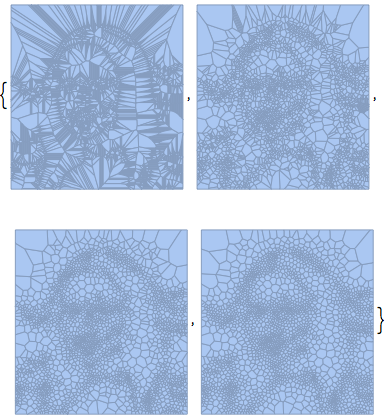

Recursively apply VoronoiMesh to the mean vertex positions of the precursive Voronoi cells to create a more uniform mesh.
| In[5]:= |  X |
| Out[5]= |  |

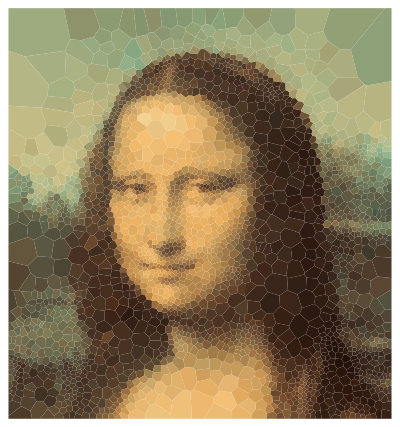

Color each polygon with the image color coinciding with its mean vertex positions.
| In[6]:= |  X |
| Out[6]= |  |
