Apply a Box–Cox Transformation to a Time Series

TimeSeriesMap can be used to transform values of time series.

The data contains the civilian unemployment rate in the United States from 1948 through 1993.

show complete Wolfram Language inputhide input

In[1]:=

X timeFrame = Interval[{DateObject[{1948, 1, 1}], DateObject[{1993, 12, 1}]}];

In[2]:=

X data = EntityValue[Entity["Country", "UnitedStates"], EntityProperty["Country", "CivilianUnemploymentRate", {"Date" -> timeFrame, "Frequency" -> "Monthly"}]]

Out[2]=

In[3]:=

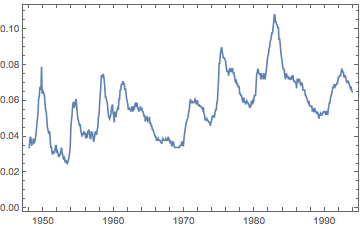

X DateListPlot[data, ImageSize -> Medium]

Out[3]=

Define a Box–Cox transformation.

In[4]:=

X BoxCox[x_, \[Lambda]_, \[Alpha]_, \[Sigma]_] := With[{y = QuantityMagnitude[x]}, Piecewise[{{(((y - \[Alpha])/\[Sigma])^\[Lambda] - 1)/\[Lambda], \[Lambda] > 0 || \[Lambda] < 0}}, Log[(y - \[Alpha])/\[Sigma]]]]

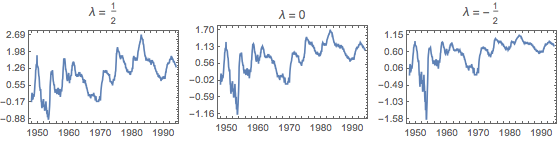

Use TimeSeriesMap to apply a Box–Cox transformation to the data with few choices of λ.

In[5]:=

X lambdas = {1/2, 0, -1/2}; newdata = Table[TimeSeriesMap[BoxCox[#, \[Lambda], .02, .016] &, data], {\[Lambda], lambdas}];

show complete Wolfram Language inputhide input

In[6]:=

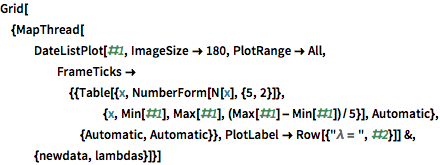

X Grid[{MapThread[ DateListPlot[#1, ImageSize -> 180, PlotRange -> All, FrameTicks -> {{Table[{x, NumberForm[N[x], {5, 2}]}, {x, Min[#1], Max[#1], (Max[#1] - Min[#1])/5}], Automatic}, {Automatic, Automatic}}, PlotLabel -> Row[{"\[Lambda] = ", #2}]] &, {newdata, lambdas}]}]

Out[6]=
