Blinking LED: Digital Circuits Lab
Digital circuits are everywhere, from personal computers to smart TVs. In this lab, you will learn how digital circuits work and create some basic circuits. Finally, you will test your digital circuits by connecting to hardware using Arduinos.
Create Your Model

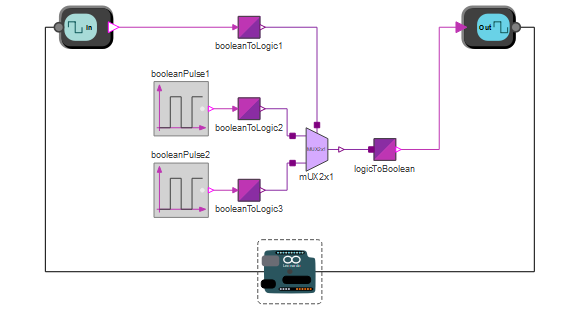

The model consists of a digital input and a digital output connected to an Arduino. The digital input signal is used to set the state of the multiplexer. Based on the state of the multiplexer, a Boolean pulse with a predefined frequency is selected.
A 2×1 multiplexer is used to switch between two different frequencies.
Test Your Model
The pushbutton is used to change the frequency of the blinking LED.
The pushbutton is connected to pin 9 and the LED is connected to pin 6 of the Arduino.
