8Basic Graphics Objects
In the Wolfram Language, Circle[] represents a circle. To display the circle as graphics, use the function Graphics. Later, well see how to specify the position and size of a circle. But for now, were just going to deal with a basic circle, which doesnt need any additional input.
Make graphics of a circle:
In[1]:=
Click for copyable input
Out[1]=
Disk represents a filled-in disk:
In[2]:=
Click for copyable input
Out[2]=
RegularPolygon gives a regular polygon with however many sides you specify.
Heres a pentagon (5-sided regular polygon):
In[3]:=
Click for copyable input
Out[3]=
In[4]:=
Click for copyable input
Out[4]=
Style works inside Graphics, so you can use it to give colors.
Heres an orange pentagon:
In[5]:=
Click for copyable input
Out[5]=
The Wolfram Language works in 3D as well as 2D, with constructs such as Sphere, Cylinder and Cone. When you have 3D graphics, you can rotate them around interactively to see different angles.
Display a sphere in 3D:
In[6]:=
Click for copyable input
Out[6]=

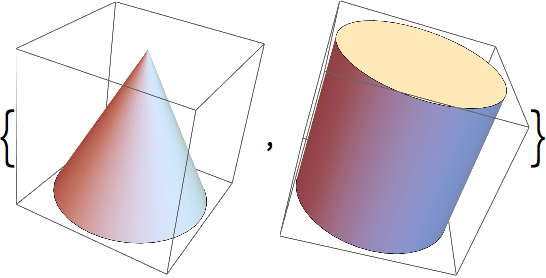

A list of a cone and a cylinder:
In[7]:=
Click for copyable input
Out[7]=

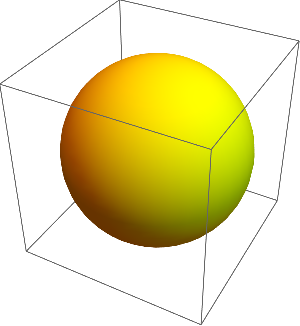

A yellow sphere:
In[8]:=
Click for copyable input
Out[8]=
Circle[ ] specify a circle
Disk[ ] specify a filledin disk
RegularPolygon[n] specify a regular polygon with n sides
Graphics[object] display an object as graphics
Sphere[ ], Cylinder[ ], Cone[ ], ... specify 3D geometric shapes
Graphics3D[object] display an object as 3D graphics
8.1Use RegularPolygon to draw a triangle. »
Expected output:
Out[]=
8.2Make graphics of a red circle. »
Expected output:
Out[]=
8.3Make a red octagon. »
Expected output:
Out[]=

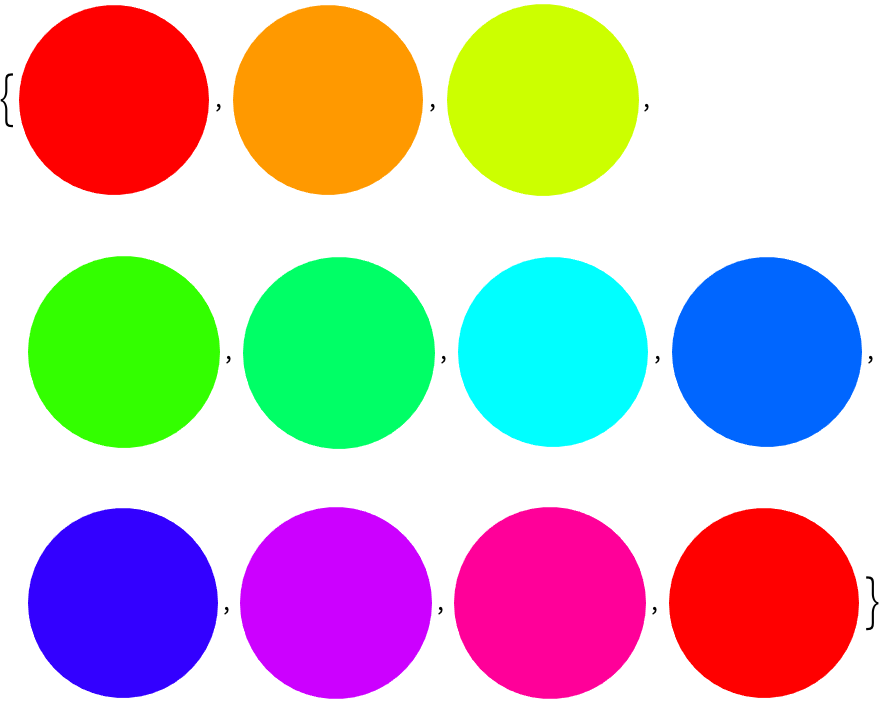

8.4Make a list whose elements are disks with hues varying from 0 to 1 in steps of 0.1. »
Expected output:
Out[]=

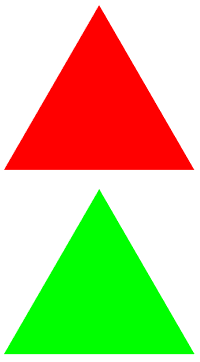

8.5Make a column of a red and a green triangle. »
Expected output:
Out[]=

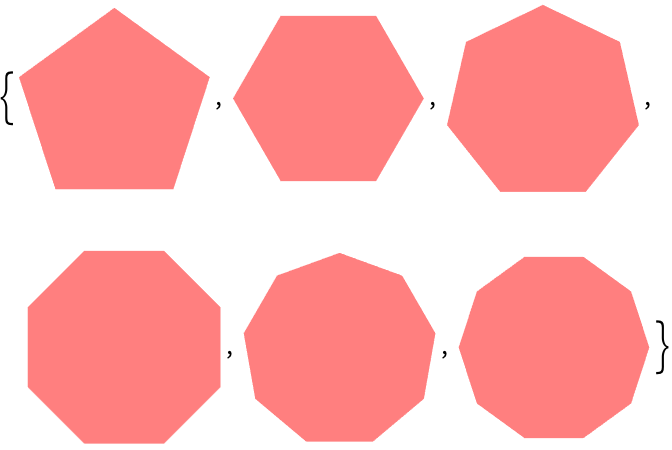

8.6Make a list giving the regular polygons with 5 through 10 sides, with each polygon being colored pink. »
Expected output:
Out[]=
8.7Make a graphic of a purple cylinder. »
Expected output:
Out[]=

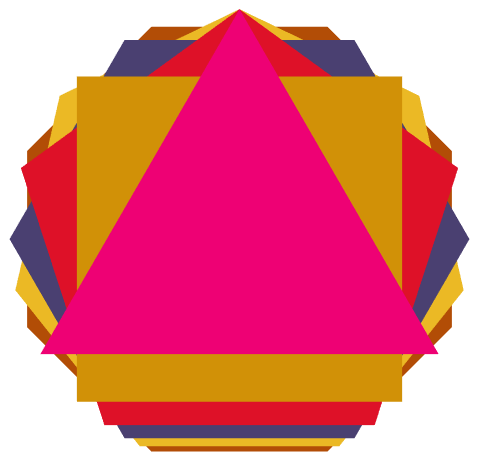

8.8Make a list of polygons with 8, 7, 6, ... , 3 sides, and colored with RandomColor, then show them all overlaid with the triangle on top (hint: apply Graphics to the list). »
Sample expected output:
Out[]=

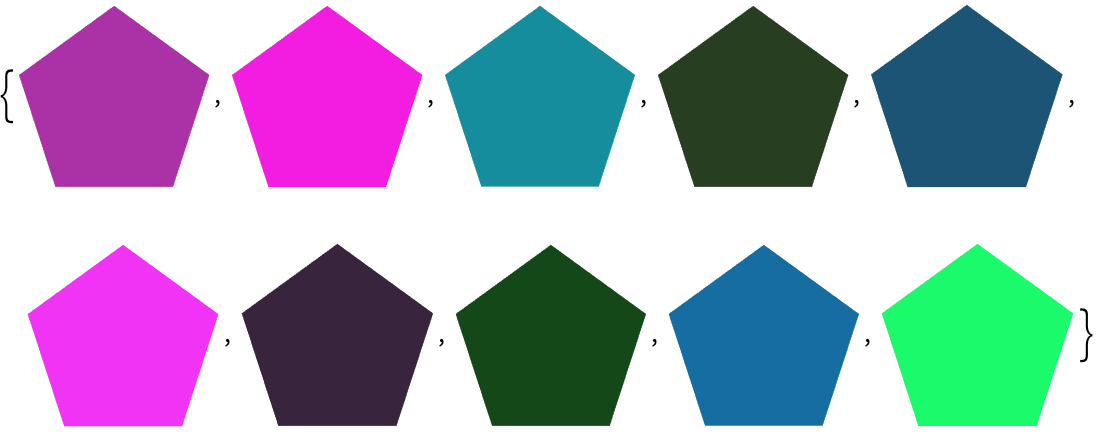

+8.1Make a list of 10 regular pentagons with random colors.  »
Sample expected output:
Out[]=
+8.2Make a list of a 20-sided regular polygon and a disk. »
Expected output:
Out[]=
+8.3Make a list of polygons with 10, 9, ... , 3 sides. »
Expected output:
Out[]=
How can I make graphics with several objects?
Section 14 will explain. To do so requires understanding coordinates.
Why use Circle[ ], not just Circle?
For consistency. As well see in Section 14, Circle[ ] is actually short for Circle[{0, 0}, 1], which means a circle of radius 1 and center coordinates {0, 0}.
Why isnt the yellow sphere pure yellow?
