Higher-Fidelity Drawing

Higher-fidelity drawing for graphs and networks.

In[1]:=

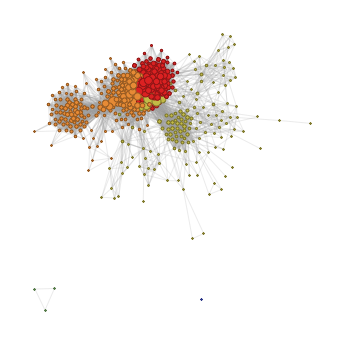

SocialMediaData["Facebook", "FriendNetwork"]

Out[1]=

In[2]:=

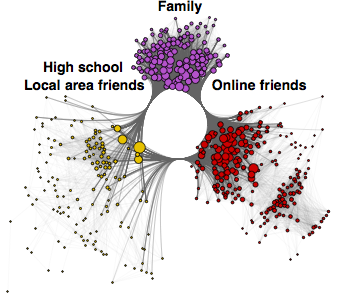

CommunityGraphPlot[SocialMediaData["Facebook", "FriendNetwork"], CommunityLabels -> {"Online friends", "High school\n Local area friends", "Family"}]

Out[2]=

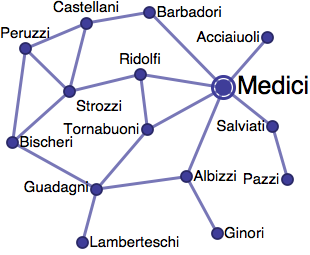

Prestige of Florentine families.

In[3]:=

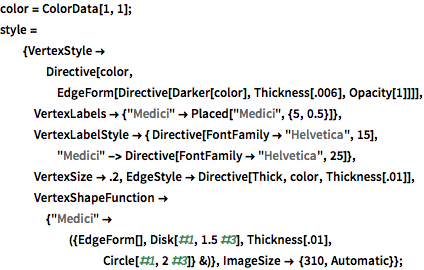

color = ColorData[1, 1]; style = {VertexStyle -> Directive[color, EdgeForm[Directive[Darker[color], Thickness[.006], Opacity[1]]]], VertexLabels -> {"Medici" -> Placed["Medici", {5, 0.5}]}, VertexLabelStyle -> { Directive[FontFamily -> "Helvetica", 15], "Medici" -> Directive[FontFamily -> "Helvetica", 25]}, VertexSize -> .2, EdgeStyle -> Directive[Thick, color, Thickness[.01]], VertexShapeFunction -> {"Medici" -> ({EdgeForm[], Disk[#1, 1.5 #3], Thickness[.01], Circle[#1, 2 #3]} &)}, ImageSize -> {310, Automatic}};

In[4]:=

Graph[ExampleData[{"NetworkGraph", "FlorentineFamilies"}], style]

Out[4]=
