Enhance Curated Datasets with Built-In Data

The extensive collection of built-in socioeconomic data in the Wolfram Knowledgebase can be used to enhance external data sources.

Start with a dataset of Head Start locations, imported from the US Department of Housing and Urban Development.

In[1]:=

hs = ResourceData["Head Start Locations"][ All, {"CenterName", "CenterAddress", "CenterStateEntity", "CenterCityEntity", "CenterZipCodeEntity", "Coordinates"}];

In[2]:=

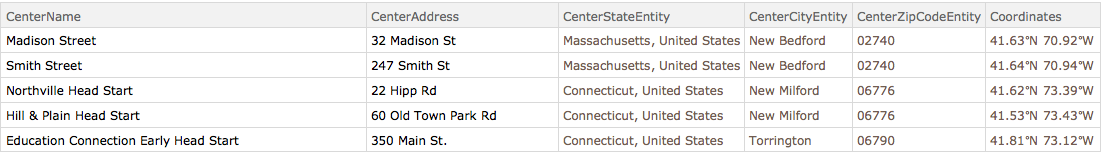

Take[hs, 5]

Out[2]=

Use a selection operator to extract a subset of locations.

In[3]:=

hsChicago = hs[Select[#CenterCityEntity === Entity["City", {"Chicago", "Illinois", "UnitedStates"}] &]];

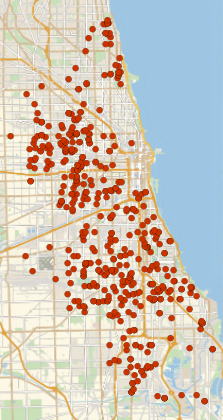

Represent them on a map of Chicago.

In[4]:=

GeoListPlot[hsChicago[All, #Coordinates &]]

Out[4]=

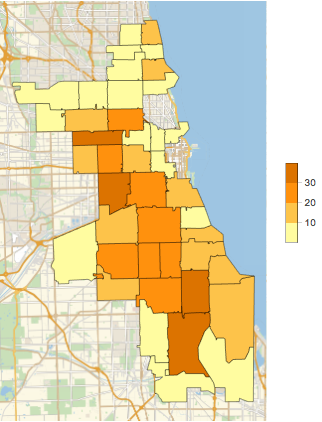

Group Head Start locations and plot their distribution by ZIP code.

In[5]:=

chicagoCounts = Length /@ GroupBy[hsChicago, #CenterZipCodeEntity &];

In[6]:=

GeoRegionValuePlot[chicagoCounts]

Out[6]=

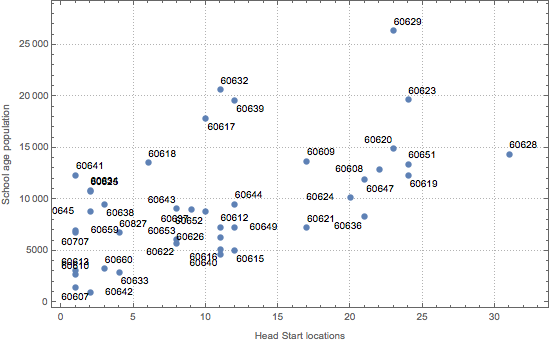

Retrieve built-in data about the school-age population in Chicago ZIP codes and plot those values against counts of Head Start locations derived from the external HUD data.

In[7]:=

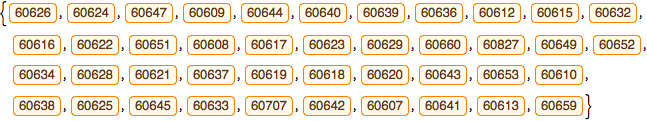

zipcodes = Normal@Keys[chicagoCounts]

Out[7]=

In[8]:=

chicagoMedian = EntityValue[zipcodes, EntityProperty["ZIPCode", "Population", {"Age" -> "SchoolAge"}], "EntityAssociation"];

In[9]:=

locsVSkids = Merge[{Normal@chicagoCounts, chicagoMedian}, Identity]; ListPlot[locsVSkids, FrameLabel -> {"Head Start locations", "School age population"}, ImageSize -> 550, PlotTheme -> "Detailed"]

Out[9]=
