Color Blend in Different Color Spaces

The relationship between two colors is deeply influenced by the color model that is used to describe them. The function Blend performs a color mixing in the color's native space, thus preserving its natural metric and its characteristics.

Blend offers unique results depending on the color model.

In[1]:=

X Blend@ColorConvert[{RGBColor[0, 0, 1], RGBColor[1, 1, 0]}, "RGB"]

Out[1]=

In[2]:=

X Blend@ColorConvert[{RGBColor[0, 0, 1], RGBColor[1, 1, 0]}, "HSB"]

Out[2]=

Compare blue-to-red blend in RGB and HSB spaces.

In[3]:=

X ArrayPlot[{Table[ Blend[ColorConvert[{Blue, Red}, "RGB"], n], {n, 0, 1, .01}]}, AspectRatio -> .25]

Out[3]=

In[4]:=

X ArrayPlot[{Table[ Blend[ColorConvert[{Blue, Red}, "HSB"], n], {n, 0, 1, .01}]}, AspectRatio -> .25]

Out[4]=

A 3D representation of an RGB blend is a straight line in RGB itself but a curve in a perceptually accurate space like CIE .

show complete Wolfram Language inputhide input

In[5]:=

X data = Table[ Blend[ColorConvert[{Blue, Red}, "RGB"], n], {n, 0, 1, .01}]; Labeled[ ChromaticityPlot3D[data, #, Ticks -> None, ViewPoint -> {1, -2, -1}], #] & /@ {"RGB", "LAB"}

Out[5]=

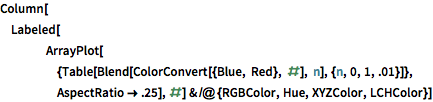

Blue-to-red blend in four different color spaces.

In[6]:=

X Column[Labeled[ ArrayPlot[{Table[ Blend[ColorConvert[{Blue, Red}, #], n], {n, 0, 1, .01}]}, AspectRatio -> .25], #] & /@ {RGBColor, Hue, XYZColor, LCHColor}]

Out[6]=

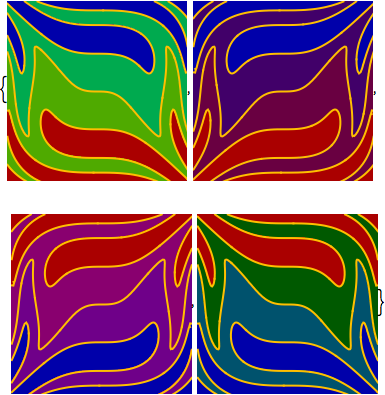

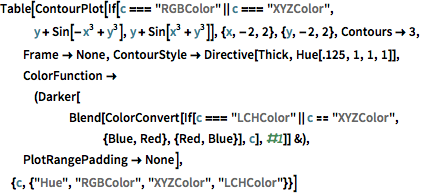

Use red-to-blue (center to corner) blend in different spaces for coloring plots.

show complete Wolfram Language inputhide input

In[7]:=

X Table[ContourPlot[ If[c === "RGBColor" || c === "XYZColor", y + Sin[-x^3 + y^3], y + Sin[x^3 + y^3]], {x, -2, 2}, {y, -2, 2}, Contours -> 3, Frame -> None, ContourStyle -> Directive[Thick, Hue[.125, 1, 1, 1]], ColorFunction -> (Darker[ Blend[ColorConvert[ If[c === "LCHColor" || c == "XYZColor", {Blue, Red}, {Red, Blue}], c], #1]] &), PlotRangePadding -> None], {c, {"Hue", "RGBColor", "XYZColor", "LCHColor"}}]

Out[7]=
