Digit Classification

Use the MNIST database of handwritten digits to train a convolutional network to predict the digit given an image.

First obtain the training and validation data.

In[1]:=

resource = ResourceObject["MNIST"]; trainingData = ResourceData[resource, "TrainingData"]; testData = ResourceData[resource, "TestData"];

In[2]:=

RandomSample[trainingData, 5]

Out[2]=

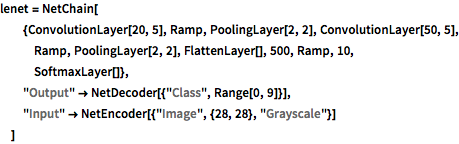

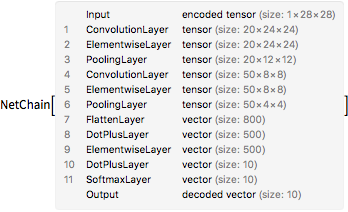

Define a convolutional neural network that takes in 28×28 grayscale images as input.

In[3]:=

lenet = NetChain[ {ConvolutionLayer[20, 5], Ramp, PoolingLayer[2, 2], ConvolutionLayer[50, 5], Ramp, PoolingLayer[2, 2], FlattenLayer[], 500, Ramp, 10, SoftmaxLayer[]}, "Output" -> NetDecoder[{"Class", Range[0, 9]}], "Input" -> NetEncoder[{"Image", {28, 28}, "Grayscale"}] ]

Out[3]=

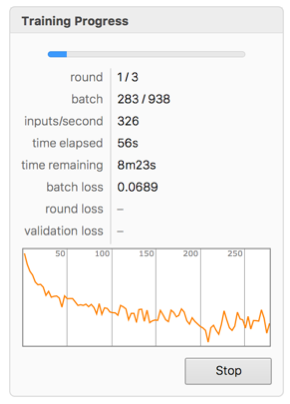

Train the network for four training rounds.

In[4]:=

lenet = NetTrain[lenet, trainingData, ValidationSet -> testData, MaxTrainingRounds -> 3];

Out[5]=

Evaluate the trained network directly on images randomly sampled from the validation set.

In[6]:=

imgs = Keys @ RandomSample[testData, 5]; Thread[imgs -> lenet[imgs]]

Out[6]=
