New Tiles for Mars and Pluto
Version 11 adds an improved set of tiles for Mars and Pluto. This example demonstrates the new set of tiles for Mars.
Take one of the probes that have landed on Mars.
In[1]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_5.png)
probe = Entity["DeepSpaceProbe", "MarsScienceLaboratory"];
In[2]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_6.png)
{probe["LaunchSite"], probe["LaunchDate"], probe["ArrivalDate"]}
Out[2]=
![](assets.en/new-tiles-for-mars-and-pluto/O_5.png)
In[3]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_7.png)
probe["Image"]
Out[3]=
![](assets.en/new-tiles-for-mars-and-pluto/O_6.png)

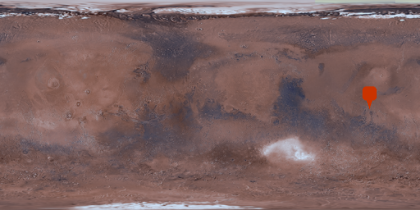

This is the location of the landing site in an equirectangular map of Mars of zoom level 1.
In[4]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_8.png)
GeoGraphics[GeoMarker[probe], GeoRange -> All]
Out[4]=
![](assets.en/new-tiles-for-mars-and-pluto/O_7.png)

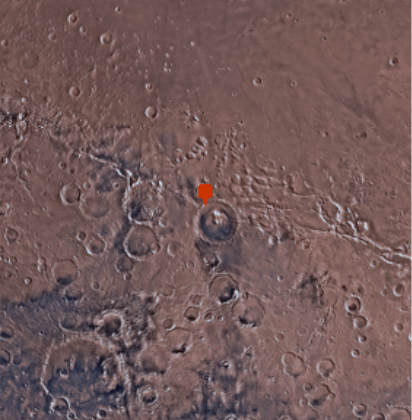

Increase the zoom level manually to 4.
In[5]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_9.png)
GeoGraphics[GeoMarker[probe], GeoZoomLevel -> 4]
Out[5]=
![](assets.en/new-tiles-for-mars-and-pluto/O_8.png)

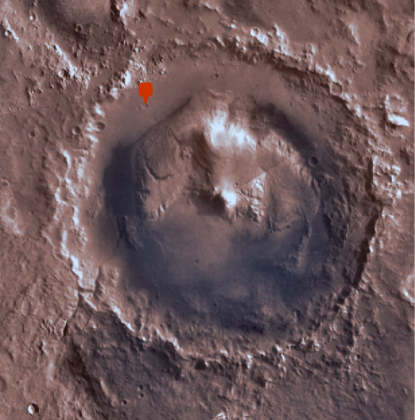

Increase even further, now centering the image at the Gale Crater.
In[6]:=
![Click for copyable input](assets.en/new-tiles-for-mars-and-pluto/In_10.png)
GeoGraphics[GeoMarker[probe], GeoZoomLevel -> 4];
Show[%, GeoCenter -> Entity["SolarSystemFeature", "GaleMars"],
GeoRange -> Quantity[100, "Kilometers"]]
Out[6]=
![](assets.en/new-tiles-for-mars-and-pluto/O_9.png)
