13Arrays, or Lists of Lists
We’ve seen how Table can be used to make lists. Now let’s see how Table can be used to create higher-dimensional arrays of values.
Make a list of 4 copies of x:
In[1]:=
Click for copyable input
Out[1]=
Make a list of 4 copies of a list that contains 5 copies of x:
In[2]:=
Click for copyable input
Out[2]=
Use Grid to display the result in a grid:
In[3]:=
Click for copyable input
Out[3]=
You can use Table with two variables to make a 2D array. The first variable corresponds to the row; the second to the column.
Make an array of colors: red going down, blue going across:
In[4]:=
Click for copyable input
Out[4]=
Show every array element as its row number:
In[5]:=
Click for copyable input
Out[5]=
Show every array element as its column number:
In[6]:=
Click for copyable input
Out[6]=
Generate an array in which each element is the sum of its row and column number:
In[7]:=
Click for copyable input
Out[7]=
Generate a multiplication table:
In[8]:=
Click for copyable input
Out[8]=
ArrayPlot lets you visualize values in an array. Larger values are shown darker.
Visualize a multiplication table:
In[9]:=
Click for copyable input
Out[9]=
Generate and plot an array of random values:
In[10]:=
Click for copyable input
Out[10]=
ArrayPlot also lets you put colors as values:
In[11]:=
Click for copyable input
Out[11]=
Images are ultimately arrays of pixels. Color images make each pixel have red, green and blue values. Black-and-white images have pixels with values 0 (black) or 1 (white). You can get the actual pixel values using ImageData.

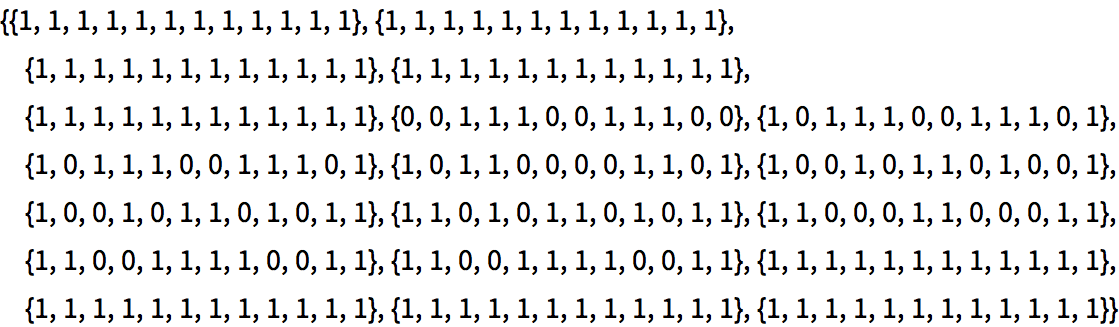

Find the value of pixels in an image of a “W”:
In[12]:=
Click for copyable input
Out[12]=
Use ArrayPlot to visualize the array of values:
In[13]:=
Click for copyable input
Out[13]=
The image is of very low resolution, because that’s how Rasterize made it in this case. It’s also white-on-black instead of black-on-white. That’s because in an image 0 is black and 1 is white (like in RGBColor), while ArrayPlot’s default is to make larger values darker.
You can do arithmetic with arrays, just like lists. That means it’s easy to swap 0 and 1 in this array: Just subtract everything from 1, so every 0 becomes 1−0=1, and every 1 becomes 1−1=0.

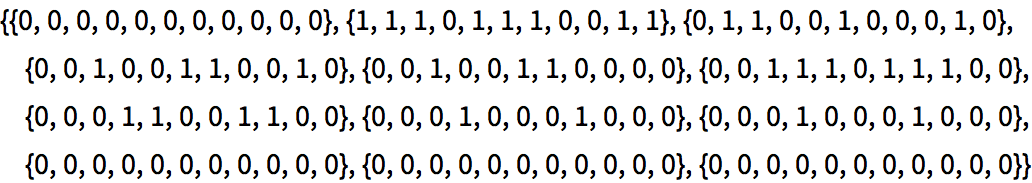

Find pixel values, then do arithmetic to swap 0 and 1 in the array:
In[14]:=
Click for copyable input
Out[14]=
The result is black-on-white:
In[15]:=
Click for copyable input
Out[15]=
Vocabulary
Table[x,4,5] make a 2D array of values
Grid[array] lay out values from an array in a grid
ArrayPlot[array] visualize the values in an array
ImageData[image] get the array of pixel values from an image
13.1Make a 12×12 multiplication table. »
Expected output:
Out[]=
13.2Make a 5×5 multiplication table for Roman numerals. »
Expected output:
Out[]=

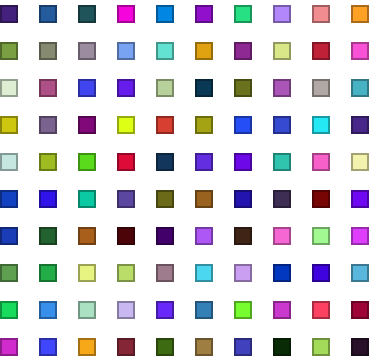

13.3Make a 10×10 grid of random colors. »
Sample expected output:
Out[]=

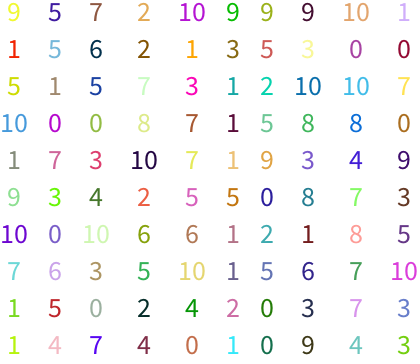

13.4Make a 10×10 grid of randomly colored random integers between 0 and 10. »
Sample expected output:
Out[]=
13.5Make a grid of all possible strings consisting of pairs of letters of the alphabet (“aa”, “ab”, etc.). »
Expected output:
Out[]=

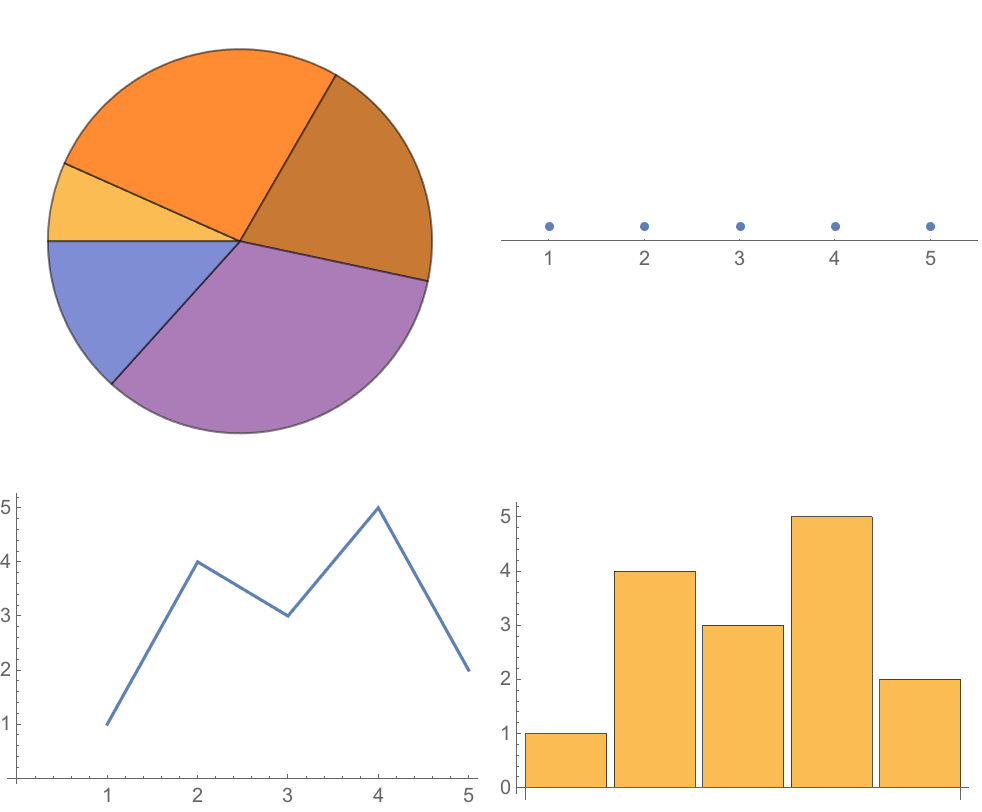

13.6Visualize {1, 4, 3, 5, 2} with a pie chart, number line, line plot and bar chart. Place these in a 2×2 grid. »
Expected output:
Out[]=

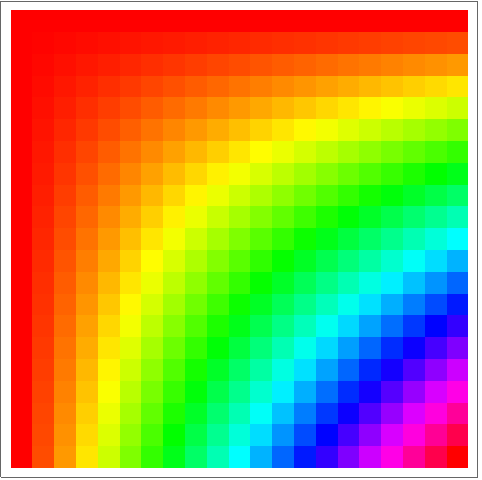

13.7Make an array plot of hue values x*y, where x and y each run from 0 to 1 in steps of 0.05. »
Expected output:
Out[]=

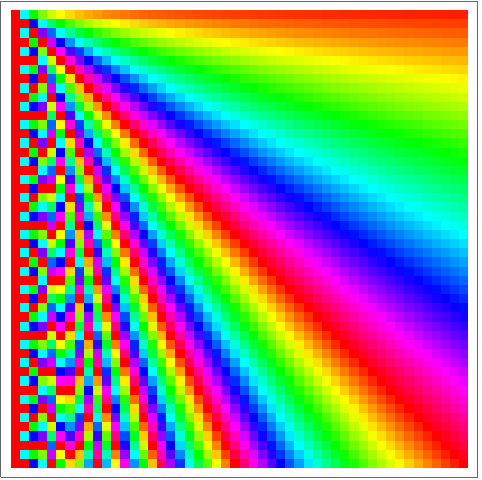

13.8Make an array plot of hue values x/y, where x and y each run from 1 to 50 in steps of 1. »
Expected output:
Out[]=
Expected output:
Out[]=
+13.1Make a 20×20 addition table. »
Expected output:
Out[]=

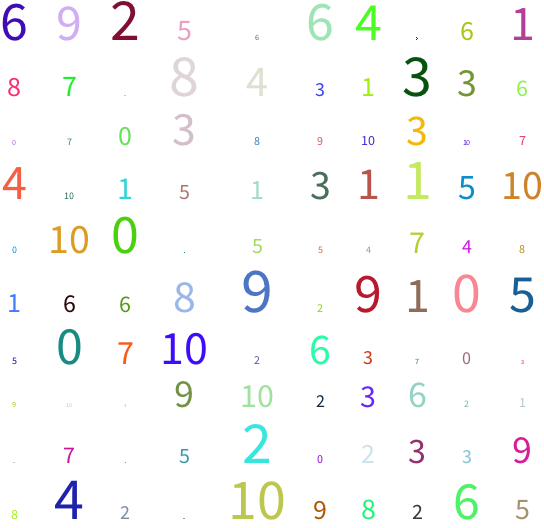

+13.2Make a 10×10 grid of randomly colored random integers between 0 and 10 that have random size up to 32. »
Sample expected output:
Out[]=
Q&A
Can the limits of one variable in a table depend on another?
Yes, later ones can depend on earlier ones. Table[x, {i, 4}, {j, i}] makes a “ragged” triangular array.
Can I make tables that are lists of lists of lists?
Yes, you can make tables of any dimension. Image3D gives a way to visualize 3D arrays.
Why does 0 correspond to black, and 1 to white, in images?
0 means zero intensity of light, i.e. black. 1 means maximum intensity, i.e. white.
How do I get the original image back from the output of ImageData?
Just apply the function Image to it.
