特異点の検出と除去

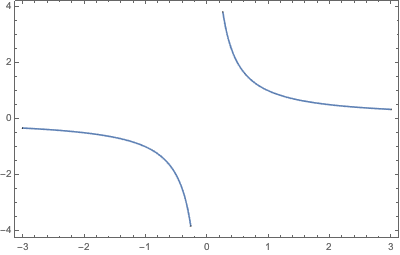

における
の極は自動的に特定され,プロットの際に削除される.
In[1]:=
![Click for copyable input](assets.ja/detect-and-remove-singular-points/In_57.png)
Plot[1/x, {x, -3, 3}, ImageSize -> 400, PlotTheme -> "Frame"]
Out[1]=
![](assets.ja/detect-and-remove-singular-points/O_43.png)

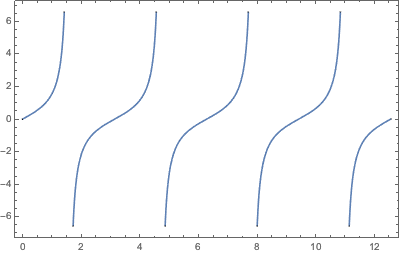

Tan[x]の極も同様である.
In[2]:=
![Click for copyable input](assets.ja/detect-and-remove-singular-points/In_58.png)
Plot[Tan[x], {x, 0, 4 Pi}, ImageSize -> 400, PlotTheme -> "Frame"]
Out[2]=
![](assets.ja/detect-and-remove-singular-points/O_44.png)

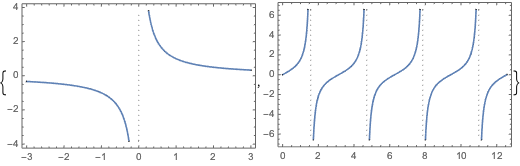

極に対応する漸近線を表示する.
In[3]:=
![Click for copyable input](assets.ja/detect-and-remove-singular-points/In_59.png)
{Plot[1/x, {x, -3, 3}, PlotTheme -> "Frame", ImageSize -> 250,
ExclusionsStyle -> Directive[Gray, Dotted]],
Plot[Tan[x], {x, 0, 4 Pi}, PlotTheme -> "Frame", ImageSize -> 250,
ExclusionsStyle -> Directive[Gray, Dotted]]}
Out[3]=
![](assets.ja/detect-and-remove-singular-points/O_45.png)
