Place Labels Relative to Data

Callout and Labeled can be placed at named locations relative to the data.

show complete Wolfram Language input

In[1]:=

options = Sequence @@ {Filling -> Axis, ImageSize -> 400};
data1 = Table[{k, PDF[BinomialDistribution[50, 0.2], k]}, {k, 0,
    50}];
data2 = Table[{k, PDF[BinomialDistribution[50, 0.5], k]}, {k, 0,
    50}];
data3 = Table[{k, PDF[BinomialDistribution[50, 0.7], k]}, {k, 0, 50}];

In[2]:=

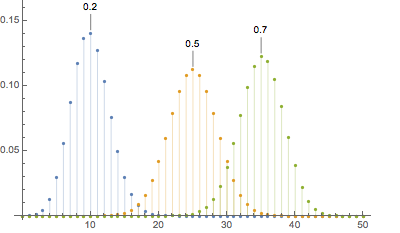

ListPlot[{Callout[data1, "0.2", Above], Callout[data2, "0.5", Above],
  Callout[data3, "0.7", Above]}, options]

Out[2]=

In[3]:=

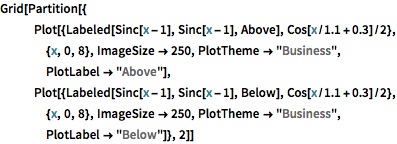

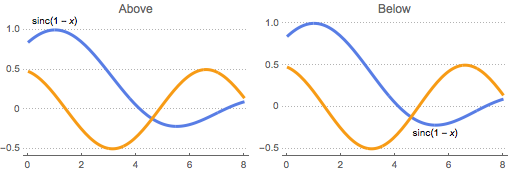

Grid[Partition[{
   Plot[{Labeled[Sinc[x - 1], Sinc[x - 1], Above],
     Cos[x/1.1 + 0.3]/2}, {x, 0, 8}, ImageSize -> 250,
    PlotTheme -> "Business", PlotLabel -> "Above"],
   Plot[{Labeled[Sinc[x - 1], Sinc[x - 1], Below],
     Cos[x/1.1 + 0.3]/2}, {x, 0, 8}, ImageSize -> 250,
    PlotTheme -> "Business", PlotLabel -> "Below"]}, 2]]

Out[3]=

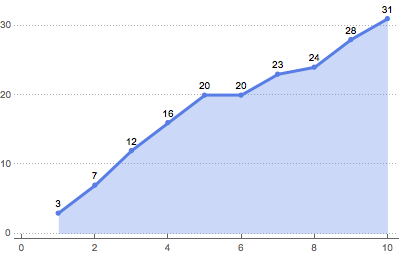

A position can be used as a LabelingFunction to automatically place labels.

In[4]:=

data = Accumulate@Table[RandomInteger[5], 10];
ListLinePlot[data -> data, LabelingFunction -> Top,
 PlotMarkers -> Automatic, Filling -> Axis, PlotTheme -> "Business"]

Out[4]=
